Assembly
Assembly requires the included allen wrench and phillips screwdriver.
Do not plug in the power cord until all assembly steps are completed.
6

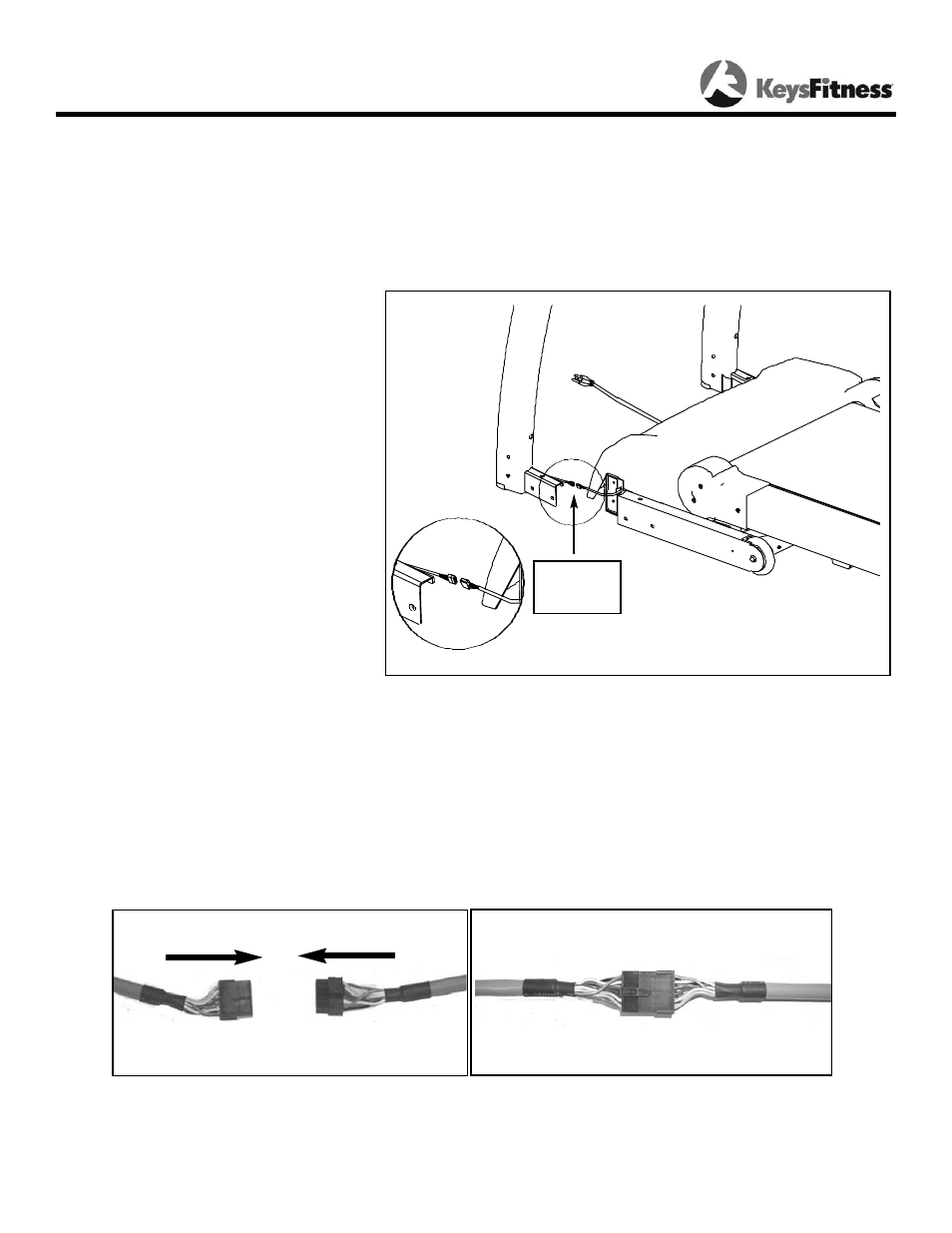

Figure 1: Console Harness Location
Figure 2: Console Harness Connection
1. With the treadmill deck in the down
position, leave the unit on the original
packing material to assemble all parts.
Caution:
Make sure harness is installed inside the upright and pay attention not to pinch the wire harness.
2. Connect the console harness together.
One side of harness is located near the
motor cover on the bottom left side. The
other end is located inside the Left
Upright assembly. See Figure 1 and 2.
3. Pull the wiring harness from top of
upright tube making sure harness connec-
tors are pulled into large hole at bottom
of upright.
CONSOLE
HARNESS
