Setup and Installation
4
4.2 Connections on the VGA/Audio Transmitter
The single-port units with audio support video and audio signals over CAT 5
cable. The audio signal is line-level audio, and powered speakers are
required. Figure 1 shows the Kramer Cobra transmitter with Audio
Transmitter connections, and Figure 2 shows the Kramer Cobra R500A
Video-Audio receiver.

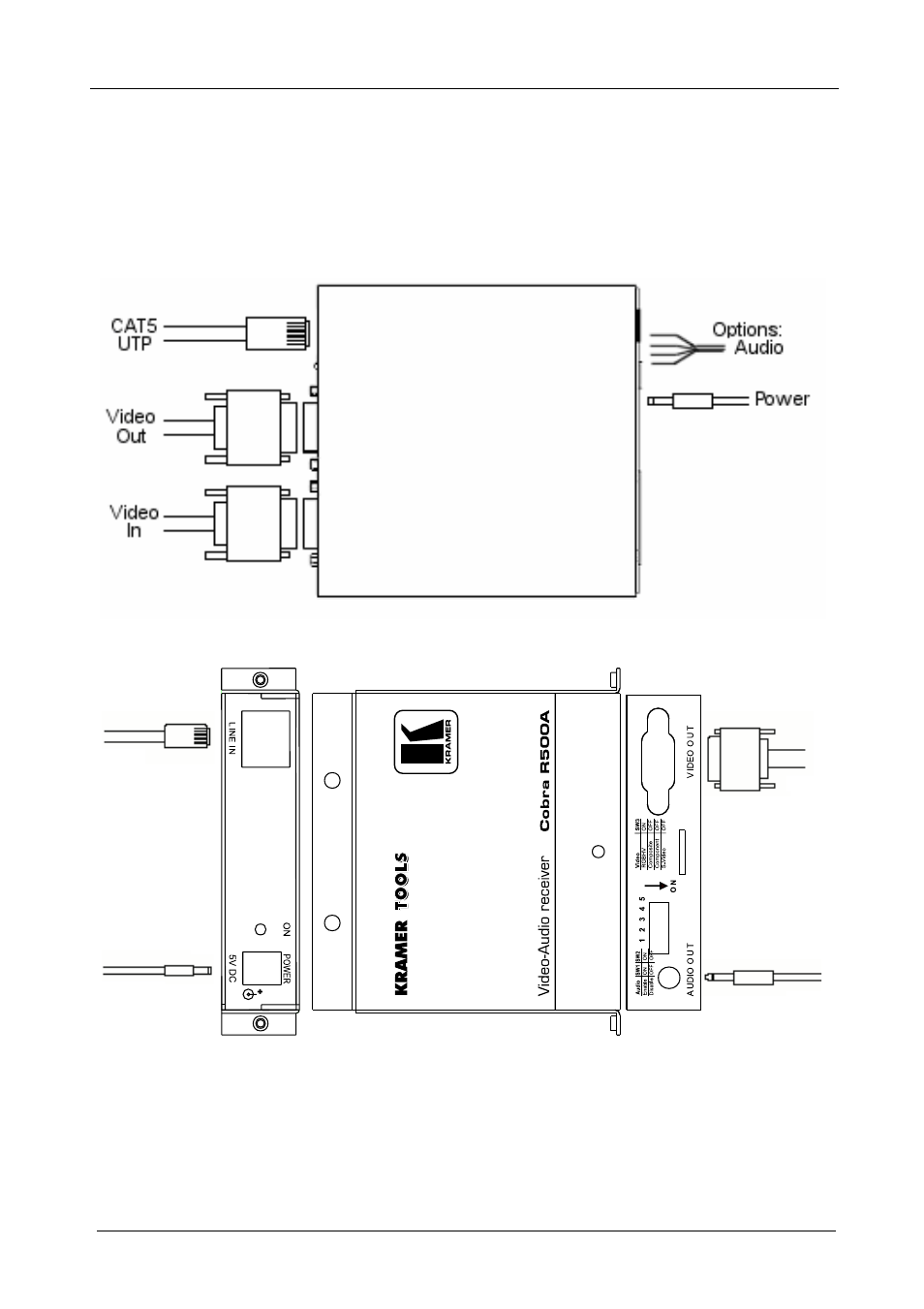

Figure 1: Transmitter Connections
Figure 2: Cobra R500A Video-Audio receiver Connections
