4.Place rubber seal on hood venting area; make sure the openings on rubber seal are aligned
with openings in vent area. Shown in Figure 7. Align plastic damper on rubber seal and
attach to hood using eight 4x20 mm screws (provided). Refer to Figure 8
5.If necessary, remove the two rubber stands at the back of the
hood. For a more secure installation, KOBE recommends not
removing the rubber stands.
6.Using references in Table 1 and Measurement & Diagrams on
page 14, mark the leveling line for hood-mounting bracket.
Secure hood-mounting bracket to wall with screws (not provided).
Refer to Figure 9.
7.Align hood to the hood-mounting bracket on the wall and hook
hood into place as shown in Figure 10 & 11. CAUTION: MAKE
SURE THE HOOD IS SECURE BEFORE RELEASING.
8.For safety purposes, install the safety bracket (provided) with one
screw (not provided) to the wall as shown in Figure 12.

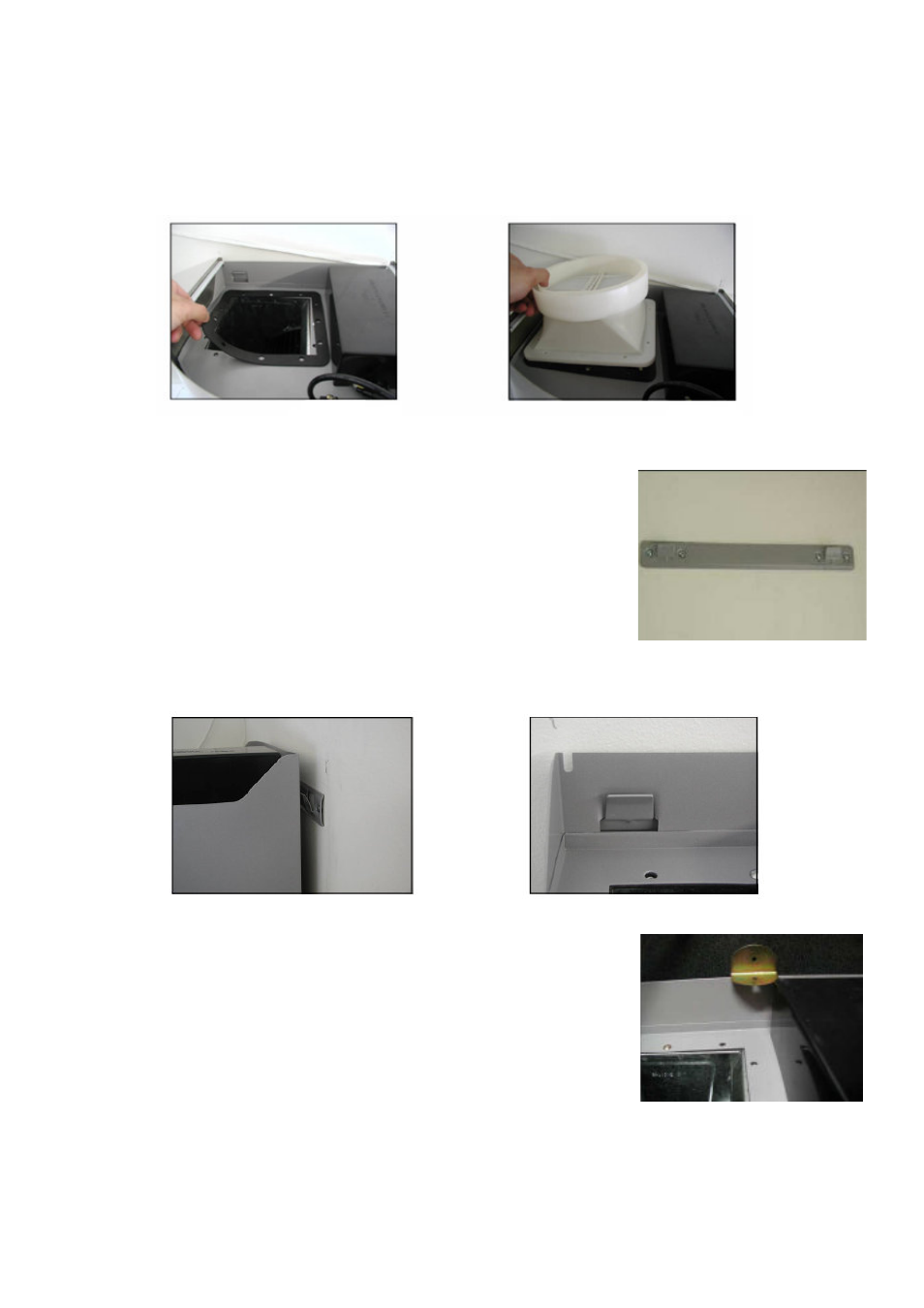

Figure 12
Figure 9
Figure7 Figure 8
Figure 10 Figure 11
