Appendix A Pin Assignments
15
EtheRx User’s Guide - Rev. B00
Kingston Technology Company
Appendix A Pin Assignments
UTP Pin Assignments
UTP Ports use RJ-45 Unshielded Twisted Pair (UTP) cabling. Cable Pin
Numbers and Pin Wiring Assignments are listed below in Figure A-1 and Table
A-2, respectively. Twisted-Pair cables can be wired with either Straight-
Through or Crossover pin assignments. Both wiring schemes are mentioned in
"Appendix B Cable Connections" for reference in creating a twisted-pair cable.
BNC
AUI
16
15
14
1 2 3 4 5 6 7 8

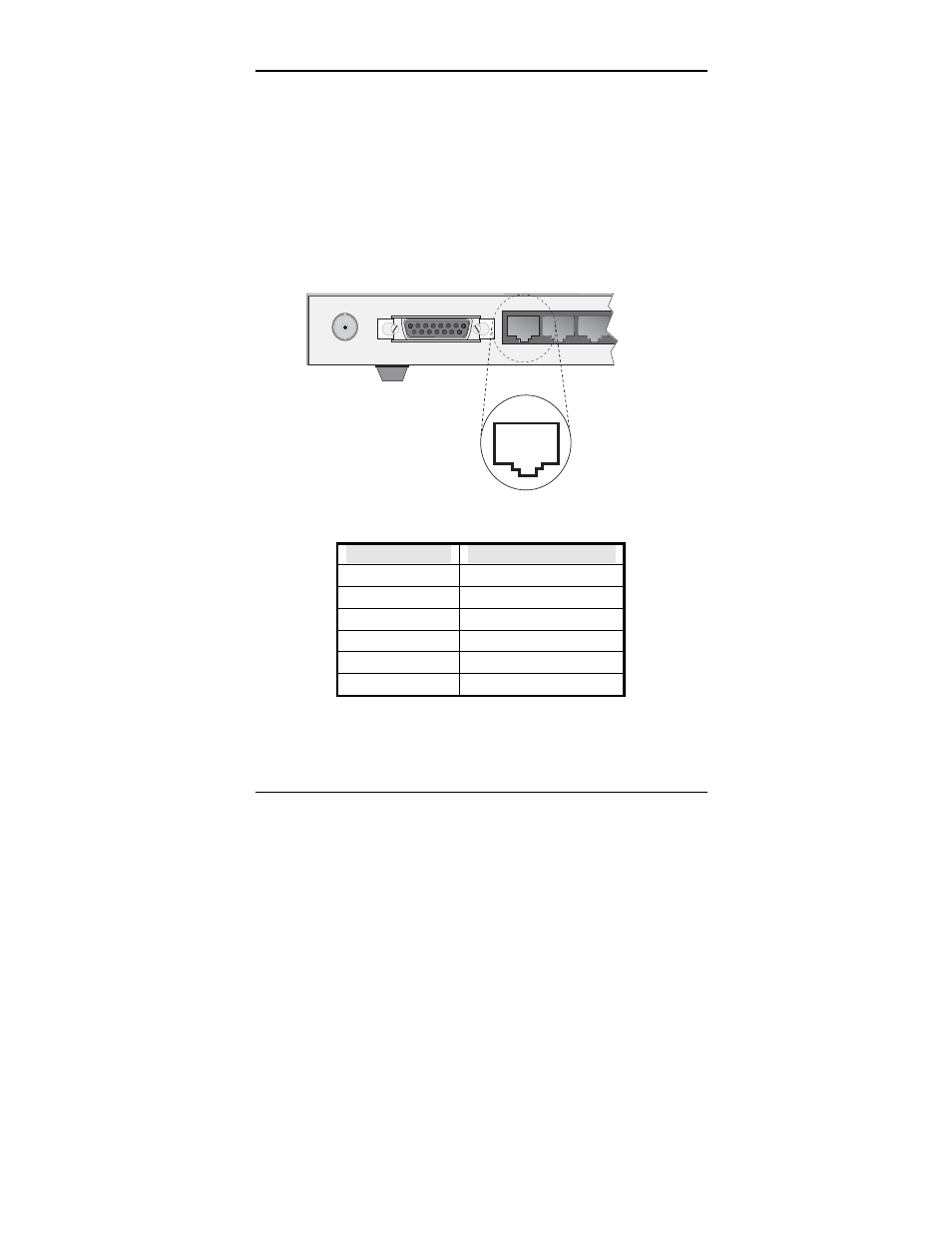

Fig. A-1 RJ-45 Connector Pin Numbers
Pin Number
Function
1
Transmit Data +
2
Transmit Data -
3
Receive Data +
4,5 Not
Used
6
Receive Data -
7,8 Not
Used
Table A-2 UTP Pin Assignments
