6 | DNX7320/DDX7032/DDX7032M

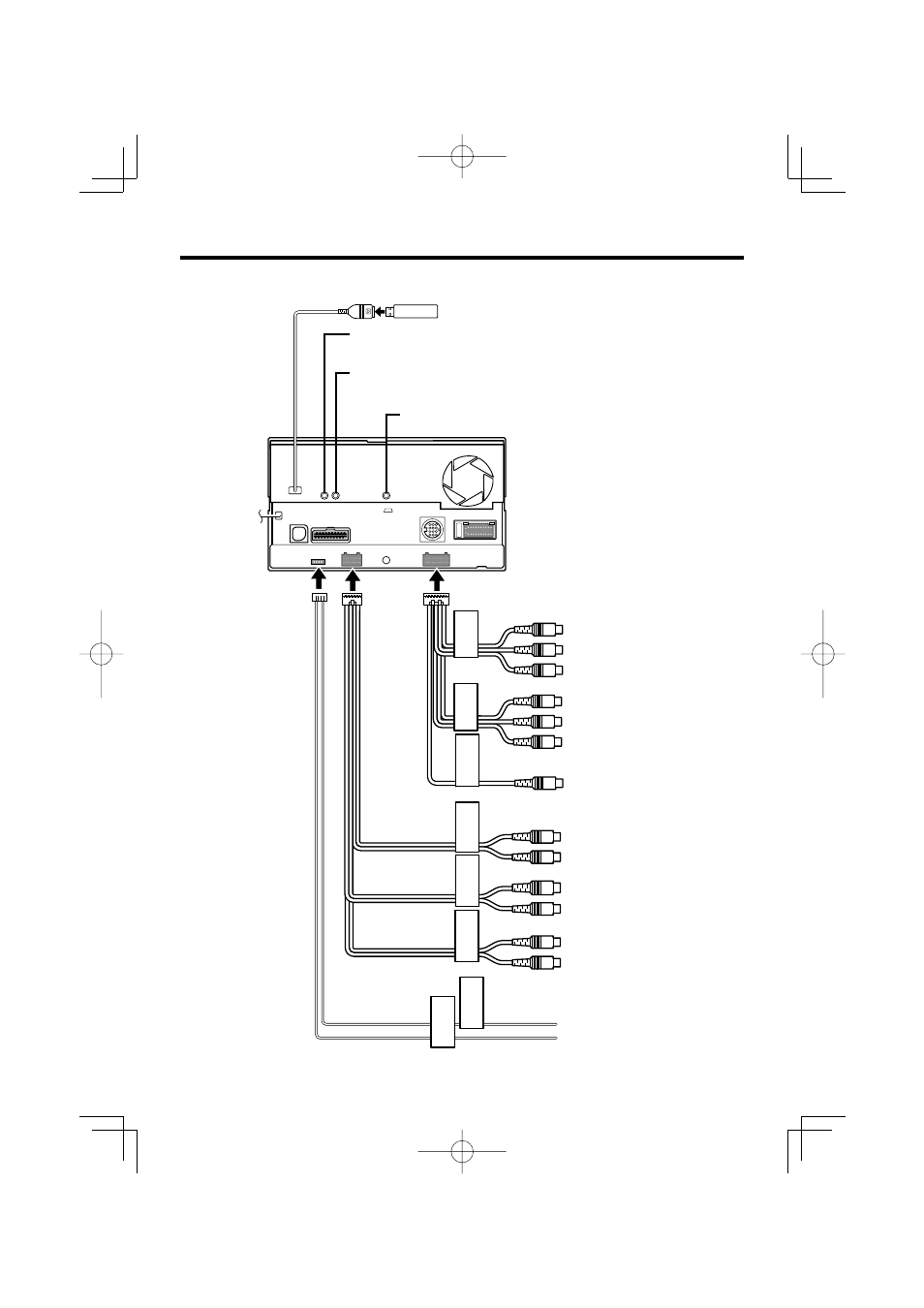

System Connection
CAMERA
REAR VIEW
A
V
IN1
FR
ONT
REAR
W
OOFER SUB
RELA
Y 2 RELA
Y 1
A
V
OUT
■ Front Preout
• Audio left output (White)
• Audio right output (Red)
■ Rear Preout
• Audio left output (White)
• Audio right output (Red)
■ Subwoofer Preout
• Audio left output (White)
• Audio right output (Red)
■ Rear View Camera Input
• Video input (Yellow)
■ Audio/Video Input1
• Video input (Yellow)
• Audio left input (White)
• Audio right input (Red)
■ Audio/Video Output
• Video output (Yellow)
• Audio left output (White)
• Audio right output (Red)
To Relay Box
Accessory
2
USB terminal
USB device
(commercially available)
■ Video Input2
Resistance-free mini plug
■ Audio Input2
Resistance-free stereo type mini plug
Accessory
3 Accessory 4
Do not connect.
