6 7

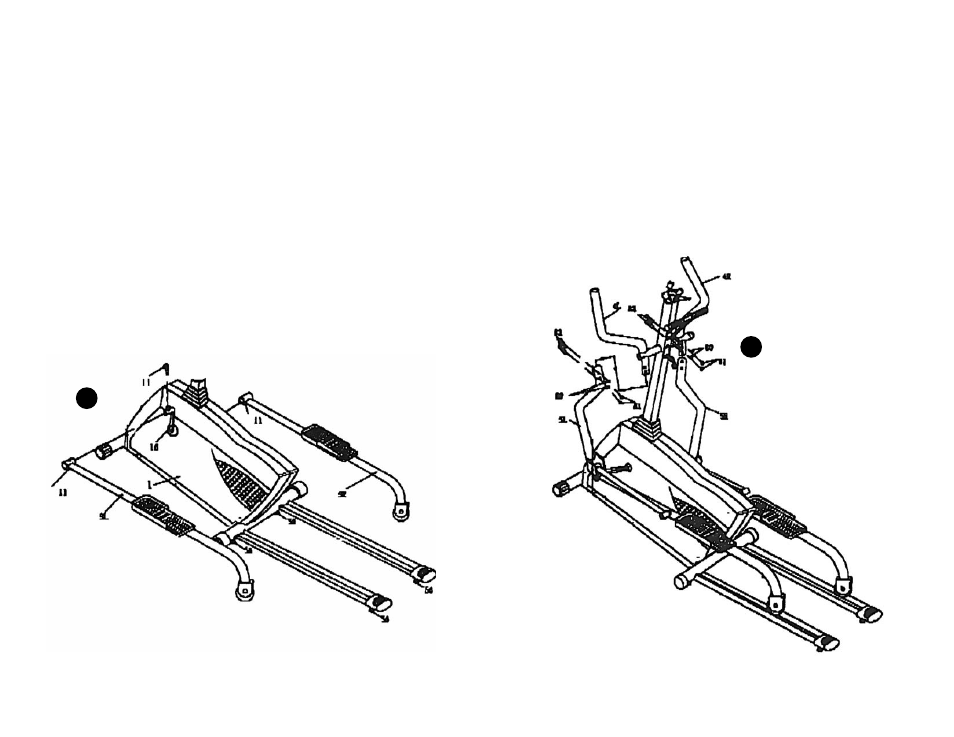

3. STEP 3 MUST BE COMPLETED BEFORE MOVING TO
STEP 4 IN ORDER FOR THE HANDLEBAR ASSEM-
BLY TO LINE UP CORRECTLY!
Assemble the Pedal Mount Tubes (9R, 9L) onto the Crank
(16). Rotate the Crank (16) on the left side to its highest posi-
tion, loosen the Bolt (11) from the top of the Crank (16), then
slide the left Pedal Mount Tube (9L) onto the left side of the
Crank (16) and attach with Bolts (11). Repeat this process on
the right side of the elliptical trainer.
3
3
4. Attach the Upper Handlebar (4L, 4R) to the Lower Handlebar
(5L, 5R) with four Carriage Bolts (82), four Nylock Nuts (81)
and four Arc Washers (80).
