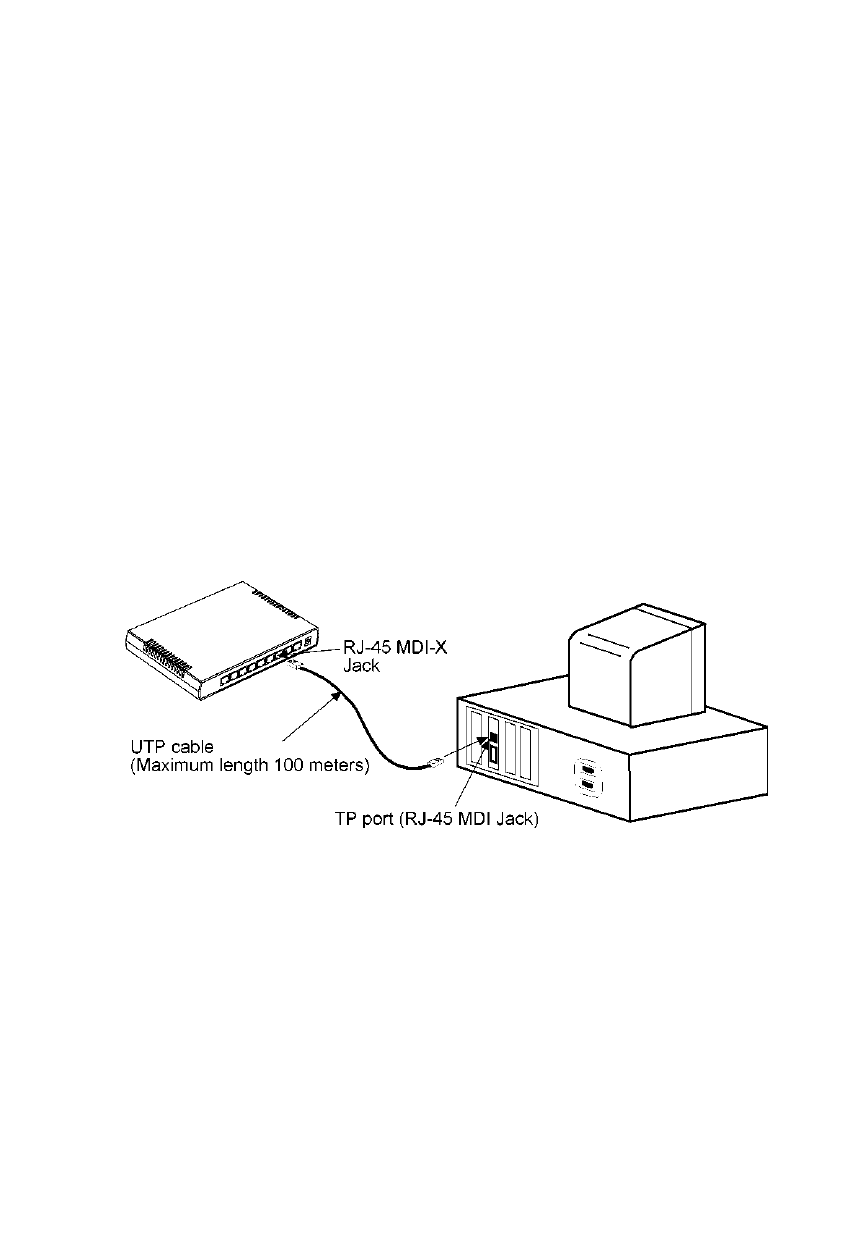

Connecting to an Ethernet Node
To connect the hub to a 10Base-T Ethernet node, follow these steps:
1. Select an appropriate length of 10Base-T UTP cable for the
connection.
2. Connect one end of the UTP cable to the MDI jack on the
remote device (e.g., a PC equipped with 10Base-T Ethernet
adapter).
3. Connect the other end of the UTP cable to an available MDI-X
jack on the hub. It is better to reserve jack #8 for a connection to
another hub.
Make sure that the connector on the cable is wired appropriately for
the standard 10Base-T node. The 'straight through' connection should
be made from the node through the cable and connectors to the hub.
Refer to Appendix 'RJ-45 Jack Pin Assignments' for the information
of UTP wire pairs.
Hub to Hub Connection via UTP Cable
