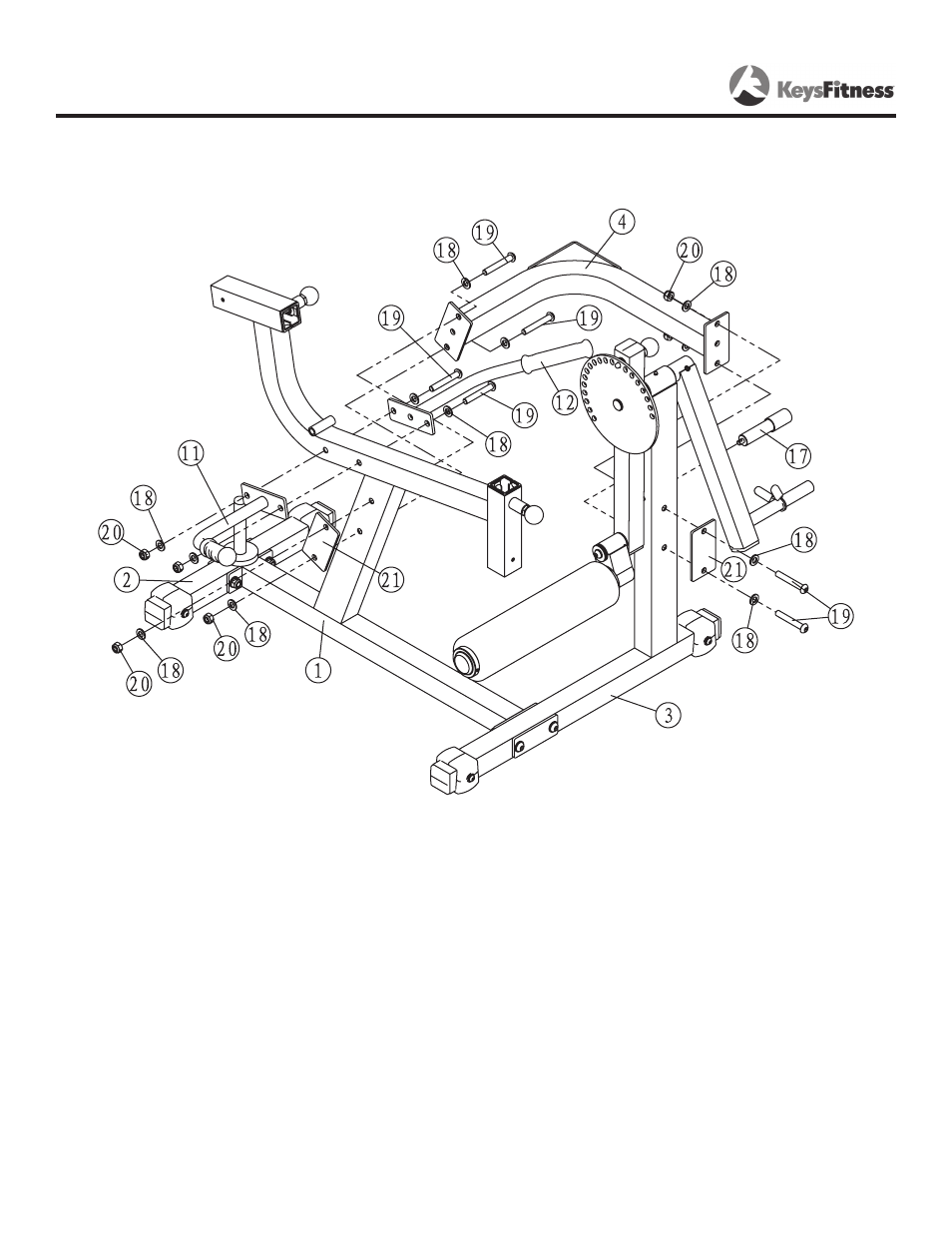

STEP 3

Attach Right and Left Handles (11,1) using:

x (19) Bolt

4 x (18) Washer

x (0) Nylon Lock Nut

STEP 4

Attach Side Angle Frame (4) using:

4 x (19) Bolt

8 x (18) Washer

4 x (0) Nylon Lock Nut

x (1) Plate

STEP 5

Slide Stopper Prone (17) into Front Frame for range of

motion limiter.

8

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Assembly
