Step 8, Assembly – Keys Fitness Leg Machine KF-LEGM User Manual

Page 10

background image

STEP 8

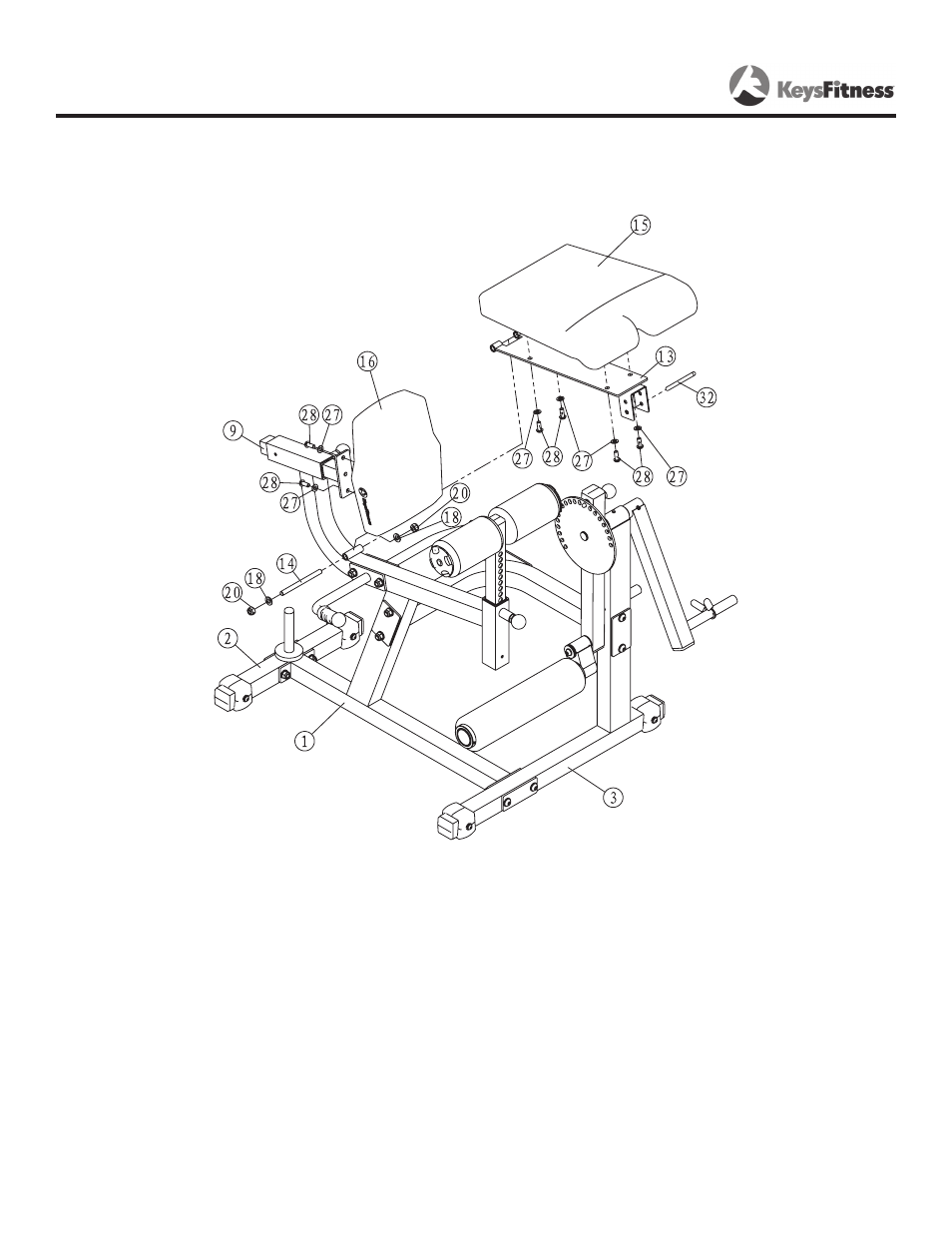

Attach Back Pad (1) using:

x (8) Bolt

x (7) Washer

Connect Seat Pad (15) to Adjustable Seat Bracket (13)

using:

4 x (8) Bolt

4 x (7) Washer

Connect Adjustable Seat Bracket (13) to frame as shown

using:

1 x (14) Shaft with Screw End x (18) Washer

x (0) Nylon Lock Nut

1 x (3) L Pin

10

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Assembly
