Kicker DC12 - Manual (Page 3)

VC12
4
95.3
300 (150)
11 9/16 (29.4)
14 13/16 (37.6)
16 (40.6)
17 1/2 (44.5)
4 5 COMPSUBWOOFERENCLOSURE
INST
ALLA
TION
Note: The use of a subsonic filter will significantly increase the power handling. The power handling specifications in these charts are
calculated using a 25Hz, 24dB per octave subsonic filter. Measurements based on 4 ohm voice coil models. All specifications and
performance figures are subject to change. Please visit the www.kicker.com for the most current information.
PERFORMANCE
TCVented
The TC Series vented enclosure combines KICKER’s award winning line of subwoofers with computer-
modeled and human fine-tuned enclosures to offer a level of bass performance never before thought
possible from a commercially available, ready-to-install subwoofer system. The TC Series enclosure is
available with a pre-loaded 10 inch Comp.
The Kicker TC Series enclosure is designed to fit behind the seat of a pickup truck, coupe or wherever
space is limited. This design is engineered to provide the best bass response when firing into the back
of the seat. The vent opening in this enclosure can not be obstructed. At some frequencies most of the
bass will come out of the vent. Therefore we recommend you leave at least four inches (10cm) of clear
space around the vent.
Plug your subwoofer speaker wire into the terminals, using the red connector as positive and the black
connector as negative. Hook the other end of the wire to your subwoofer amplifier in accordance with
its owner's manual.
Seat
Floor Board
Door
Frame
Figure 3
Model:
Nominal Impedance [Zn], ohm [per enclosure]
Sensitivity [SPLo], dB @ 1W, 1m
Power Handling Watts, Peak (RMS)
Enclosure Top Surface Depth, in (cm)
Enclosure Bottom Surface Depth, in (cm)
Enclosure Height, in (cm)
Enclosure Width, in (cm)
DC12
2 or 4
99.9
600 (300)
13 15/16 (35.4)
17 3/8 (44.1)
16 (40.6)
32 1/2 (82.6)
DC10
2 or 4
98.4
600 (300)
13 7/16 (34.1)
16 7/16 (41.8)
14 (35.6)
28 1/2 (72.4)
TC10
4
93.8
300 (150)
4 (10.2)
7 5/8 (19.4)
15 (38.1)
21 1/2 (54.6)
Performance
Model:
Nominal Impedance [Zn], ohm [per enclosure]
Sensitivity [SPLo], dB @ 1W, 1m
Power Handling Watts, Peak (RMS)
Enclosure Top Surface Depth, in (cm)
Enclosure Bottom Surface Depth, in (cm)
Enclosure Height, in (cm)
Enclosure Width, in (cm)

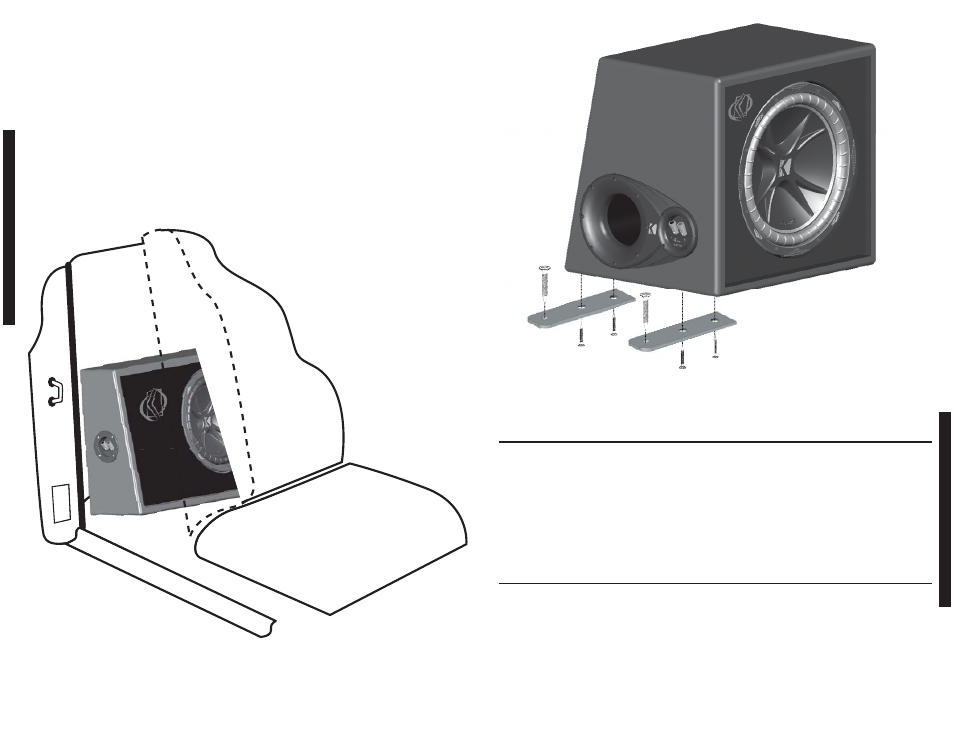

Mount Brackets to the bottom of the enclosure
using the supplied smaller screws. Securely
attach the enclosure to the vehicle with the
supplied larger screws. (VC Series is illustrated)
Figure 4
Pro Tip: You are one ZX Mono-
Amplifier and a few cables away
from a slamm’in system! The
Kicker ZX line of mono-amplifiers
make it easy to upgrade to rock-
solid bass with your existing or
stock source unit. Please ask
your dealer about the Kicker ZX
Amplifier upgrades.
Behind the seat
mounting, speaker
fires into the back
of the seat
(TC Series is
illustrated)
SafetyWarning
To avoid potential injury, or possible death, from forward movement of the enclosure during abrupt
stops or accidents, the enclosure must be properly installed and securely fastened to your vehicle. You
are solely responsible for securely fastening the enclosure in your vehicle.
Comp Subwoofer - Covered by one or more of the following patents:
U.S. Pat #'s 6,611,604, 6,731,773 D473,216, D456,386, D449,293,
D355,193, Taiwan Pat. #162,154; Other U.S. and foreign patents pending.
