RPD-1151/1158 User Manual
15

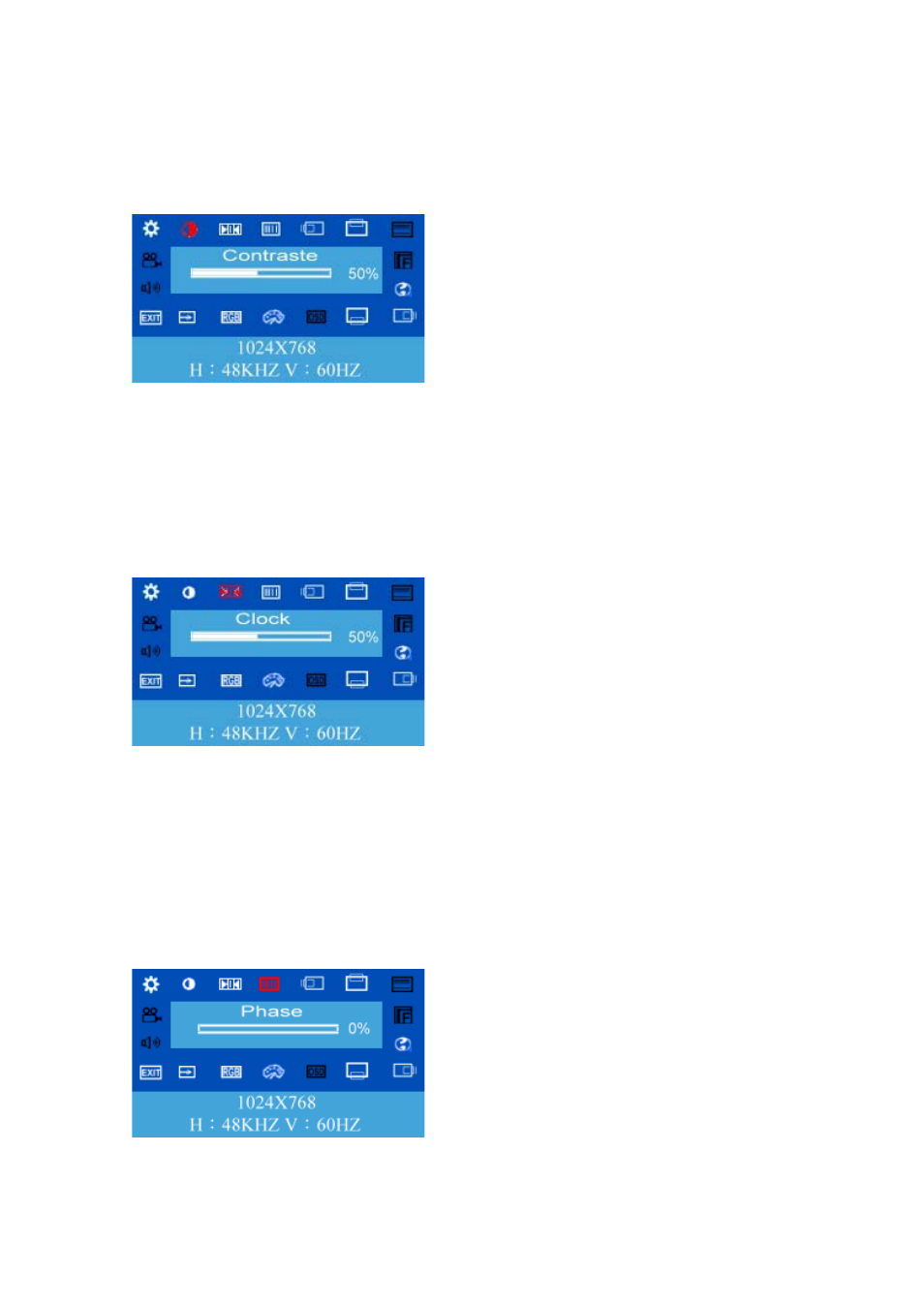

2.2.3 Contrast
1. Press the “menu” bottom.
2. Use
the
▼ and ▲ bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use
the
▼ and ▲ bottom to adjust the contrast of the display.
5. Press the “auto” button to exit.
2.2.4 Clock
1. Press the “menu” bottom.
2. Use
the
▼ and ▲ bottom to scroll.
3. Press the “menu” bottom to enter.
4. Use the ▼ and ▲ bottom to adjust the video distortion. It will appear
horizontal noise on the screen while adjust the clock.
5. Press the “auto” button to exit
2.2.5 Phase
1. Press the “menu” bottom.
2. Use the ▼ and ▲ bottom to scroll.
3. Press the “menu” bottom to enter
4. Use
the
▼ and ▲ bottom to adjust the video distortion. It will appear vertical
noise on the screen while adjust the phase.
