20 | KDV-S211P
M4 X 5mm
REMO TE
M4 X 5mm

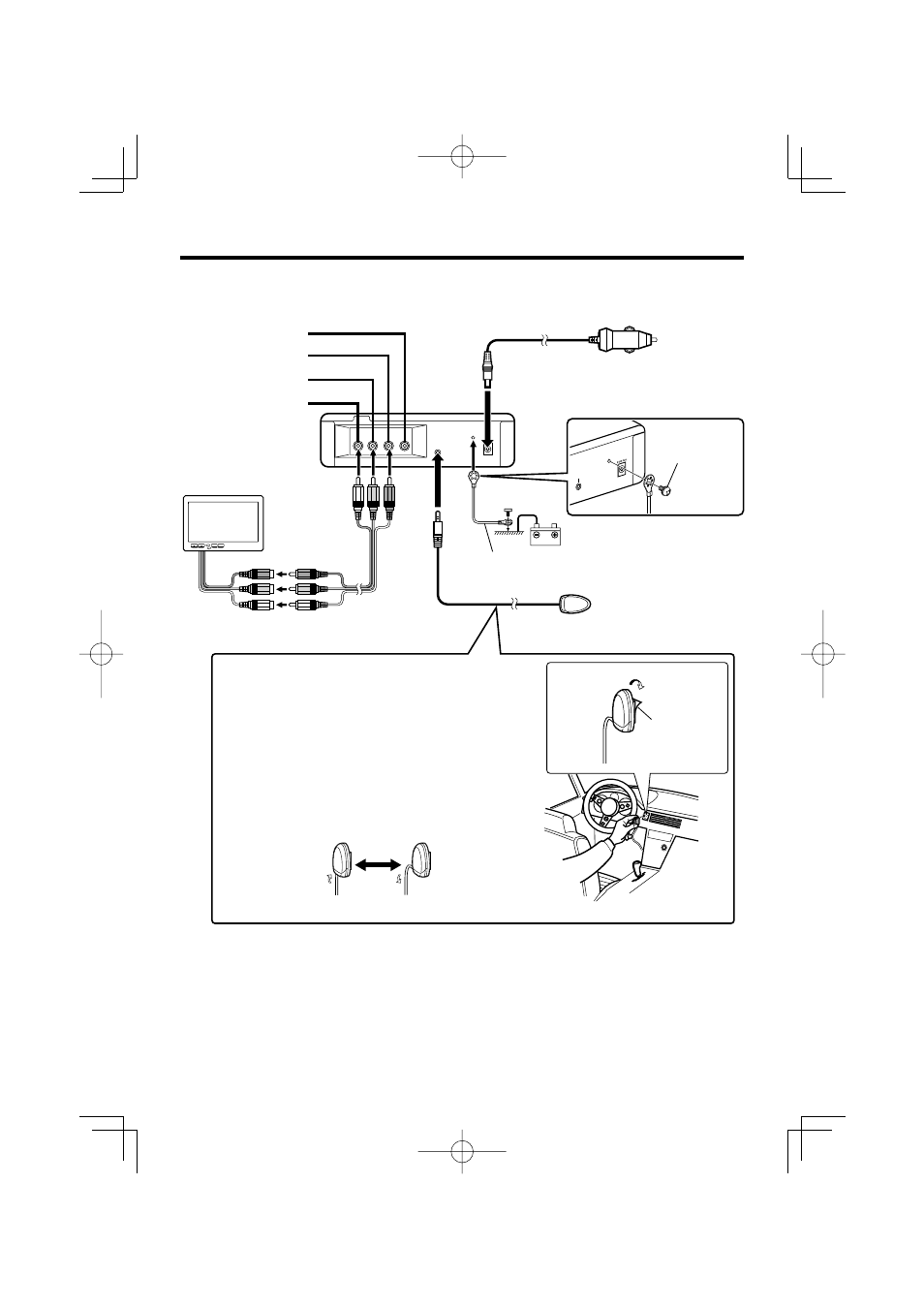

Connecting Wires to Terminals
Backing paper
Remote Control Sensor 2
To Cigarette
Lighter Socket
Attaching Remote Control Sensor
1 Remove the backing paper from the Velcro tape on the
back of the Remote Control Sensor.
2 After wiping off the dirt or oil from the attachment location,
attach the Remote Control Sensor.
⁄
• Wipe off the dirt or oil from the surface to which the Sensor is
attached.
• Avoid locations under direct sunlight or near the TV monitor where
signals from the remote controller are not received easily.
• You can change the direction of the remote control sensor cable.
DVD Player back view
Power Cable 1
Cigarette Lighter Plug
Fuse (5A) built in
Ground wire 7 (Black) - (To car chassis)
Semusu Screw 4
(M4 x 5 mm)
Battery
¤
• Connect the power cable 1 to the DVD player first, and
connect it to the cigarette lighter socket last. Connecting it
to the cigarette lighter socket first may blow the fuse.
AV Cable 8
TV Monitor
(Optional Accessory)
Video output (Yellow)
Audio left output (White)
Audio right output (Red)
Digital output
