Step 3, Assembly – Keys Fitness Cable Crossover KF-CC User Manual

Page 7

Text mode
Original mode

Step 3

NOTE: Before completing any other steps, you should position noth ends of the unit 1 ft
apart from each other to accommodate the Cross Tube (11). This will keep you from having to
move the unit once it is loaded with weights.

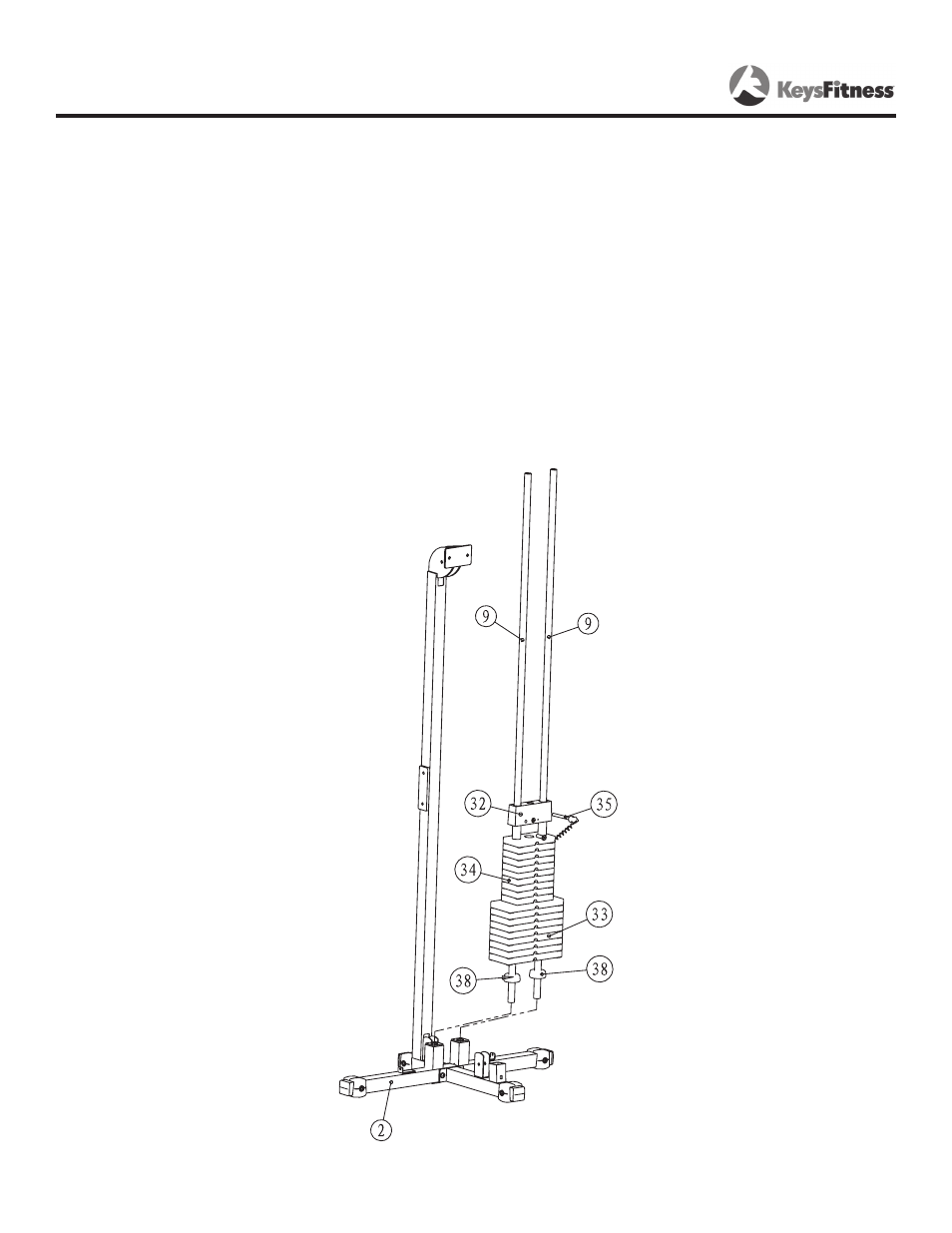

Slide Weight Bumpers (38) and Guide Rods (9) onto holes of Middle Base ().

Slide quantity 9 of the 10 lb. plates (33) onto guide rods. Then slide quantity 10 of the 5 lb.
plates (34) onto guide rods.

Slide Top Plate (3) onto top of weight stack. Insert Weight Pin (35)
Repeat STEP 3 on other side.

Assembly

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
