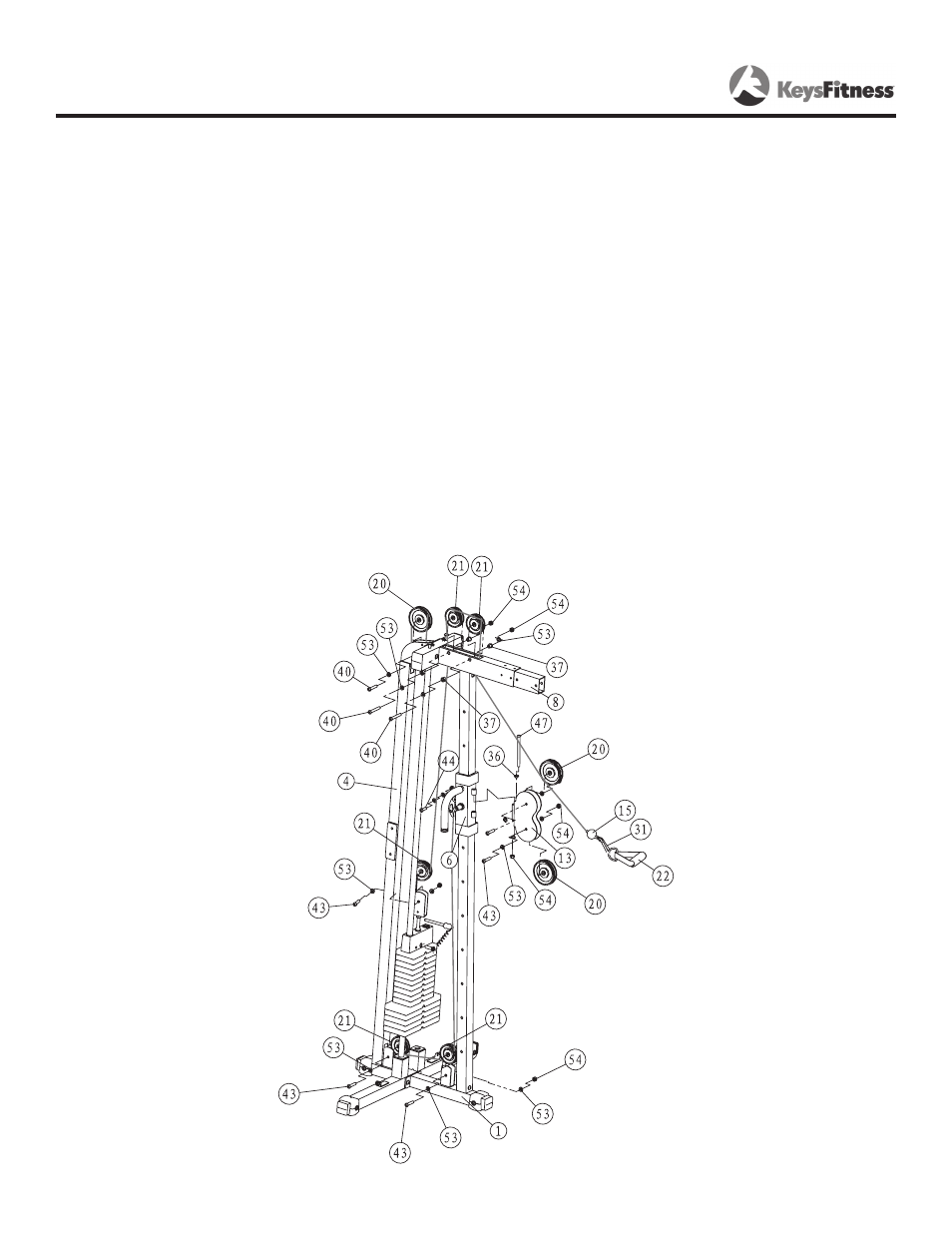

Step 7
Secure Big Pulleys (0) to Double Pulley Bracket (13) using Bolts (43), Washers (53), and
Nylon Lock Nuts (54).
Secure Double Pulley Bracket (13) to Left Slide Frame () using Bolt (4), Small Bushings (3)
and Nylon Lock Nuts (54).
Secure Big Pulleys (0) to unit using Bolts (40), Washers (53) and Nylon Lock Nuts (54).
Attach Small Pulleys (1) to unit using Bolts (40), Washers (53), Pulley Spacers (3) used on
the two pulleys on the Top Frame (8), and Nylon Lock Nuts (54).
Insert Cable (15) through the pulleys in the Double Pulley Bracket (13) and install as shown.
Secure cable end to Left Slide Frame () using Bolt (44), Washers (53) and Nylon Lock Nuts
(54).
Repeat for Right Side.
11
Assembly
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
