KAV–2250

Krell KAV–2250 and KAV–3250

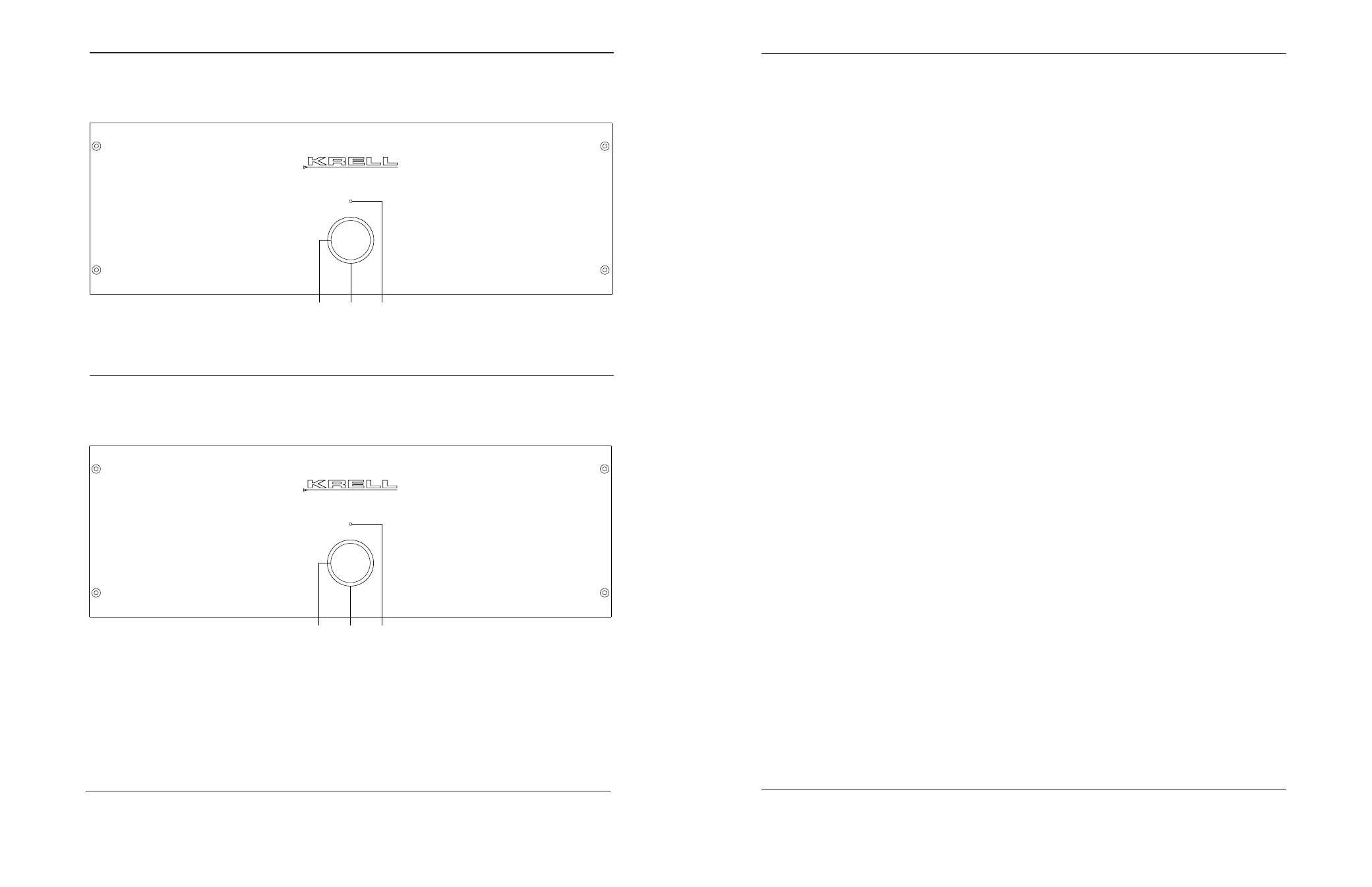

Figure 1 The KAV–2250 Front Panel

Figure 2 The KAV–3250 Front Panel

KAV–3250

1 Power Button
2 Stand-by LED
3 Power Indicator

Krell KAV–2250 and KAV–3250 19

Reconfiguration Options,

continued

Reconfiguring the KAV–2250 for MAT: Send One Input Signal
to Both Output Channels via Input 2

Not illustrated

To send the signal from a source device connected to input 2:

1. Push switch 2 up (on) for both input switch banks.

2. Push switch 1 down (off) for both input switch banks.

Reconfiguring the KAV–3250 for MAT: Send One Input Signal
to All Three Output Channels via Input 1

See Figure 7 on page 17

To send the signal from a source device connected to input 1:

1. Push switch 1 up (on) for all input switch banks.

2. Push switches 2 and 3 down (off) for all input switch banks.

Reconfiguring the KAV–3250 for MAT: Send One Input Signal
to All Three Output Channels via Any Input

Not illustrated

You can send the signal from any of the inputs, depending on your preference,
for example:

To send the signal from a source device connected to input 2:

1. Push switch 2 up (on) for all input switch banks.

2. Push switches 1 and 3 down (off) for all input switch banks.

To send the signal from a source device connected to input 3:

1. Push switch 3 up (on) for all input switch banks.

2. Push switches 1 and 2 down (off) for all input switch banks.
