36

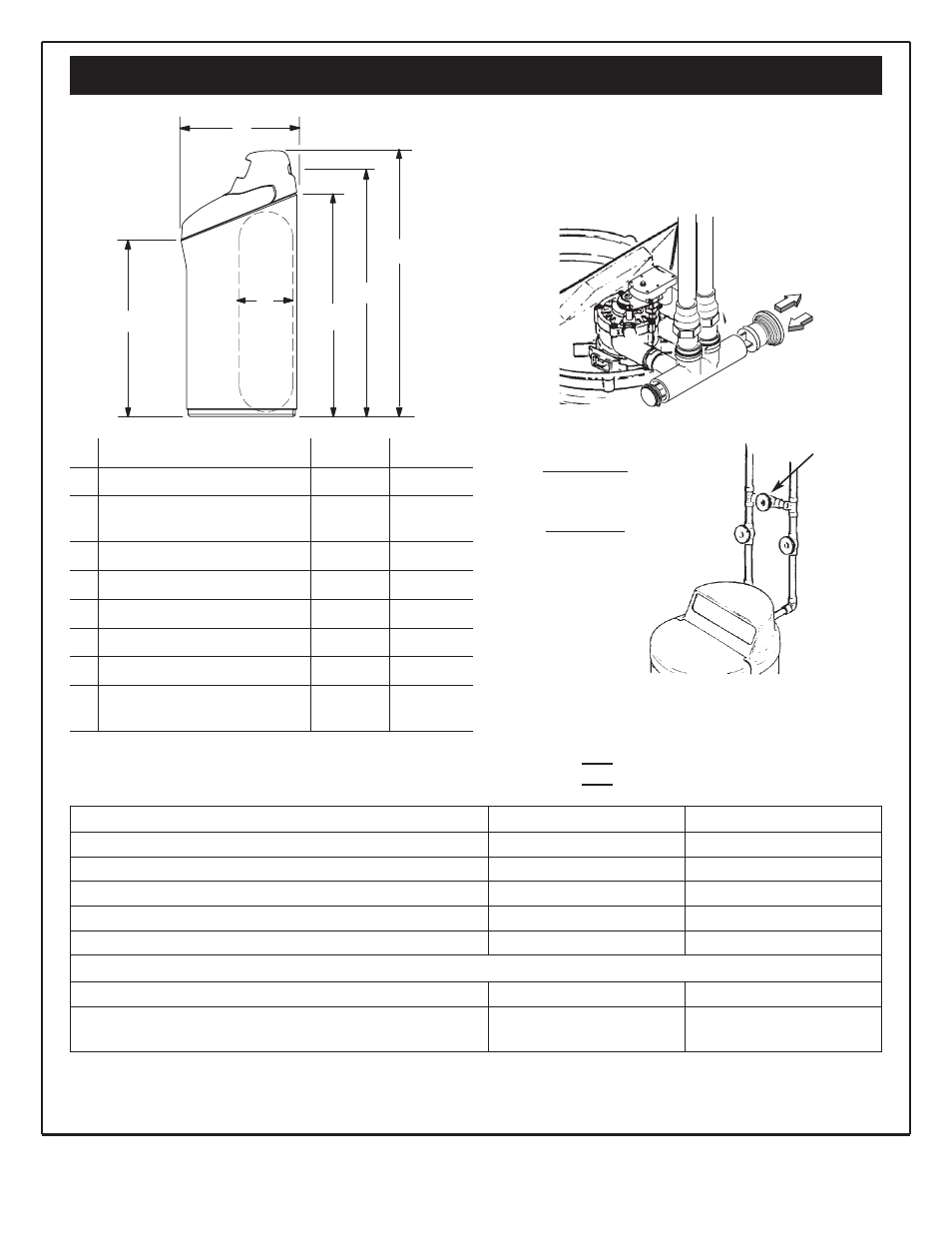

Specifications
FIG. 59
Questions? Call The Kenmore Water Line 1-800-426-9345
A A
B
C
D
E
F
Inches CM
A Salt Tank Height 34 86.4
B Resin Tank Diameter
(nominal) 10 25.4
C Resin Tank Height (nominal) 40 101.6
D Inlet-Outlet Height 41-1/2 105.4
E Overall Height 48 121.9
F 1 Length 21 53.3
F 2 Width 17 43.2
- Distance between inlet-outlet
centerlines 3-3/4 8.6
BYPASS VALVES
MODEL 384260 TIMER CODE H46
MODEL 394260 TIMER CODE H47
SINGLE BYPASS
3 VALVE BYPASS
Bypass valve(s) should always remain in soft water
service position. Position in “bypass” only if needed for
softener repairs.
pull stem
outward for
service
FOR SERVICE
close bypass valve
open inlet & outlet valves
FOR BYPASS
open bypass
close inlet & outlet
push
inward for
bypass
Inlet
valve
gpm = gallons per minute gpg = grains per gallon
psi = pounds per square inch ppm = parts per million
* Capacity to remove clear water iron is substantiated by WQA test data. State of Wisconsin requires additional treatment if water supply contains
greater than 5 ppm clear water iron.
Outlet
valve
Bypass
valve
WATER SUPPLY TO WATER SOFTENER MODEL 384260 MODEL 394260
Minimum water system flow (gpm) 3 3
Minimum-maximum water pressure (psi) 20 - 125 20 - 125
Minimum-maximum water temperature (°F) 40 - 120 40 - 120
Maximum water hardness (gpg) 160 160
Maximum “clear water” iron (ppm)* 11 11
SALT FOR WATER SOFTENER
Type of salt needed nugget nugget
Alternate type of salt pure, evaporated, compacted
water softener salt
pure, evaporated, compacted
water softener salt
