Removing monitor/player unit – Kenwood DNX7000EX User Manual
Page 11

English
|
11

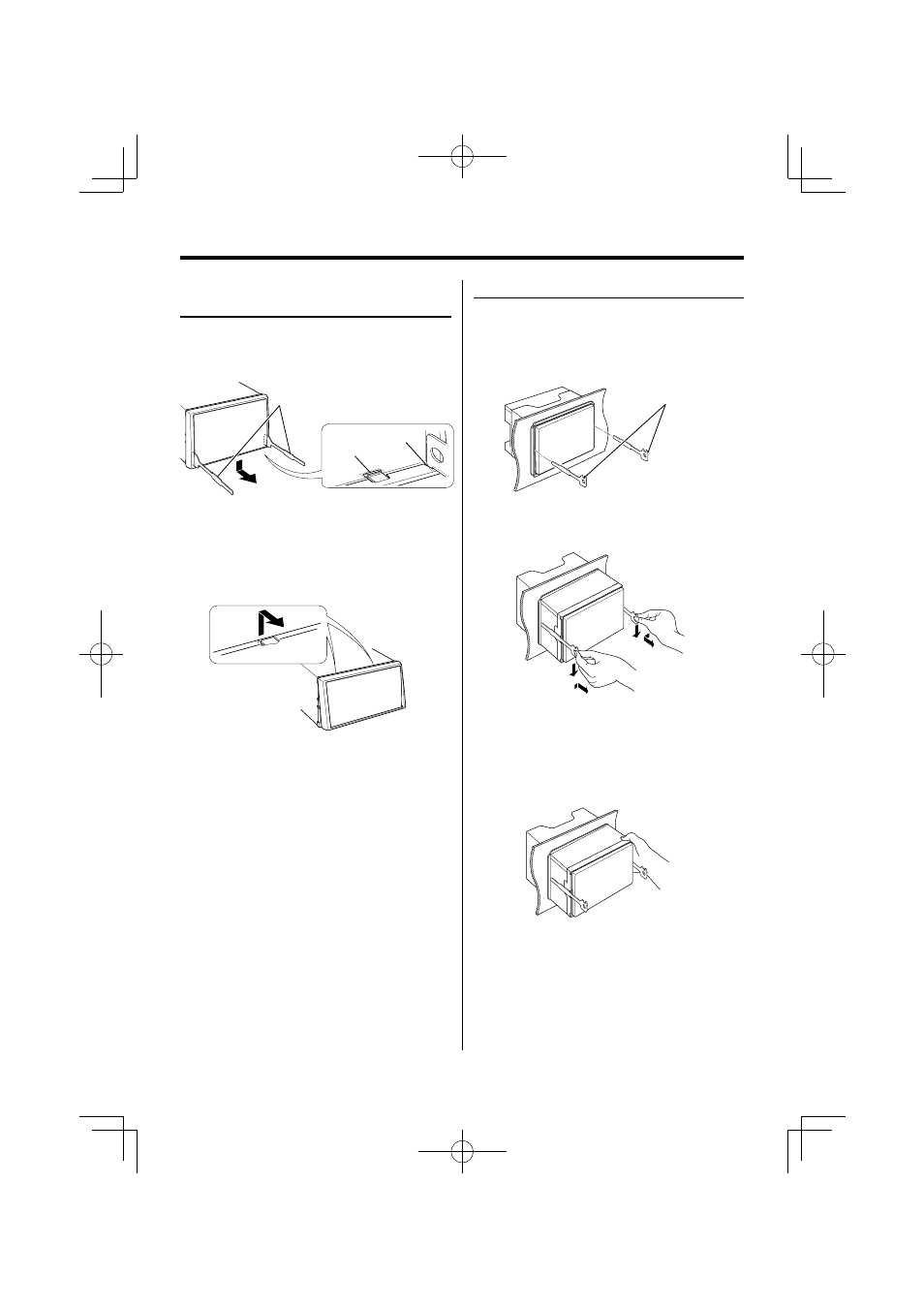

Removing the Hard Rubber Frame
(escutcheon)
1. Engage the catch pins on the removal tool
5 and
remove the two locks on the lower level.
Lower the frame and pull it forward as shown in
the figure.
Accessory
5
Lock
Catch
⁄
• The frame can be removed from the top side in the same
manner.
2. When the lower level is removed, remove the
upper two locations.
Removing the Unit
1. Remove the hard rubber frame by referring to the
removal procedure in the section
2. Insert the two removal tools
5 deeply into the
slots on each side, as shown.
Accessory
5
3. Lower the removal tool toward the bottom, and
pull out the unit halfway while pressing towards
the inside.
⁄
• Be careful to avoid injury from the catch pins on the
removal tool.
4. Pull the unit all the way out with your hands, being
careful not to drop it.
Removing Monitor/Player Unit
