10 Mbps Connection

For 10BASE-T Ethernet networks, the Fast Ethernet adapter uses

Category 3, 4, or 5 UTP cable. To establish a valid 10 Mbps connec-

tion, the cable must be connected to a 10BASE-T hub. Connect the

network cable as follows:

1. Make sure that the plug on the cable is wired appropriately for

a standard 10BASE-T adapter.

2. Align the RJ-45 plug on the end of the UTP cable with the

notch on the adapter's connector and insert it into the adapter

connector as shown in Figure 3-4.

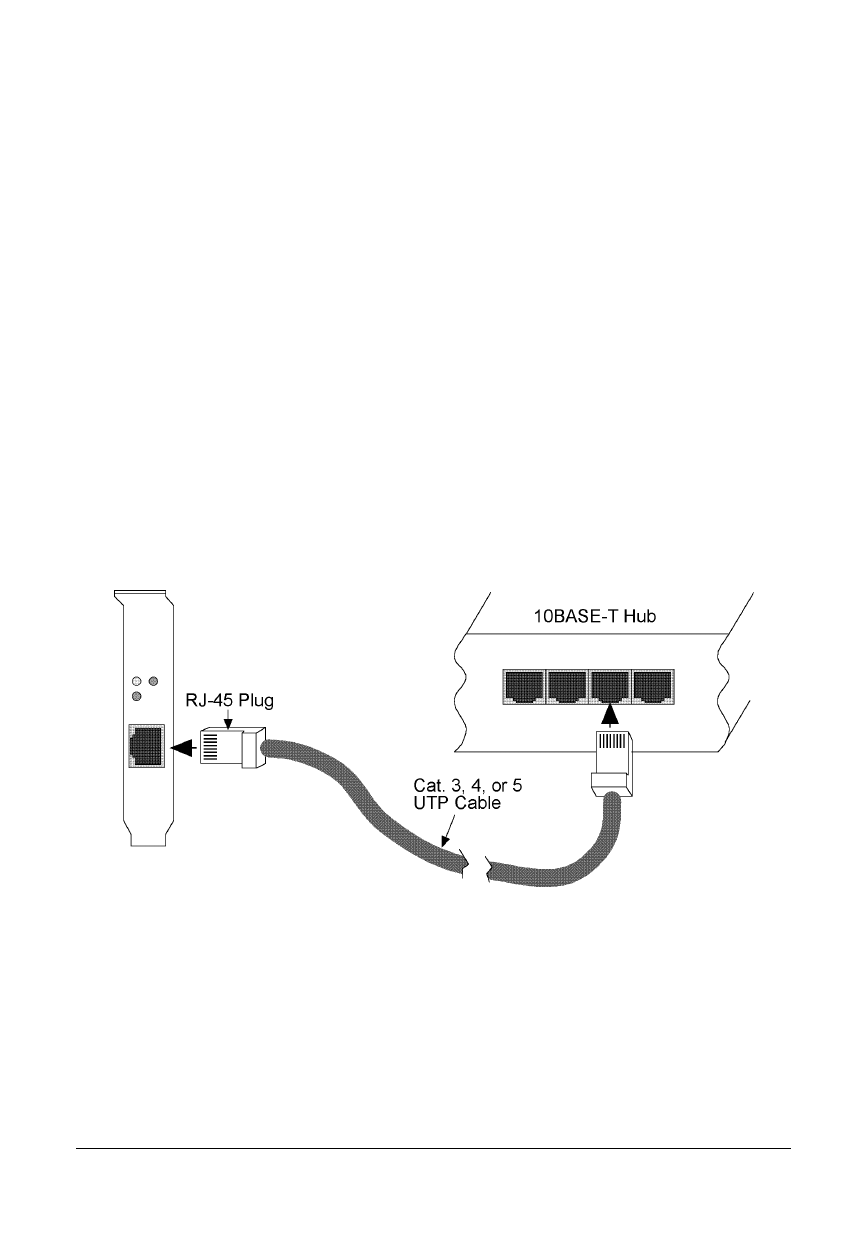

Figure 3-5 Connecting 10BASE-T Cable
