Sony DAV-DZ300 - Manual (Page 21)

Ge
tting Star
te
d
21 GB
First, perform the video connection, and then audio connection.
With your TV’s audio output connected to this system, you can listen to TV sound through the system
speakers.

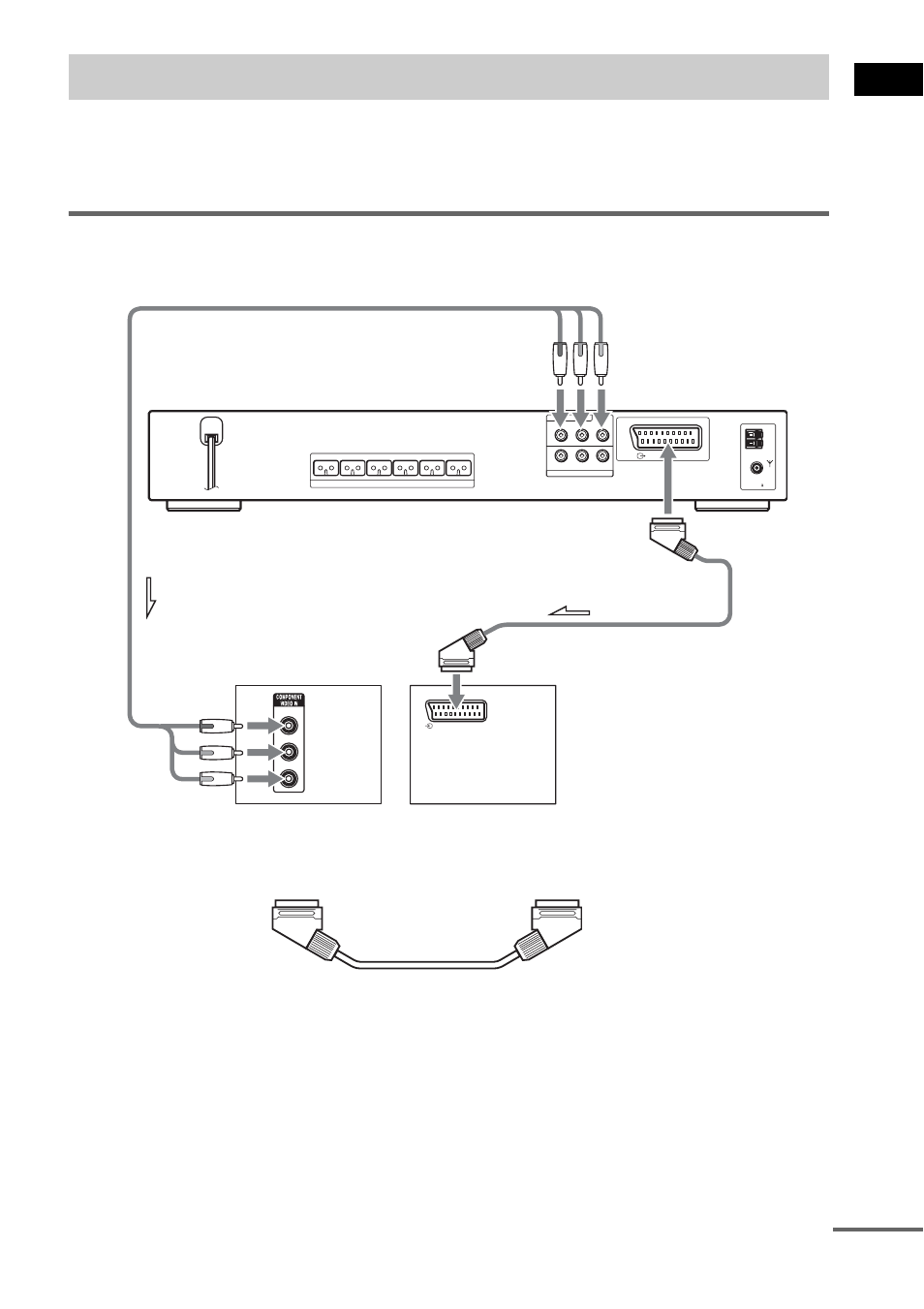

Connecting the video cords
Sends a played back DVD image to a TV.
Connect the system to your TV using the SCART (EURO AV) cord (not supplied).
Be sure to connect the SCART (EURO AV) cord to the EURO AV T OUTPUT (TO TV) jack on the
system.
When you connect using the SCART (EURO AV) cord, check that the TV conforms to S video or RGB
signals. If the TV conforms to S video, change the input mode of the TV to RGB signals. Refer to the
operating instructions supplied with the TV to be connected.
When connecting to a TV with the COMPONENT VIDEO IN jacks
Connect a component video cord (not supplied). To use the COMPONENT VIDEO OUT jacks (Y, P
B
/
C
B
, P
R
/C
R
), your TV monitor must be equipped with via COMPONENT VIDEO IN jacks (Y,P
B
/C
B
,
Step 3: TV Hookup
INPUT(FROM VIDEO)
EURO AV
Y
P B /C B
P R /C R
SPEAKER COAXIAL
FM 75
Y
R AUDIO IN VIDEO IN L
P B /C B P R /C R
DVD ONLY
SAT
COMPONENT VIDEO OUT EURO AV
OUTPUT(TO TV)
AM
FRONT R FRONT L SURR R SURR L CENTER WOOFER
TV
To EURO AV
T OUTPUT
(TO TV)
To EURO AV
t INPUT (FROM VIDEO)
To TV with COMPONENT
VIDEO IN
To COMPONENT
VIDEO OUT
TV with COMPONENT
VIDEO IN jacks
continued
