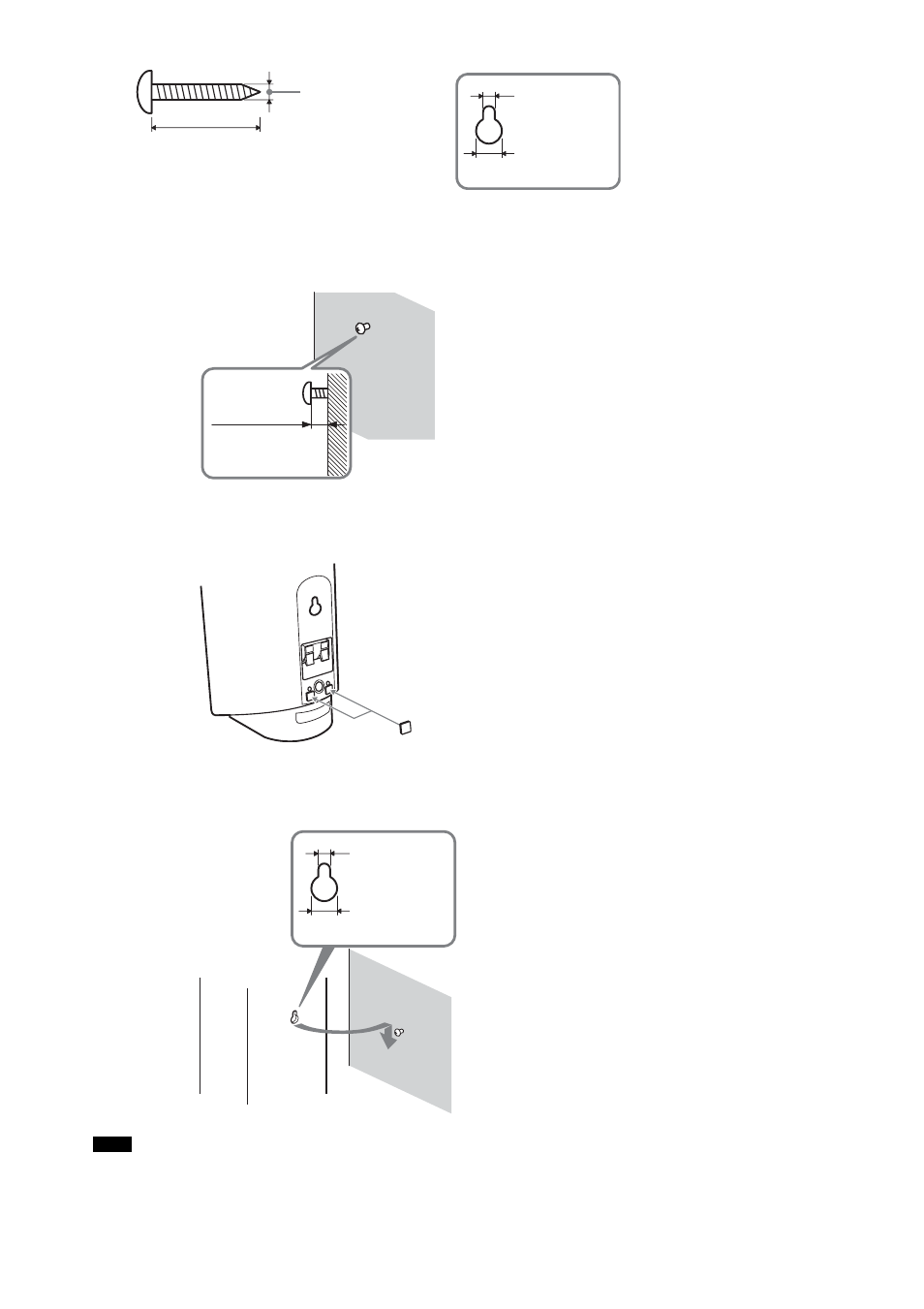

Fasten the screws to the wall.
The screws should protrude 8 to 9 mm (11/32 to 3/8 inch).
3
Attach the wall-mount pads on the rear side of the speaker.
4
Hang the speakers on the screws.
• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach
the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where
reinforcement is applied.
Note
25 mm (1 inch)
4 mm (
5
/
32
inch)
Hole on the back of
the speaker
4.6 mm
(
3
/
16
inch)
10 mm
(
13
/
32
inch)
8 to 9 mm
(
11
/
32
to
3
/
8
inch)
Wall-mount pads
(7 × 7 mm, 3 mm thick)
(
9
/
32
×
9
/
32
inch,
1
/
8
inch thick)
4.6 mm
(
3
/
16
inch)
10 mm
(
13
/
32
inch)
Hole on the back of
the speaker
