Layout

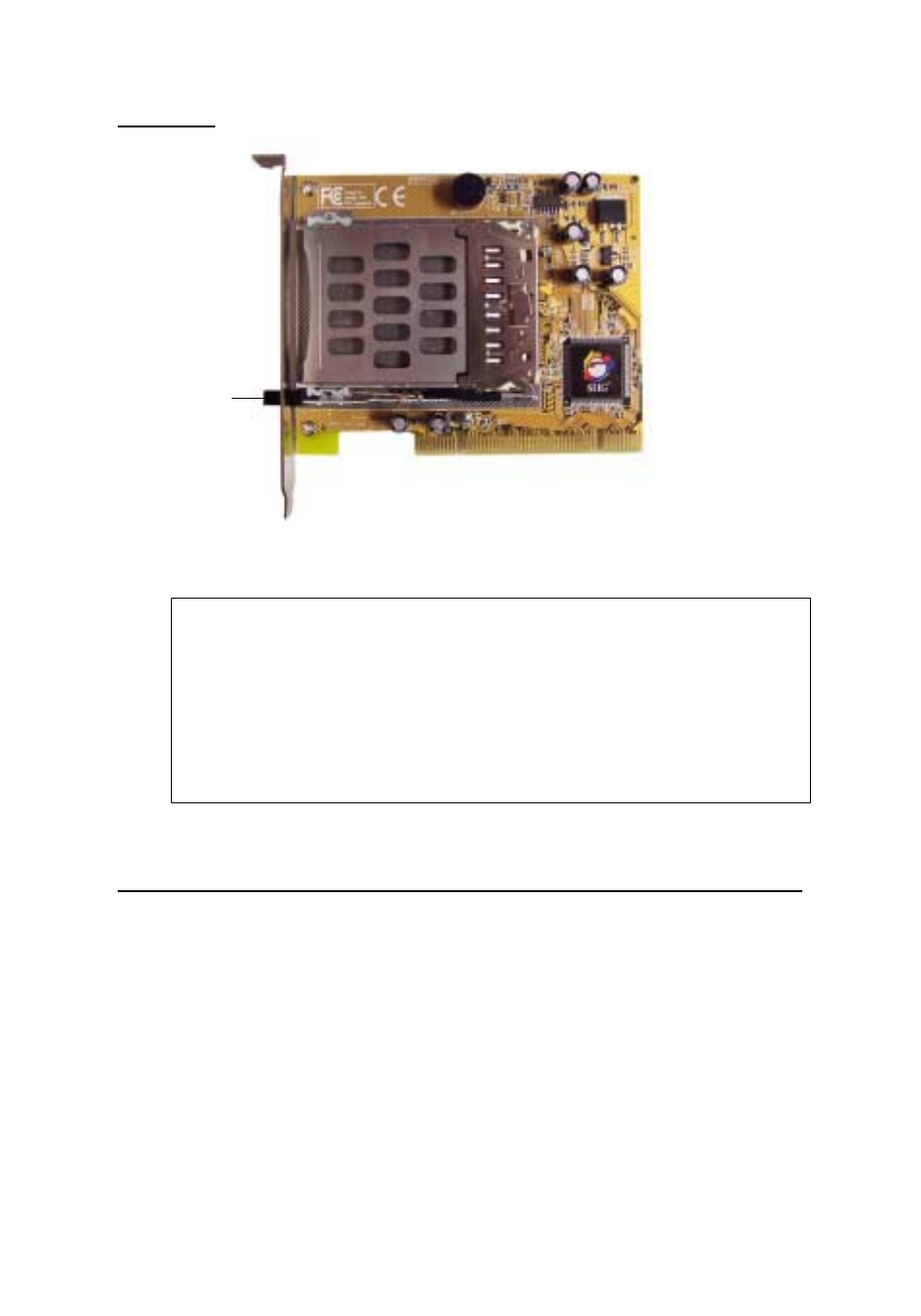

Figure 1. Layout
Note: The ejector lever can be placed in two positions,
locked and unlocked. When inserting a PC Card,
the lever can be in either position. However, the
lever must be in the unlocked position to eject a PC
Card. To unlock the lever, push it in until you hear
a click then release it.
Hardware Installation
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
1.
Turn OFF the power to your computer.
2. Unplug the power cord and remove your computer's
cover.
3. Remove the slot bracket from an available PCI slot.
Ejector lever
