5
14. Install the hose from the blower assembly
adapter to the hopper hood and secure using the
6-1/2" clamps.
15. Using the weight support bar (p/n 451517) as a
guide, identify the four corresponding mounting
holes, and the existing hardware that will need
to be removed in order to secure the weight
support bar to the front of the machine as
shown. See Figure 3-7.
16. Install one 7/16-14 x 1-3/4" hex head bolt into
each of the four mounting holes in the weight
support bar, and through the matching holes in
the caster support weldment. Secure this
assembly to the front of the machine using the
7/16- .5" x 1-1/4" x .083" flatwashers and the
7/16-14 elastic stop nuts. Torque hardware to
59 ft. lbs. See Figure 3-7.

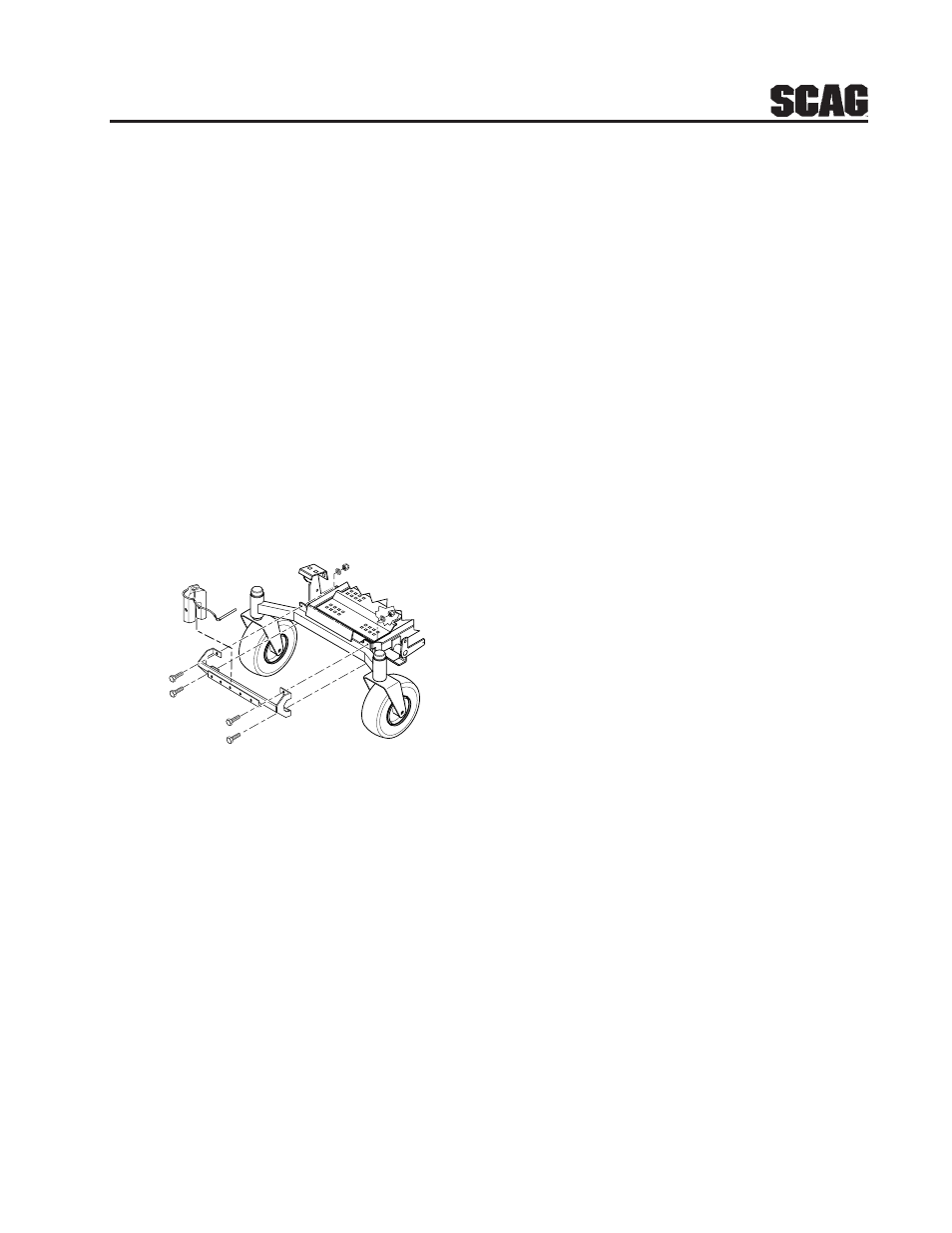

FIGURE 3-7
17. Operate and test.
