-7-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
! WARNING
Circular Saws
AUXILIARY
HANDLE
UPPER
GUARD
LOWER
GUARD
LOWER GUARD
LIFT LEVER
FOOT
DEPTH
ADJUSTMENT
LEVER
BEVEL
ADJUSTMENT
LEVER

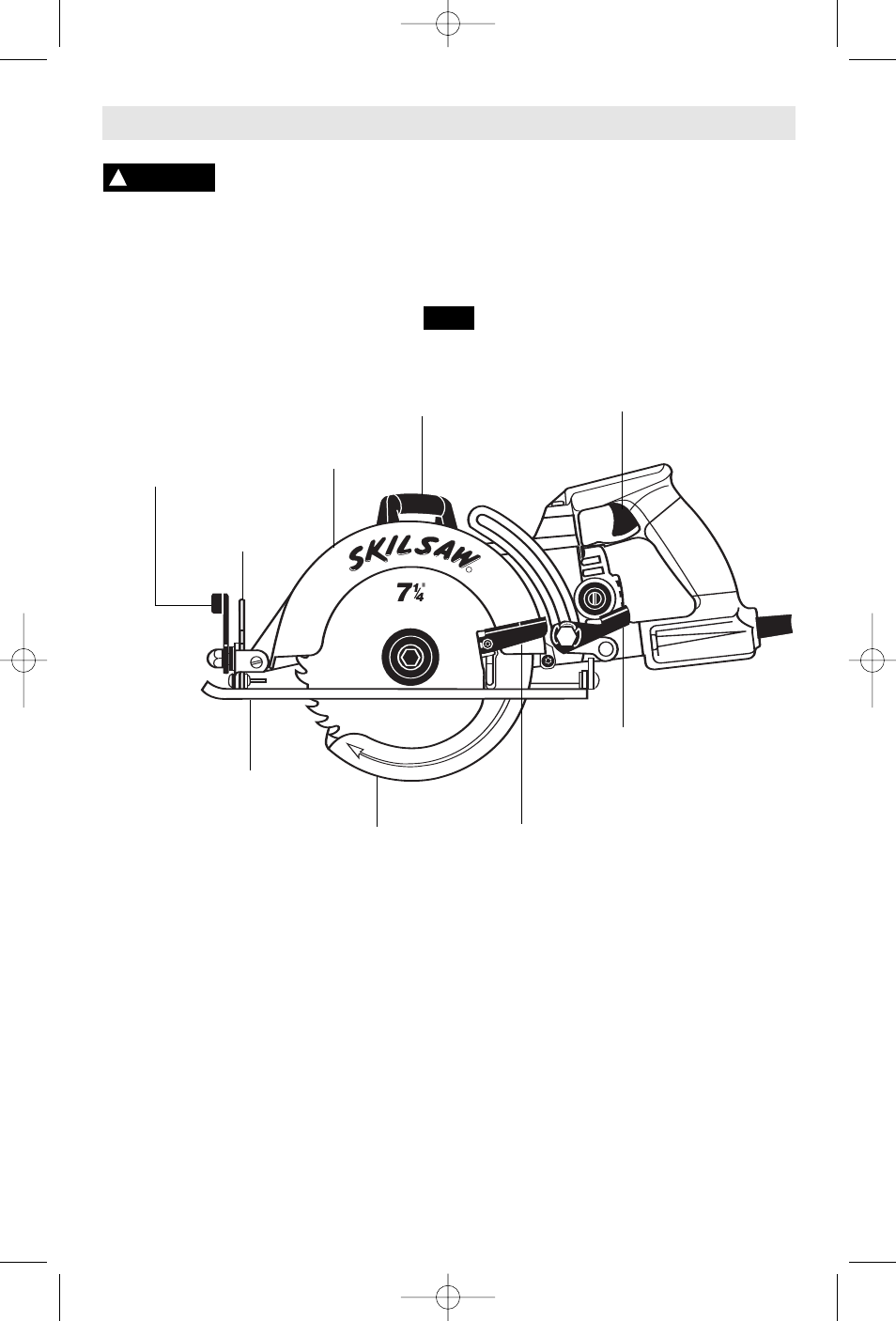

FIG. 1
CALIBRATED
BEVEL
QUADRANT
TRIGGER
SWITCH
Maximum Capacities
Blade 7-1/4"
Blade arbor hole Diamond
Depth of cut at 90° 2-3/8"
Depth of cut at 45° 1-15/16"
NOTE: For tool specifications refer to the nameplate on your tool.
