Swann MicroCam II - Manual (Page 4)

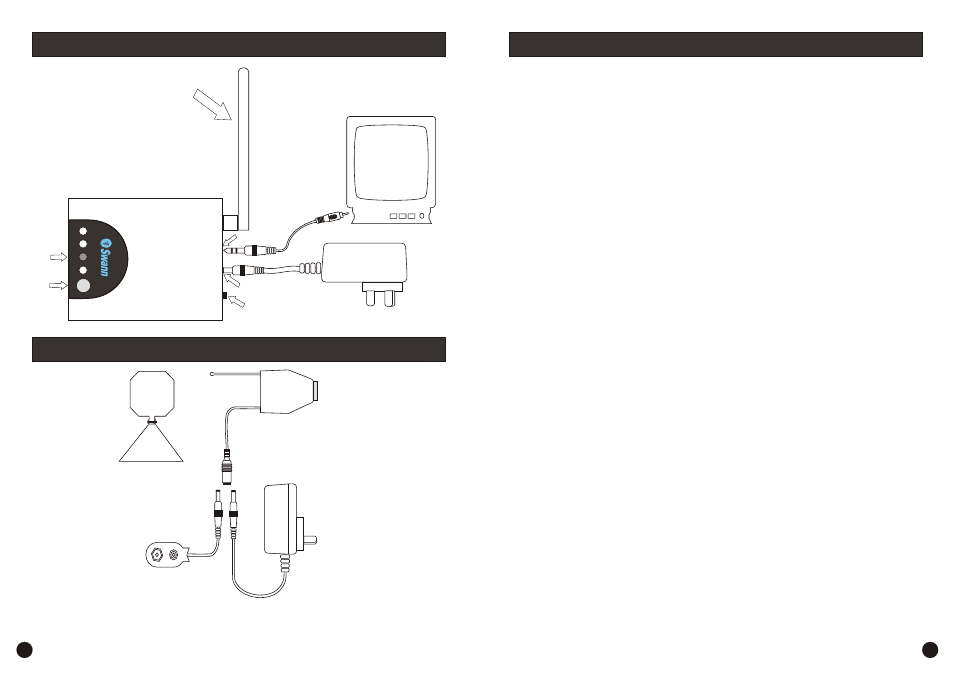

Receiver
External antenna
Audio / Video Out
To Audio and
Video IN
MicroCam III
Camera Power Adaptor
Monitor or TV
9v Battery Adaptor
DC Socket
Channel
Selector
Button
MicroCam III Stand
Loop / Normal Switch
Active
Channel
Leds
! DUE TO GOVERNMENT PRIVACY REGULATIONS RELATING TO THE USE OF
COVERT LISTENING DEVICES IN SOME COUNTRIES, THE MICROCAM III
TRANSMITTER SENDS VIDEO ONLY - IT DOES NOT HAVE AUDIO
TRANSMISSION CAPABILITY WHERE THESE RESTRICTIONS ARE IN PLACE.
!
Please test all devices before final installation because transmission quality can often be
improved by moving the components slightly.
! Turn off the transmitter and receiver if the system is not in use.
! Do not touch the antennas when the system is switched on.
! Do not place the receiver behind a monitor or TV.
! To avoid the risk of damage to MicroCam III, use only the supplied power adaptors.
! Don’t place above or near a heat source which may cause the equipment to overheat.
! Microwave ovens can cause interference and diminish the quality of the signal if the
MicroCam III or Receiver are located close by.
! Beware of humid locations. Water droplets or spray may damage the units. If condensation
does occur, do not use until the equipment has dried out.
! Never paint or attach metallic labels or stickers of any kind.
! Do not use two MicroCam III systems operating at the same time in the same area. This will
result in picture interference.
! Do not cut the DC power cable of the MicroCam III to fit with another power source. This
may result in damage to the MicroCam III & any unauthorised modifications will void your
warranty.
Best Results are achieved where there is a clear “line of sight” between the MicroCam III
transmitter and Receiver.
! Try to avoid obstacles such as trees, walls, cars, trucks and buildings when maximum range is
required.
! Interference from certain electronic equipment or the moving human body can also affect the
range obtainable.
!
S
E
L
C H
2
C
H 4
C H
1
C
H 3
Receiver
Power Adaptor
Receiver Features Important Information about this product
Camera Features
4 5
IMPORTANT: Due to the power consumption requirements of this product, we highly
recommend the use of a 9 volt battery only for short term portable use.
