D Viewing the camera and recording to VCR
Power on the receiver,
VCR and TV Using your TV’s remote
control tune your TV to
the correct INPUT*. In our
example above the TV
should be set to INPUT 1 Using your VCR’s remote
control tune your VCR to
the LINE 1 INPUT* You should now see
your cameras on the
TV screen. Follow
your manufacturer’s
instructions to
record to your VCR 1. 2. 3. 4.
*Some VCR’s and TV’s will list this as INPUT, A/V, SOURCE, L1, Channel 0 - Consult your manufacturer’s manual for more information
B

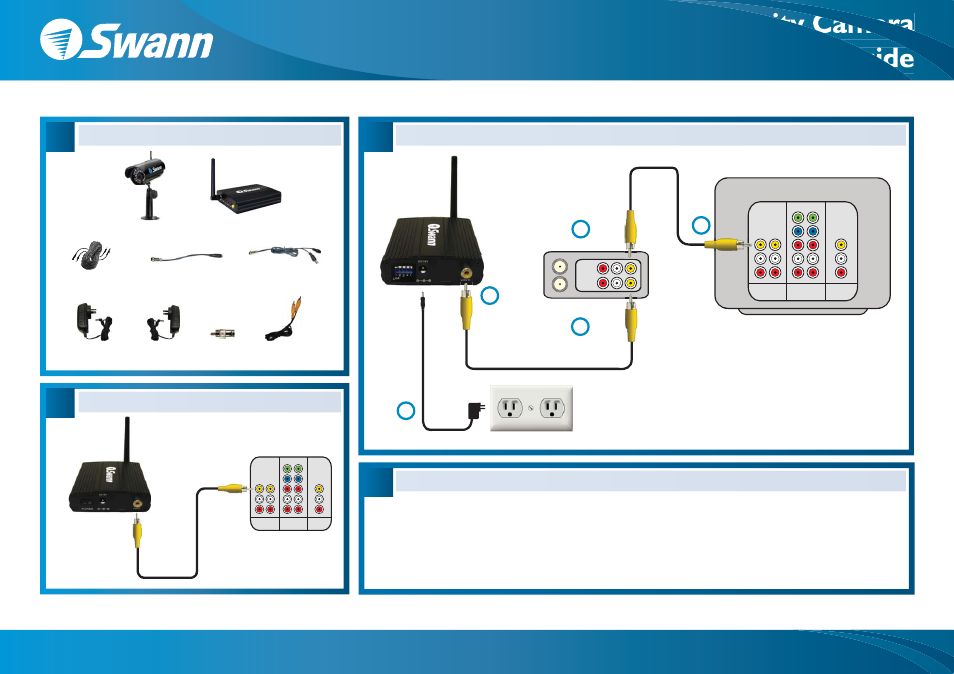

Connecting the receiver to record on a VCR
Back of VCR
Input
Output
Back of TV
1 3
4 5
Component
Inputs
Video
Inputs Output 1
2
3
4
5
1. Using supplied video cable, connect one end to receiver
2. Connect other end of video cable to INPUT on VCR
4. Connect other end of video cable to INPUT on TV
5. Connect power cable to receiver
3. Using another video cable (not supplied) connect to VCR OUTPUT
Connecting the receiver to your TV C
1 3
4 5
Component
Inputs
Video
Inputs Output
Back of
Receiver
Back of TV
Connect the video
cable to the back
of the receiver
Connect one end of the
cable to your TV Input
Easy Set up Components
A
Receiver
Power only Cable for
Wireless Connection Power & BNC
Cable for Wired
Connection
Video Cable
Extension Cable
Camera and Stand
Camera Power
Supply Receiver Power
Supply
Wireless / Wired Security Camera
PPW-250 Easy Setup Guide
www.swannsecurity.com
Swann Communications • Toll Free Technical Support: USA - 1-800-627-2799, Australia - 1300 13 8324 • Email: [email protected]
.com
BNC to RCA
Adapter
SR231-WMX-1R005-060409
