SATO S8404 Standard - Manual (Page 4)

9001162 Re
v. B

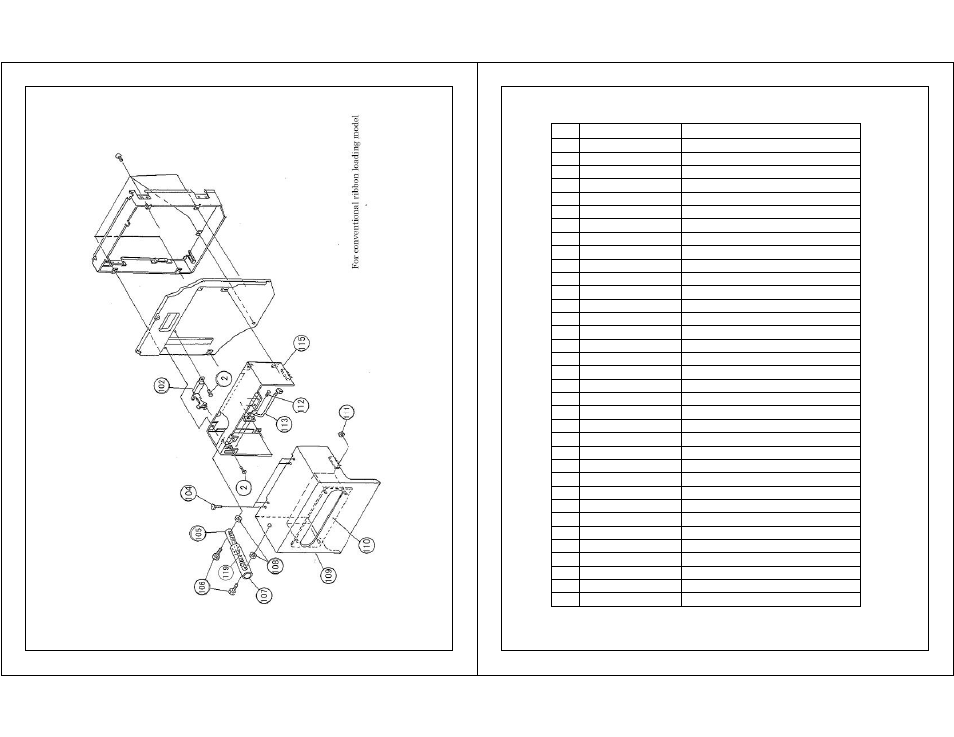

Cover Assembly - 5
Fron
t Cover
9001162 Rev. B
No. Part Number Description
2 M16259000 PAN HEAD SCREW+SW+WL
10 MD4300825 PAN HEAD SCREW+SW+WL
20 P14133000 TOP COVER(STD)
21 P17798000 TOP COVER(OPP)
22 R05973030 CLOSE COVER A(STD)SET
23 R07921030 CLOSE COVER A(OPP)SET
24 P17099000 DRIVER PCB BR
25 MD4300822 PAN HEAD SCREW+SW+WL
26 P17027010 MAIN PCB BR A(STD)
27 P17795000 MAIN PCB BR A(OPP)
28 P17028000 MAIN PCB BR B(STD)
29 P17796000 MAIN PCB BR B(OPP)
30 MD3300822 PAN HEAD SCREW+SW+WS
31 R08629040 CONT PCB ASSY -LF
32 R08631001 MOTOR DRIVER PCB ASSY -LF
33 P17085000 VOLUME COVER
34 MA2400628 BIND HEAD SCREW
35 R05972030 CLOSE COVER C(STD)SET
36 R07923030 CLOSE COVER C(OPP)SET
37 P11135000 COVER(EXT)
38 P15944020 GUIDE RAIL
39 MH1300825 FLAT HEAD P TIGHT SCREW
40 K00050000 POWER UNIT-LF
41 P18026010 FILTER
42 R07582030 CLOSE COVER B(STD)SET
43 R07922030 CLOSE COVER B(OPP)SET
44 P11523000 WIRE SADDLE
45 K00199000 FAN MOTOR
46 MD4303022 PAN HEAD SCREW+SW+WL
47 P20228000 FAN PLATE
48 R04936010 EXT-14 PCB ASSY-2(SR/GT)-LF
50 R08698030 INLET CABLE SET -LF
54 MA1300622 FLAT HEAD SCREW
55 R08703010 MDRV - POWER CABLE SET -LF
56 R09816000 DUMMY COVER OPEN CABLE SET -LF
