Using a CAT5-XT-1100 extender and a self-powered USB hub
If you need to extend the cable from a CAT5-XT-1100 remote extender unit (REX) to the interactive
whiteboard, you must use a self-powered hub. CAT5-XT-1100 extenders don’t provide sufficient
power for a bus-powered USB extender.
N O T E
You can connect the USB cable from the hub to the SMART Board 800i series interactive
whiteboard system’s ECP module using the included USB A to mini-B cable or using a standard
USB cable with the mini USB to USB adapter included with your system.

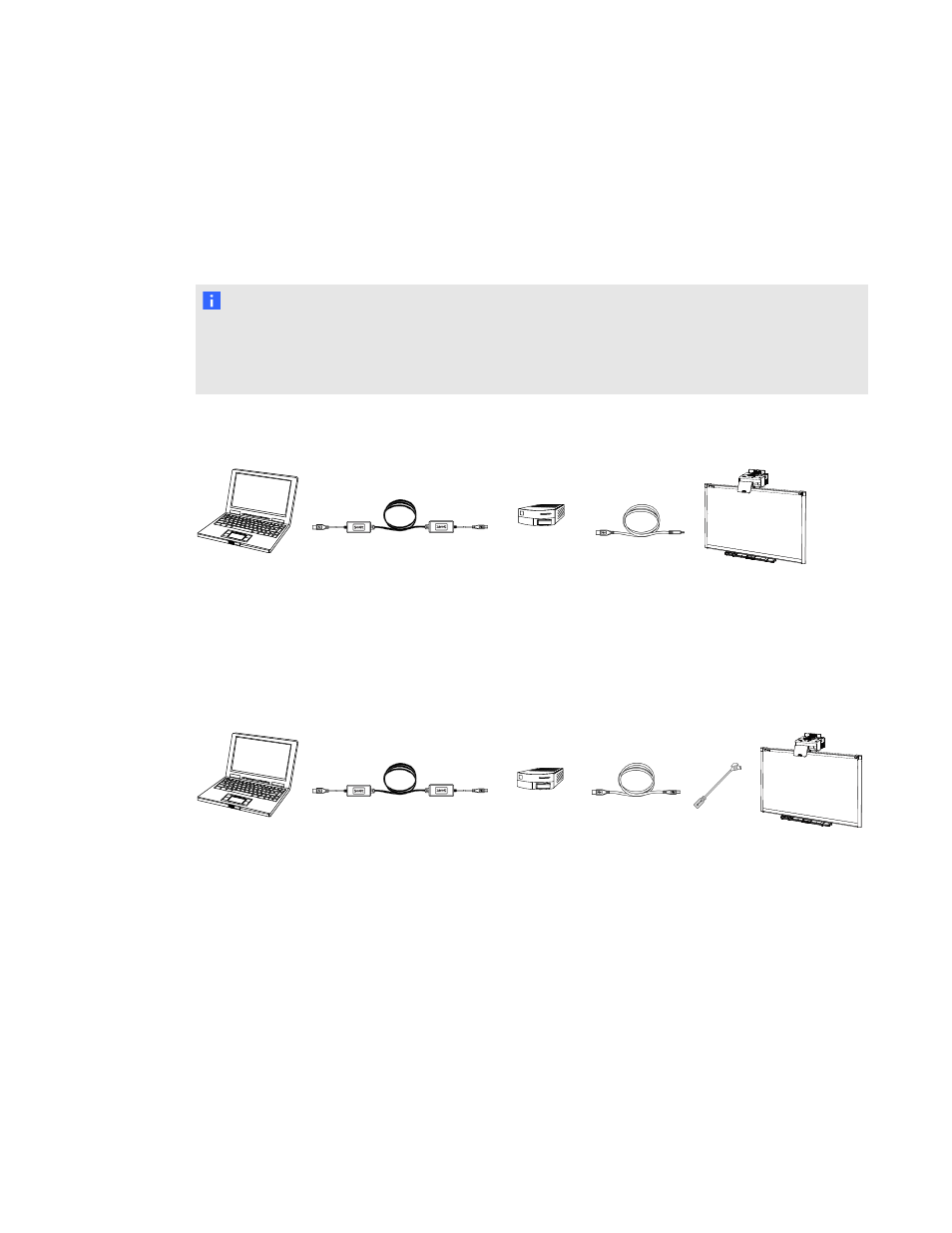

Using the USB A to mini-B cable
Computer CAT5-XT-1100
Cat 5 cable < 40' (12 m)
Self-powered
USB hub
USB A to
mini-B cable
Interactive
whiteboard system
Using a standard USB cable with the USB adaptor
Computer CAT5-XT-1100
Cat 5 cable < 40' (12 m)
Self-powered
USB hub
Standard
USB cable
USB
adapter
Interactive
whiteboard
system
