Sonos ZonePlayer ZP100 - Manual (Page 16)

Sonos ZonePlayer ZP100 Setup Guide 12

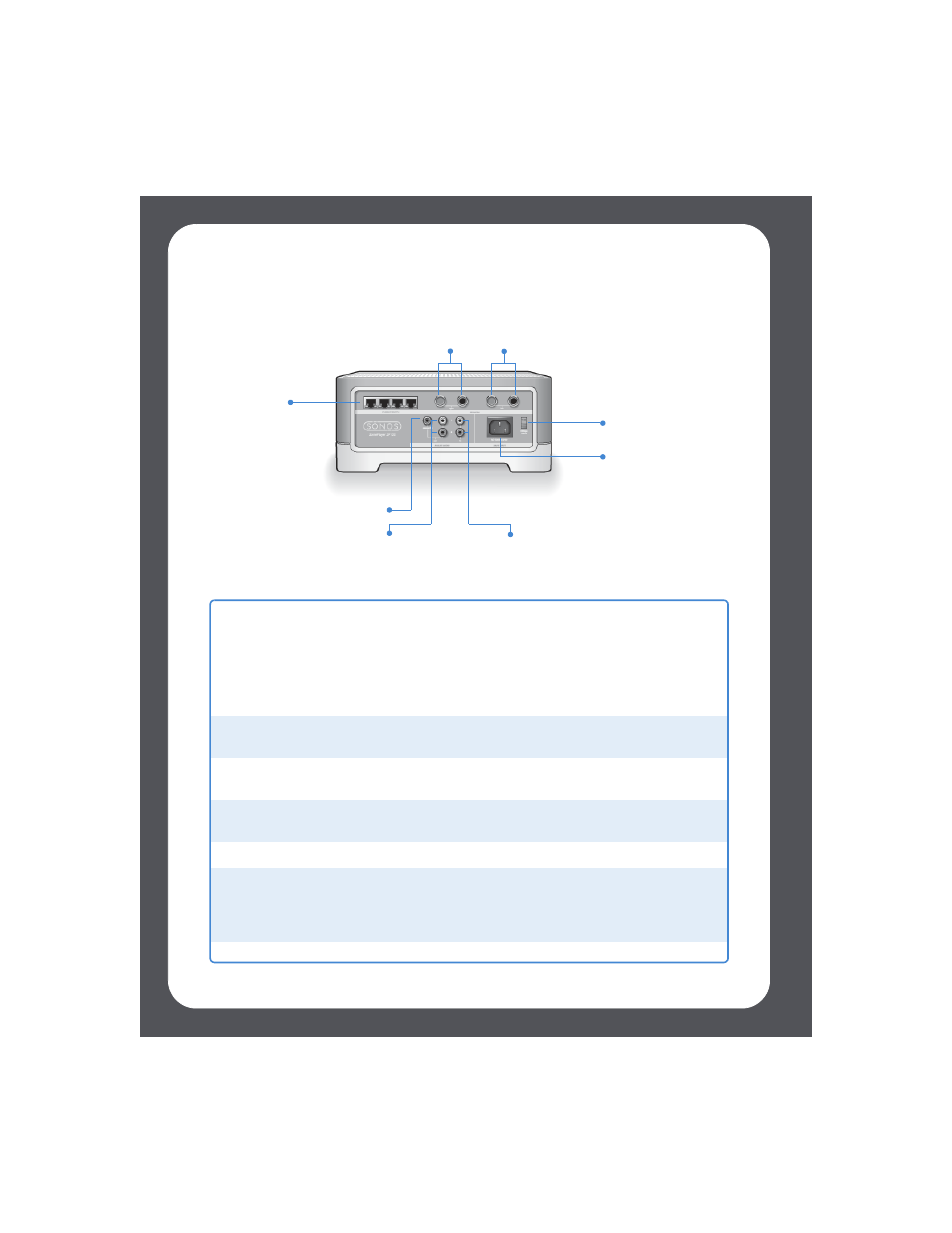

ZP100 Rear Panel Connectors
Ethernet switch connectors (4) Use Category 5 Ethernet cable to connect to a router,
computer, or additional network device such as a
network-attached storage (NAS) device.
LED indicators:
• Green (link connection)
• Flashing Yellow (network activity)
Right speaker terminals Use high-quality speaker wire to connect the right
speaker to the ZonePlayer.
Left speaker terminals Use high-quality speaker wire to connect the left speaker
to the ZonePlayer.
Voltage select 115V/230V
Select the appropriate voltage setting for your country.
AC power (mains) input Use the supplied power cord to connect to power outlet.
Analog audio out (fixed/variable) You may use a standard RCA audio cable to connect the
audio inputs on a separate audio component such as an
amplifier or your home theater receiver, to the
ZonePlayer’s analog audio outputs.
Ethernet
switch
connectors
Right speaker
terminals
Left speaker
terminals
Voltage select
115V/230V
AC power (Mains)
input
Analog audio inputs Analog audio outputs
Subwoofer output
