-6-

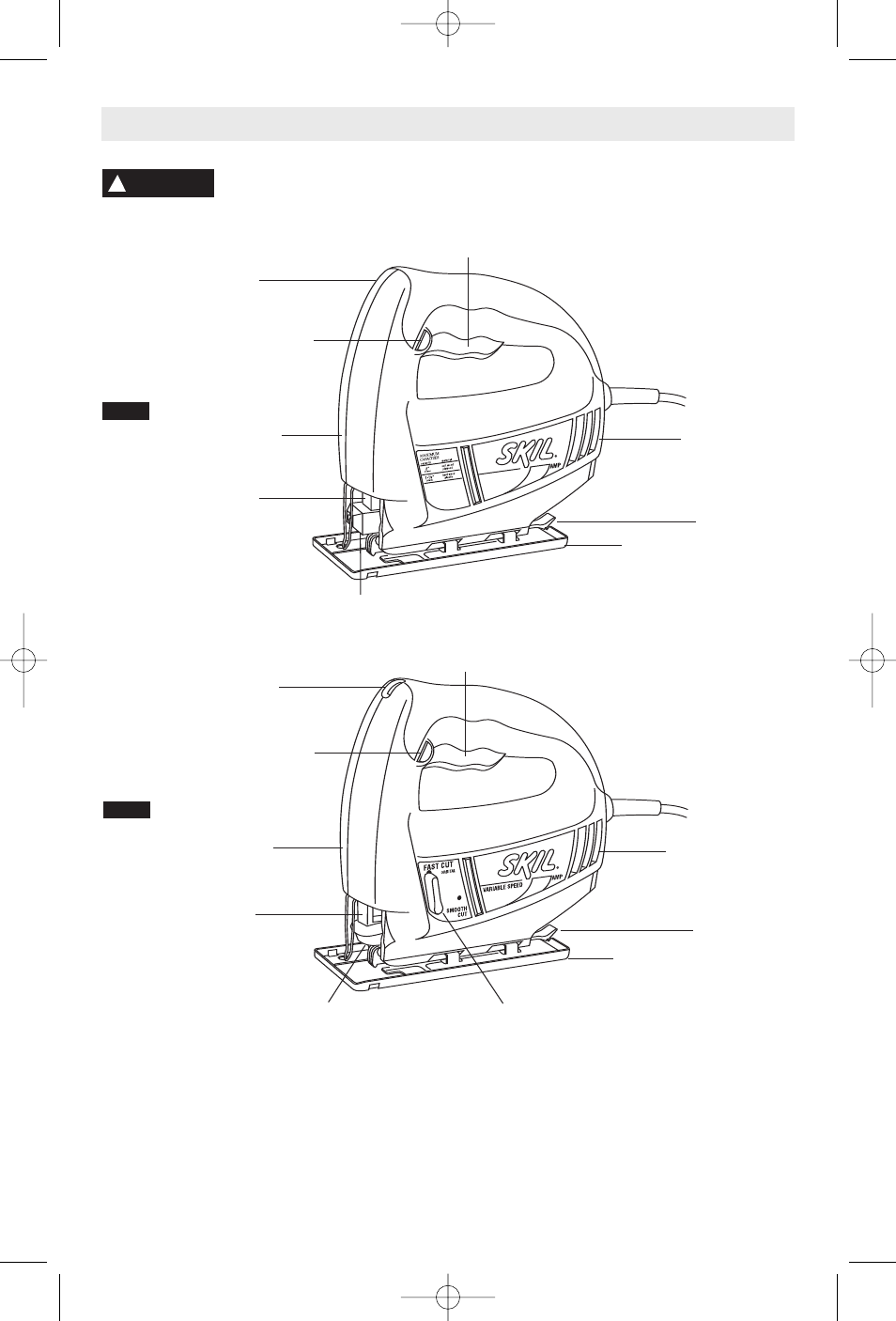

Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
! WARNING
“LOCK-ON”
BUTTON
VENTILATION
OPENINGS
PLUNGER
BLADE
HOLDER
GEAR
HOUSING
Jigsaws
MAXIMUM CAPACITIES
Model Blade Blade Stroke
No. Thickness Action Length Wood Aluminium Steel
4240 Minimum .8mm - Maximum 1.5mm Standard 5/8" 2" 1/2" 1/4"
4280 Minimum .8mm - Maximum 1.5mm Standard 5/8" 2" 1/2" 1/4"
4380 Minimum .8mm - Maximum 1.5mm Orbital 5/8" 2" 1/2" 1/4"
NOTE: For tool specifications refer to the nameplate on your tool.
VARIABLE SPEED
CONTROL DIAL
“LOCK-ON”
BUTTON
VENTILATION
OPENINGS
FOOT
RELEASE
TAB
PLUNGER
GEAR
HOUSING
TOOL-LESS BLADE
CHANGE COVER
ORBIT CONTROL
LEVER
FOOT
FOOT
RELEASE
TAB
FOOT
TOP OF FRONT
HOUSING
TRIGGER SWITCH
TRIGGER
SWITCH
FIG. 1
FIG. 2
