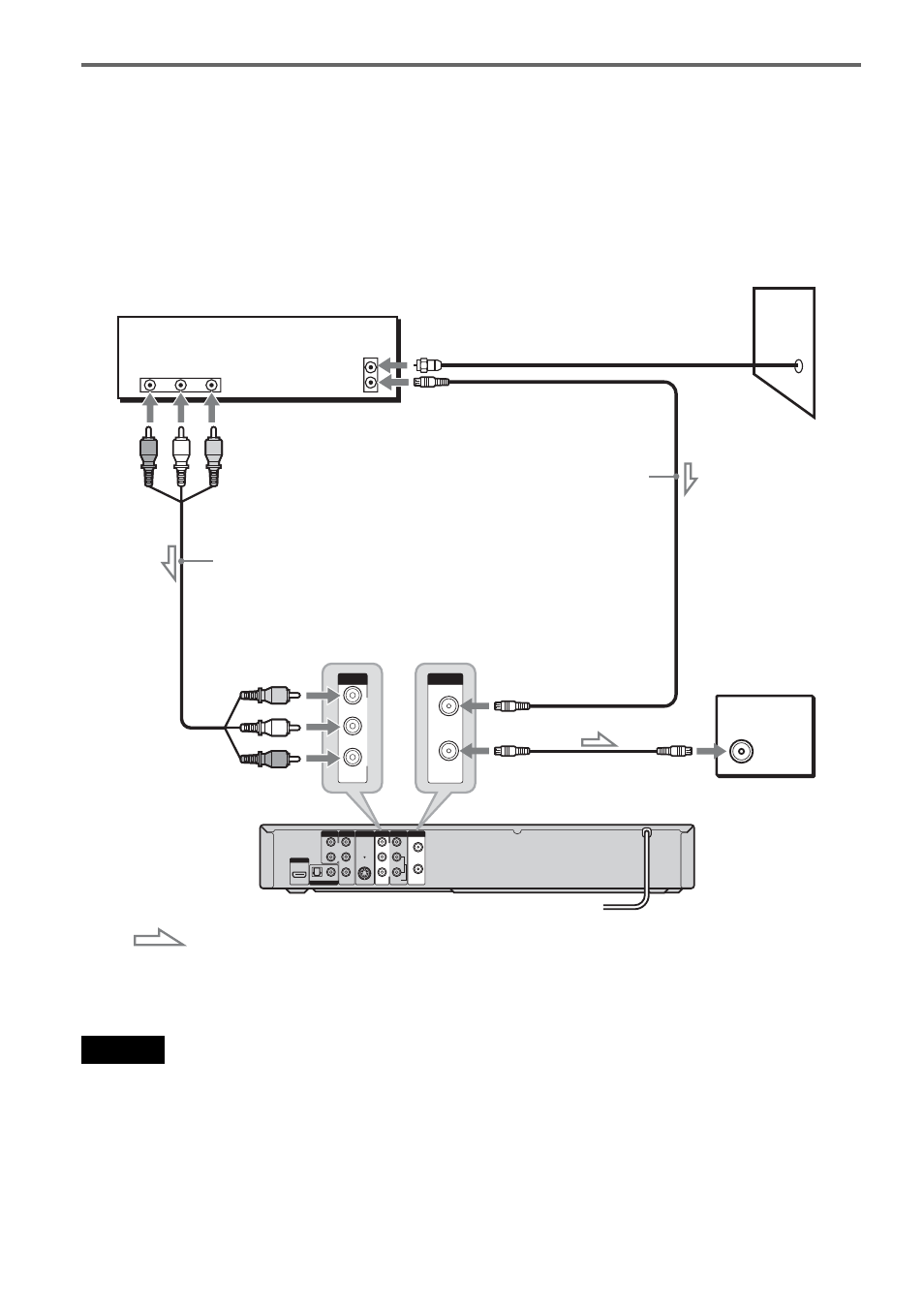

A: Cable box or satellite receiver with a video/audio output
With this hookup, you can record any channel on the cable box or satellite receiver. Be sure that the cable
box or satellite receiver is turned on. This connection is necessary to use the Synchro-Rec function
(page 53).
To watch cable or satellite programs, you need to match the channel on the recorder (LINE1) to the input
jack connected to the cable box or satellite receiver (LINE 1 IN).
Note
Synchro-Recording does not work with some tuners. For details, see the tuner’s operating instructions.
L
R
VIDEO
AUDIO
LINE OUT VHF/UHF
VIDEO
Y L
P B R
P R
AUDIO
LINE 1 IN AUDIO OUT S VIDEO OUT COMPONENT VIDEO OUT
DIGITAL AUDIO OUT
OPTICAL COAXIAL
HDMI OUT
IN
OUT
ANT IN
R L
AUDIO
OUT
VIDEO
OUT
TO TV
VIDEO
LINE 1 IN
AUDIO
VHF/UHF
IN
OUT
Cable box/
satellite receiver
Antenna cable
(supplied)
to antenna input
Audio/video
cord (not supplied)
to LINE 1 IN
DVD recorder
: Signal flow
to VHF/UHF IN
to VHF/UHF
OUT
TV
Wall
