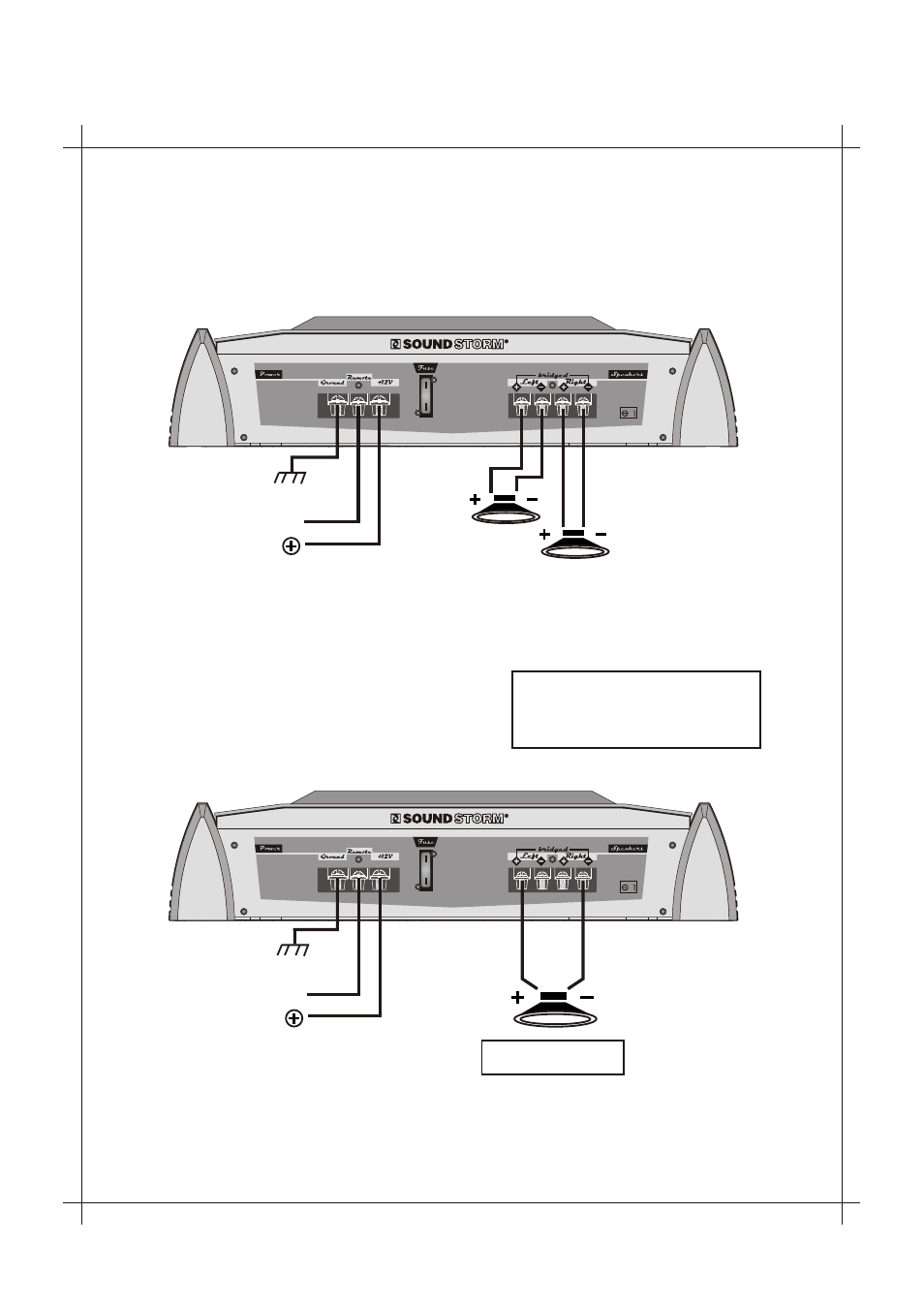

TWO Channel Speaker Wiring
Bridged Speaker Wiring
Connect the NEGATIVE SPEAKER TERMINAL to the
RIGHT CHANNEL NEGATIVE AMPLIFIER TERMINAL
Connect the POSITIVE SPEAKER TERMINAL to the
LEFT CHANNEL POSITIVE AMPLIFIER TERMINAL
Two Channel Amplifiers:
D400.2, D650.2 and D1000.2 Amplifiers
LEFT
SPEAKER
RIGHT
SPEAKER
GROUND
GROUND
To REMOTE OUTPUT
from HEAD UNIT
To REMOTE OUTPUT
from HEAD UNIT
To BATTERY
To BATTERY
SPEAKER IMPEDANCE
4-8 OHMS!
Two Channel Amplifiers:
D400.2, D650.2 and D1000.2 Amplifiers
