Skil 2250 - Manual (Page 8)

Tool
Model number
2230 2240 2250 2260
Voltage rating 9.6 V 12 V 14.4 V 18 V
Charge time 3 hr. 3 hr. 3 hr. 3 hr.
Chuck size 3/8" 3/8" 3/8" 3/8"
Maximum Capacities
Screw sizes
#8 x 3" #10 x 4" #12 x 4" 3/8" x 4"
Mild metal 3/8" 3/8" 3/8" 3/8"
Hard wood 3/8" 3/8" 3/8" 1/2"
Soft wood 13/16" 13/16" 1" 1-1/8"
Battery pack 96BAT 120BAT 144BAT 180BAT
Charger SC7218 SC7218 SC7218 SC7218
Voltage rating
(all models) 120 V
60 Hz
-8-
Functional Description and Specifications
Disconnect battery pack from tool or place the switch in the locked or off
position before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.
! WARNING
Cordless Drills/Drivers
NOTE: For tool specifications refer to
the nameplate on your tool.
VENTILATION
OPENINGS
FORWARD/REVERSING
LEVER &
TRIGGER LOCK
RUBBERIZED GRIP
CHUCK SLEEVE
CHUCK
COLLAR
KEYLESS
CHUCK
BATTERY
RELEASE TABS
BATTERY PACK
VARIABLE SPEED
TRIGGER SWITCH
ADJUSTABLE CLUTCH

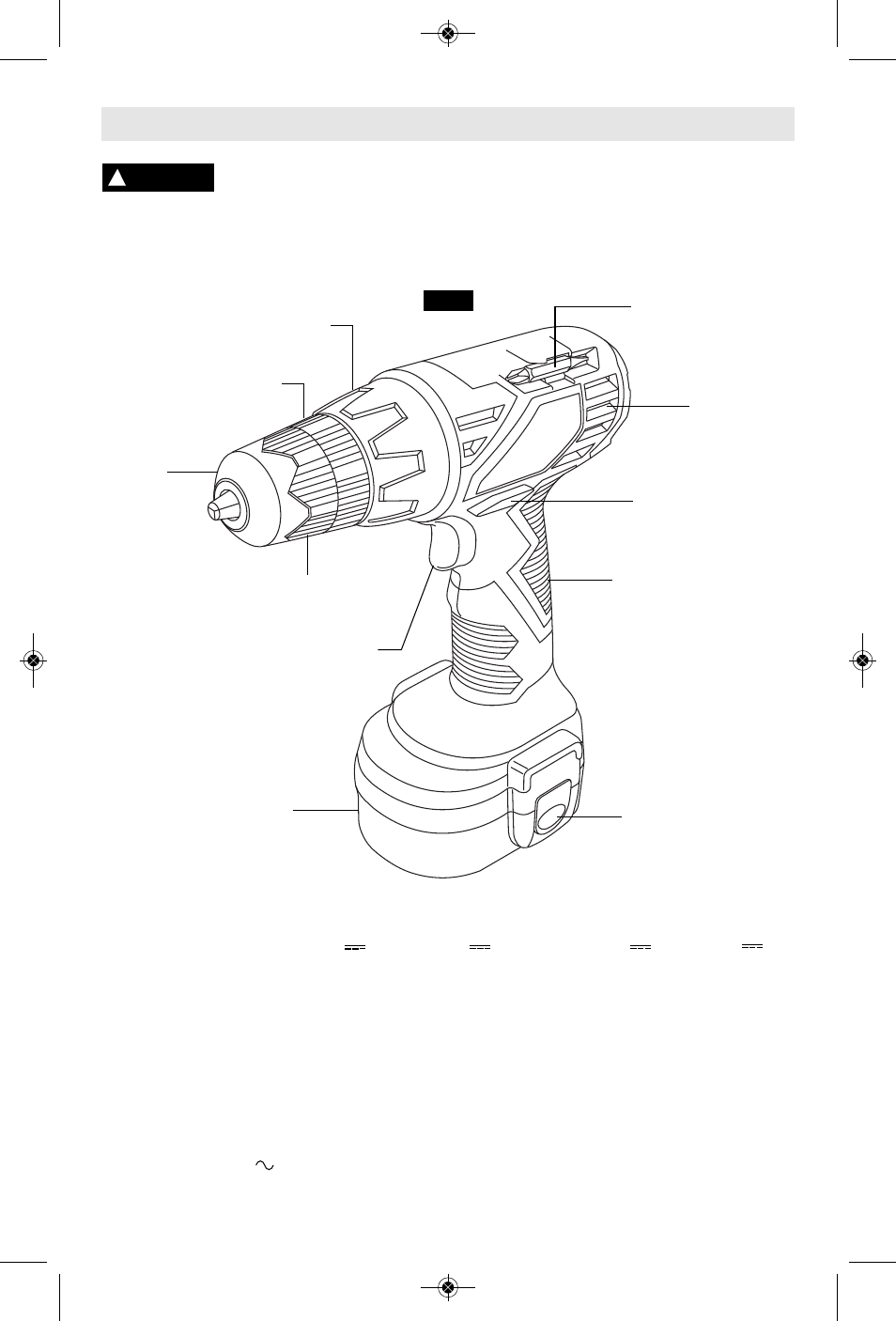

FIG. 1 BIT AND
STORAGE AREA
