Chassis assembly reference parts diagram – Stanley Black & Decker 45SS User Manual
Page 33

28
30SS, 36SS, 45SS
Rev: 12/21/2011
Drawing # Item #
Description
Drawing # Part #
Description
1
B00110
Snow blower Wheel/Tire Assembly
13
B03511
Chute Direction Control Handle
2
B01110
Transmission Belt (toothed belt)
14
B03811
Discharge Chute Angle Lever
3
B01310
Plastic Belt Guard with Hardware
15
B03911
Transmission Speed Shift Lever
4
B01910
Shift Rod (Attaches control lever to linkage)
16
B04411
Control Handle Inter Lock Linkage
5
B02010
Auger/Impeller OR Drive Engagement Cable
17
B04511
Outer Friction Wheel Shift Linkage
6
B02210
Headlight Assembly
18
B04711
Lower Handle Bar Frame
7
B02510
Friction Wheel Assembly with Bearing
19
B04911
Transmission Belt Idle Pulley with Bracket
8
B02610
Friction Wheel Cover Plate with Hardware
20
B05011
Crankshaft Pulley Set
9
B09011
Upper Control Handle/Control Panel Frame
21
B05611
Complete Friction Wheel Shift Linkage Assembly
10
B02811
Left Control Handle
22
B09311
Friction Wheel Aluminum Hub Assembly
11
B02911
Right Control Handle
23
B09411
Snow blower Wheel Lynch Pin
12
B03411
Handle Rubber Grip
24
B09711
Intermediate Axle Shaft (Friction Wheel Shaft)
18
12
1
23
3
2
20
19
4
6
11
10
14
15
5
5
8
7
22
24
17
21
13

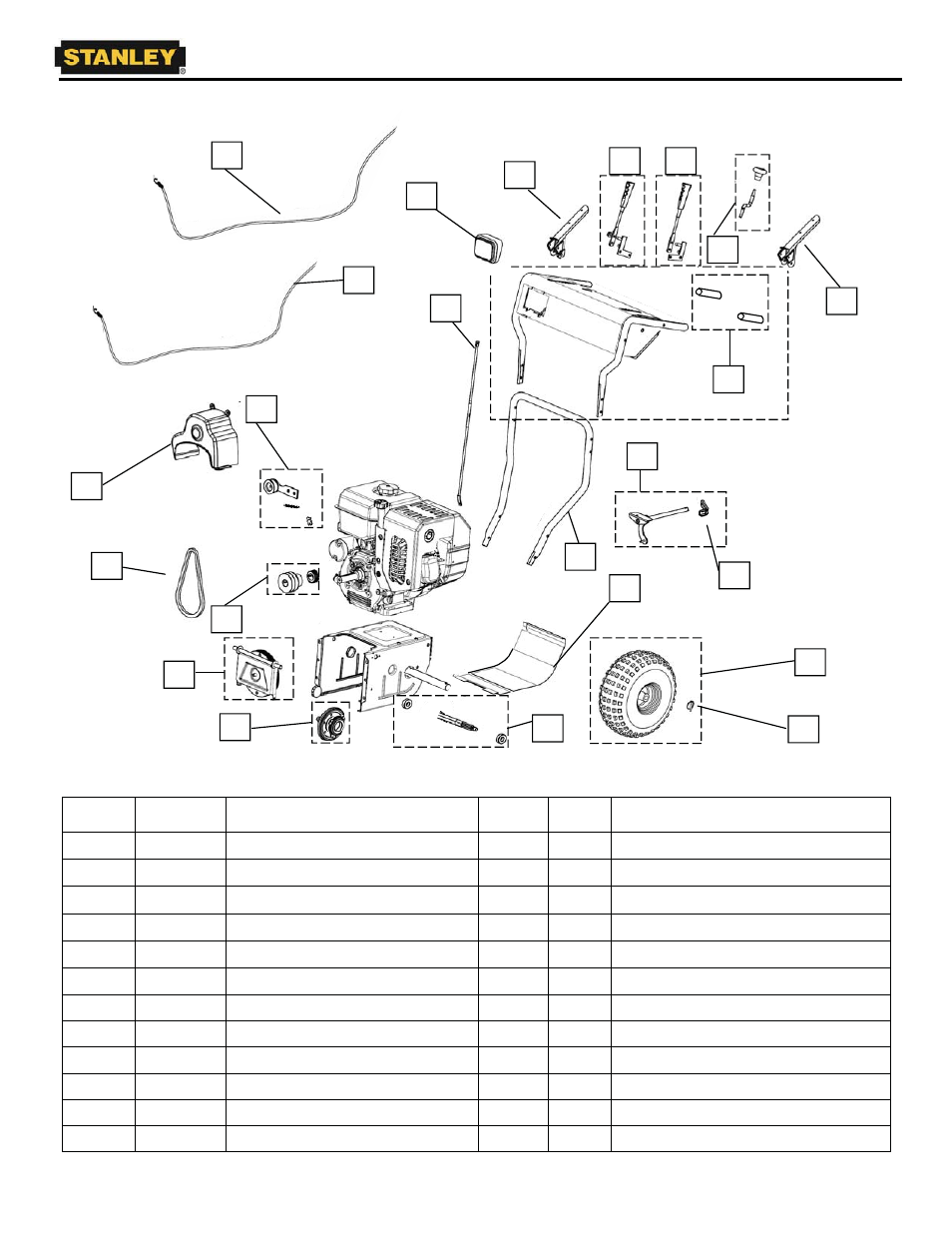

Chassis Assembly Reference
Parts Diagram
