27
30SS, 36SS, 45SS
Rev: 12/21/2011

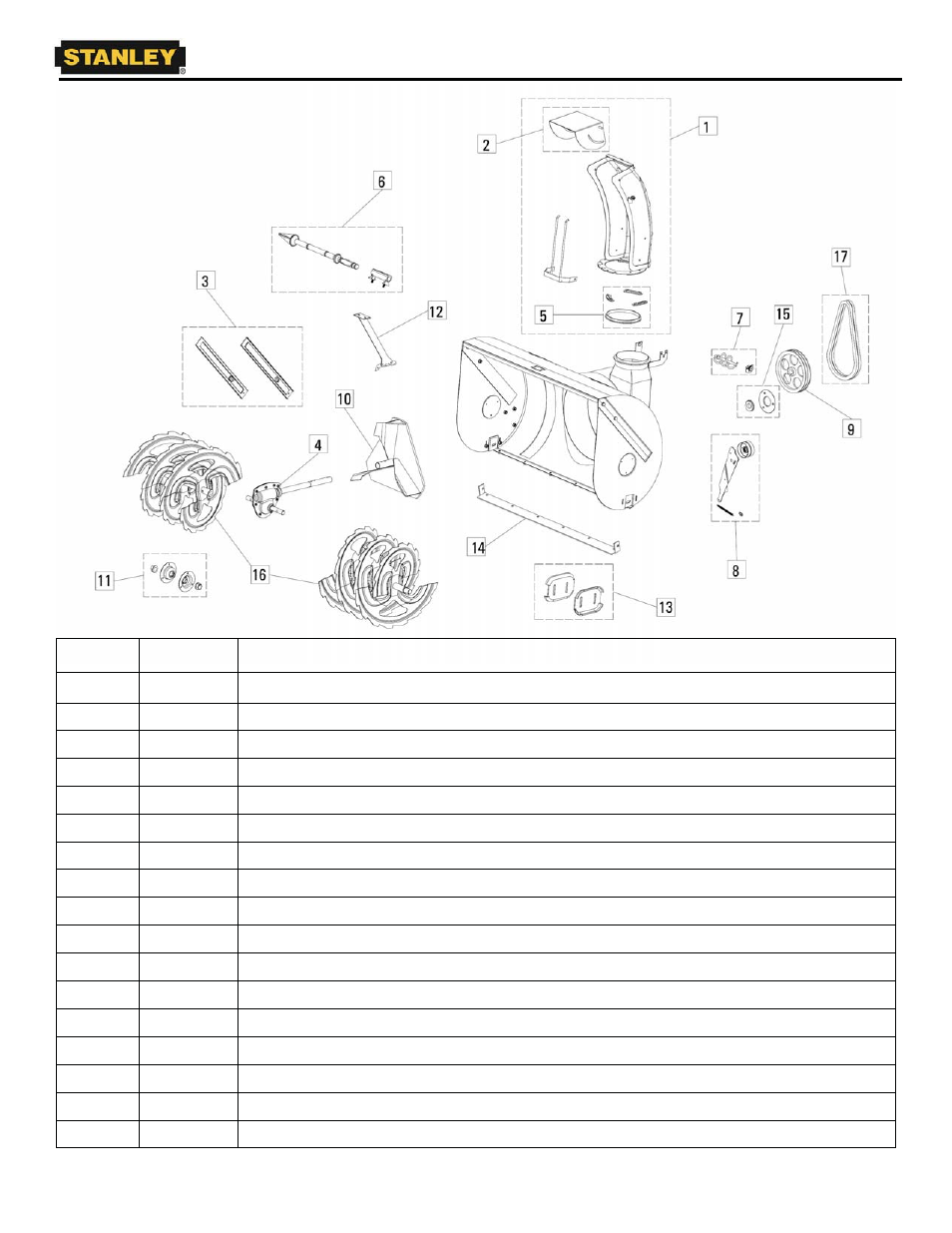

Collector Housing Assembly Reference
Parts Diagram
Drawing # Part# Descpription
1 B00610 Discharge Chute Assembly—Black
2 B00810 Discharge Chute Deflector—Black
3 B01010 Drift Cutters—Black (Set of 2)
4 B01410 Auger/Impeller Gearbox
5 B01510 Discharge Chute Rotation Bushing with Clamps
6 B02410 Snow Cleanout Tool with Bracket and Hardware
7 B03711 Discharge Chute Direction Gear (Spiral Gear) with Bracket
8 B04811 Auger/Impeller Clutch Pulley Assembly & Bracket
9 B05111 Auger/Impeller Pulley (Mounts to Impeller Shaft)
10 B06511 Impeller
11 B06811 Auger Shaft Bearings with Flange
12 B06911 Gearbox Support bar
13 B07011 Skid Shoes—Black (Set of 2)
14 B07211 Scraper Blade Assembly
15 B08211 Impeller shaft Bearing Support with Bracket
16 B08311 Auger/Collector Assembly
17 B08911 MXV4-370 Aramid Fiber Re-Inforced V-Belts (Set of 2)
