Speco Technologies CVC6146SCFF User Manual
Page 15
- 15 -

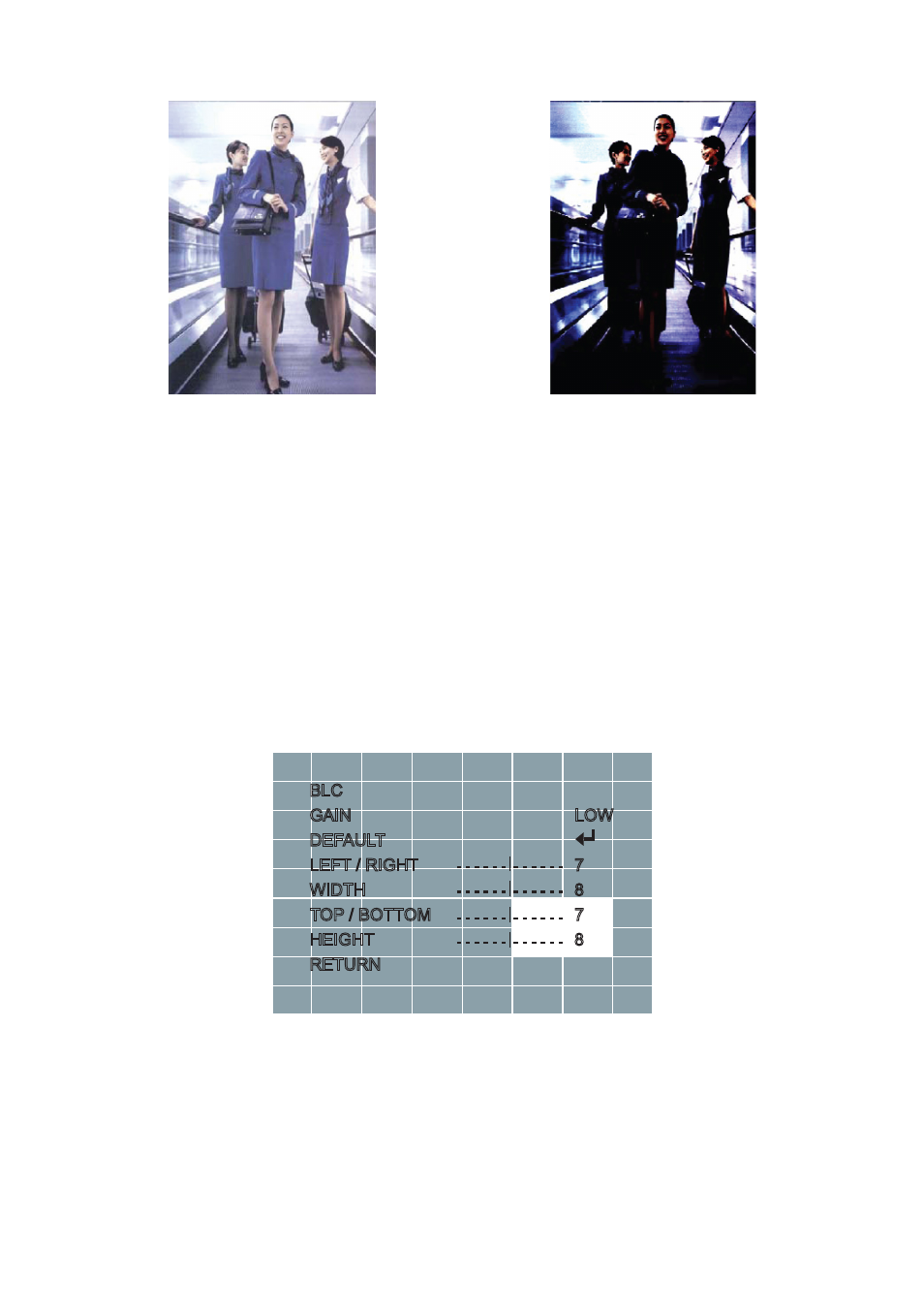

3. Select a mode using the Left and Right buttons then press the SET button.
Select BLC to adjust the desired BLC area and GAIN level.
① Move the arrow indicator to select the WIDTH of cells to increase or decrease by using the Left / Right
button from 0 ~ 7 cells.
② Move the arrow indicator to select the HEIGHT of cells to increase or decrease by using the Left / Right
button from 0 ~ 7 cells.
③ Move the arrow indicator to the LEFT / RIGHT and TOP / BOTTOM to select the desired area positon by
using the LEFT or RIGHT button.
* GAIN : Adjust the BLC sensitivity by selecting LOW, MIDDLE or HIGH.
* DEFAULT : Press the Default to back to the factory default when input the wrong data .
BLC ON
BLC OFF
BLC
GAIN
DEFAULT
LEFT / RIGHT
WIDTH
TOP / BOTTOM
HEIGHT
RETURN
LOW
7
8
7
8
