Sz series system set up – Samson POWER AMPLIFERS SZ1120 User Manual
Page 15
11
SZ Series System Set Up

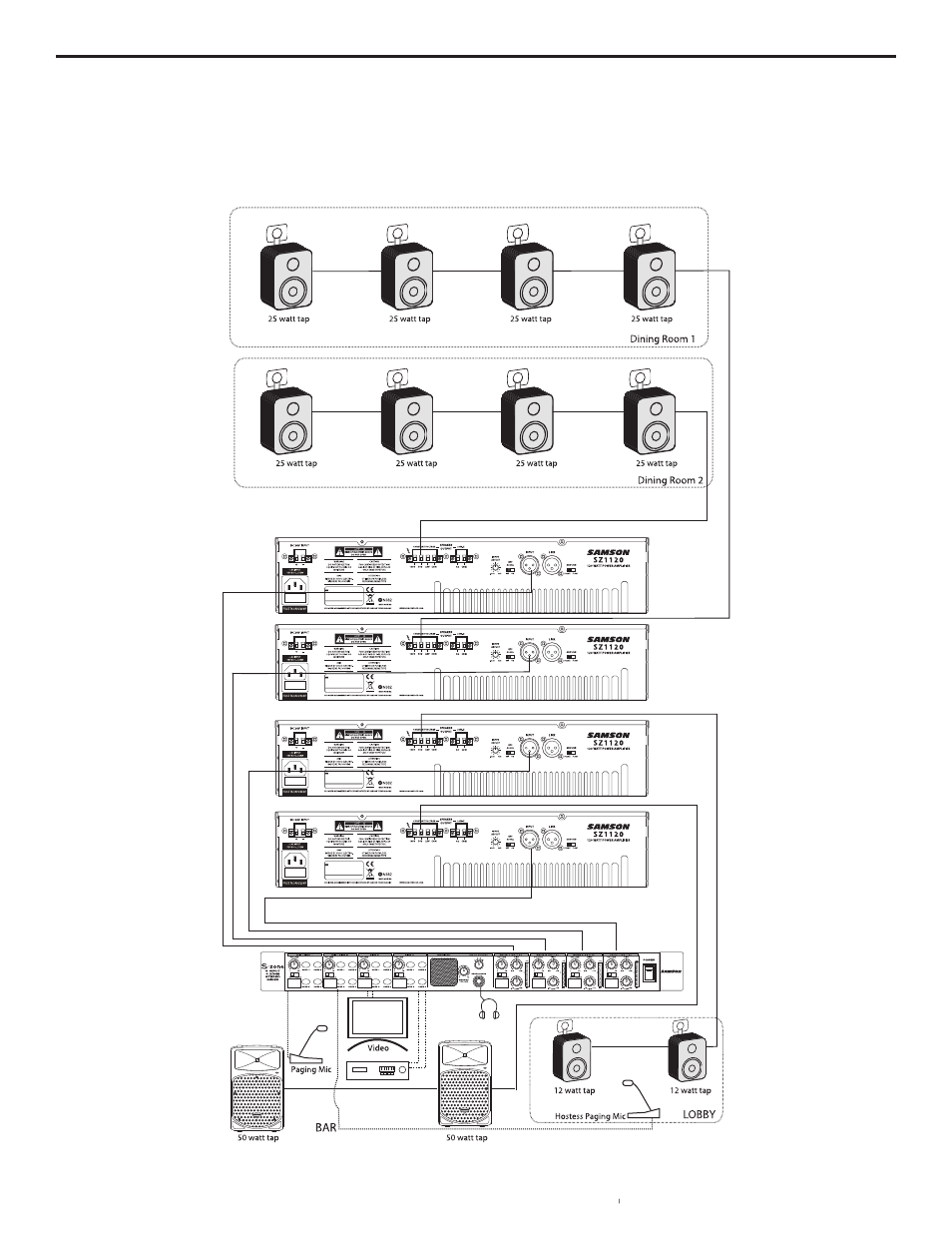

The following is a typical constant voltage system setup for a small restaurant using four SZ1120 power amplifiers along with an S zone
feeding several audio zones with paging and music. The first two SZ amps are connected to four wall-mounted speakers in each of the
Dining Rooms with their transformers set to a 25 watt tap. The third SZ amp powers two speakers in the outside Bar area with their
transformers set to 50 watt. (The db300i's are specially treated so they're suitable for indoor and outdoor use.) The fourth SZ amp powers
small speakers in the lobby with a 12 watt tap.
