7
WINDOW KIT INSTALLATION
The window kit is designed to fit into most standard
vertical and horizontal windows, as well as some
sliding glass doors. However, it may be necessary to
modify some aspects of the installation process for
certain window types.
Open the window or sliding door and adjust the
length of the window kit to fit the opening. If the
window kit is not long enough, connect the extra
window kit panel to fit the opening. Mark and cut
down a single panel of the window kit if neces-
sary.

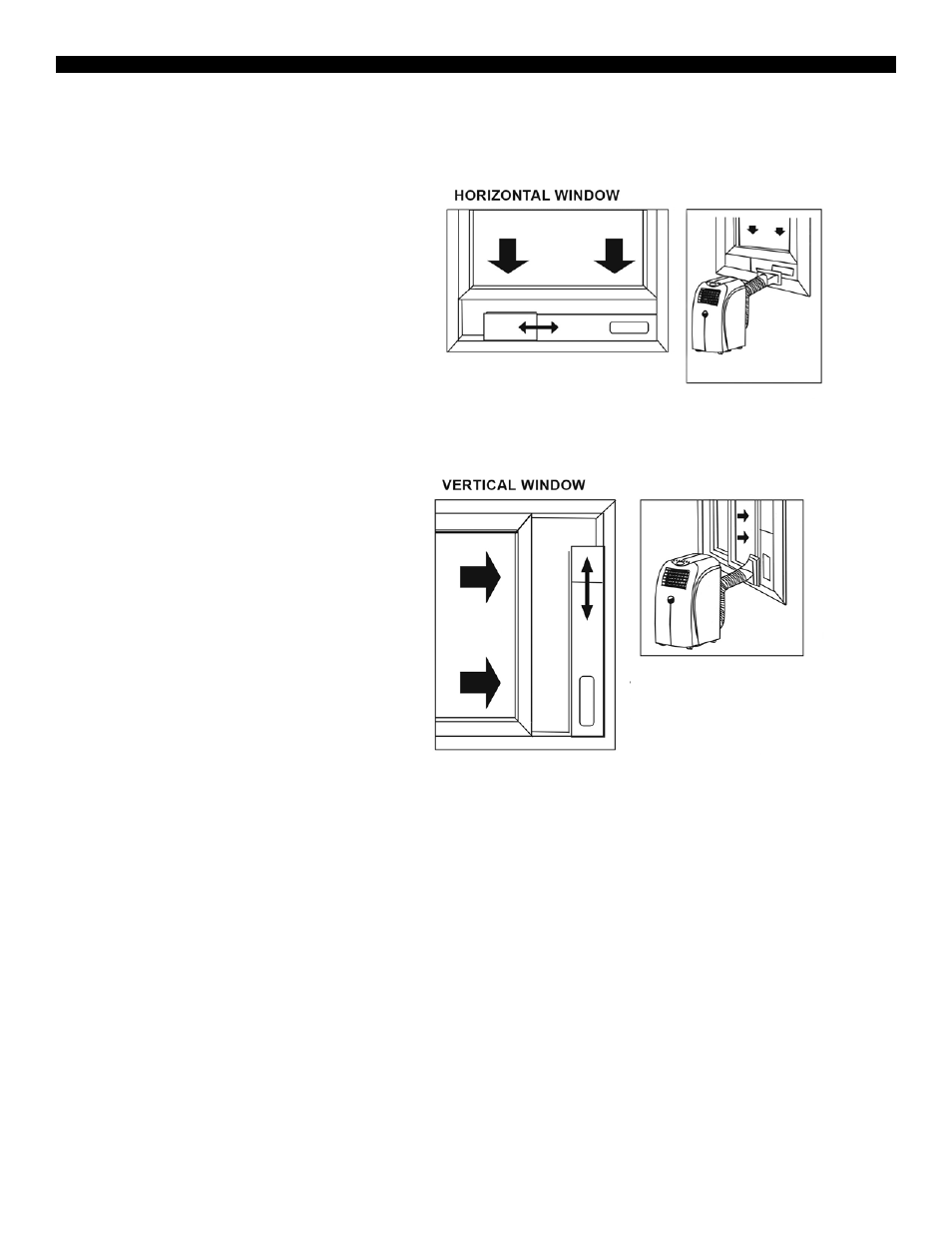

Place the window kit between the window and the
window frame as shown in the images to the right.
Close the window onto the window kit to form a
tight seal.
Attach the exhaust duct adapter to the window kit.
Tabs located on the adapter will lock into place
securing the adapter to the window kit.
WINDOW KIT INSTALLATION
Window Slider Kit
Minimum: 33 1/2” (85cm)
Maximum: 70” (177.8cm)
Window Slider Kit
Minimum: 33 1/2” (85cm)
Maximum: 70” (177.8cm)
