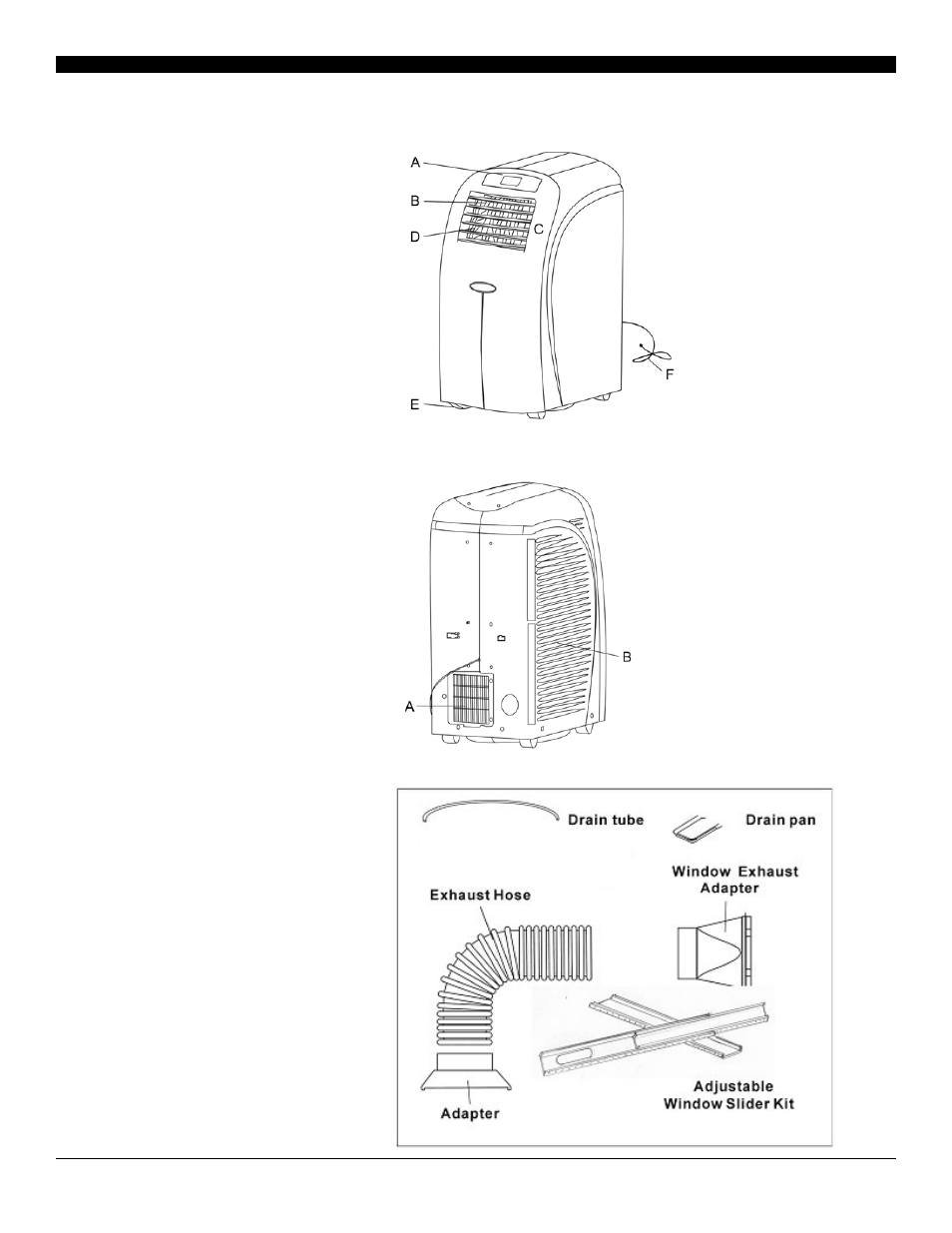

PRODUCT DIAGRAM

(Actual product design may differ slightly from images below)

FRONT

A. Control panel

B. Vertical air louvers

C. Air outlet

D. Horizontal air louvers

E. Casters

F. Power Cord & Plug

BACK

A. Hot air outlet grill

B. Lower air inlet grill

ACCESSORIES

Flexible exhaust hose with 2 adapters

• 3-piece set

• stretches from 14 1/4” to 60 5/8”
(36cm to 150cm)

Adjustable window slider kit

• 3-piece set
• adjusts 33 1/2” to 70” (85cm to 177.8cm)

Drain tube

Drain pan
