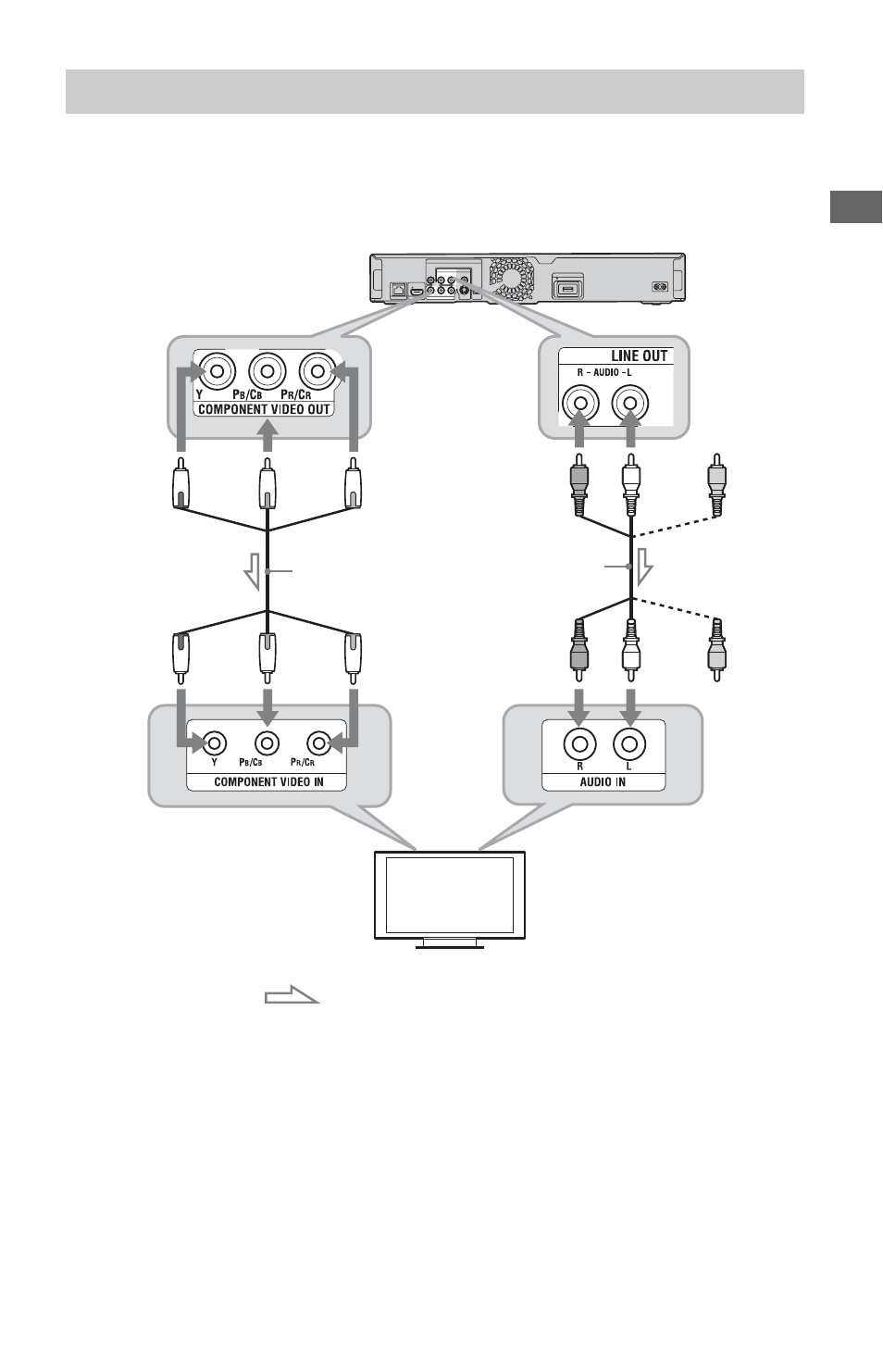

Connect the COMPONENT VIDEO OUT jacks of the player and your TV using a component
video cable. You can enjoy high-quality pictures.
Be sure to connect to the LINE OUT (R-AUDIO-L) jacks using the audio/video cable.
* See “Hooking Up the Player” on page 15.
b
When you connect the player and TV using a
component video cable, disconnect the video plug
(yellow) of the audio/video cable.
Connecting to component video jacks (Y, P
B
/C
B
, P
R
/C
R
)
Audio/video cable*
Component video
cable (not supplied)
(green) (red) (blue)
: Signal flow
Match the colour of the plug to
that of the jack.
Blu-ray Disc/DVD player
TV
Match the colour of the plug to
that of the jack.
(green) (red) (blue) (red) (white)
(red) (white)
,continued
