ENFORCER Video, Power and Data Balun with Voltage Booster
2 SECO-LARM U.S.A., Inc.

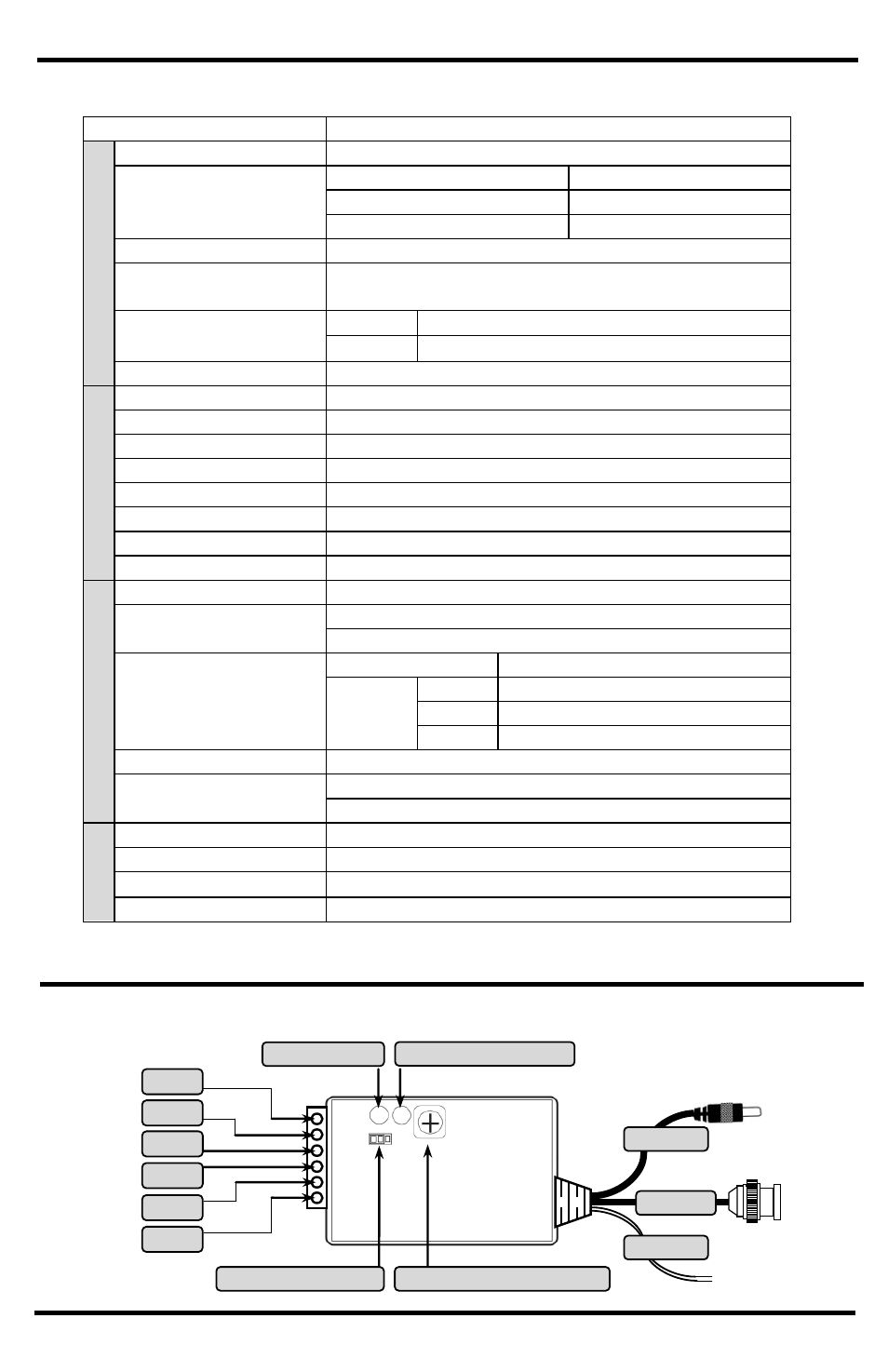

Figure 1: Video, Power and Data Balun with Voltage Booster Detail
Power +
Power –
Video +
Video –
Data +
Data –
Voltage selection jumper Adjustable output voltage knob
NOTE: The VPD balun with voltage booster’s efficiency rating is 85%. For more information see “Voltage
Booster Efficiency Rate” on page 3.
VDC out
Video in
Data out
Dual-colored output LED Power input LED
EVT-PB1-H05Q
Vo
ltage B
oo
st
er
Output voltage 5/12/24VDC selectable by jumper (default 12VDC)
Operating voltages
Input voltage Regulated output voltage
7~12VDC/VAC 12VDC
12~24VDC/VAC 24VDC
Output current 500mA @ 5/12/24 VDC
Voltage input LED
indicator
Green
Voltage output LED
indicator Red 5/12VDC
Blue 24VDC
Current protection PTC 500mA
Video
Range 2,000’ (610m) B/W, 1,300’ Color (400m)
Video format RS170, NTSC, PAL, SECAM, CCIR
Maximum input 1vp~p
Insertion loss < 2dB per pair from DC ~ 5 Mhz
Return loss >-15dB from DC ~ 5 Mhz
Common mode rejection 60dB, 15KHz~5MHz
Frequency response DC ~ 5 Mhz
Power No power required for video
Connecti
ons
Wire type UTP (unshielded twisted pair)
Wire category
20 - 24 AWG @ screwless terminal blocks
CAT2 or better, CAT5 ideal, CAT6 improves range
Connectors
In Removable terminal block
Out
Video Pigtail BNC
Power Pigtail DC plug (center pin positive)
Data
Wire
Attenuation DC ~ 5 Mhz, 1.5 dB max
Impedance
Coax, male BNC: 75 Ohms@ 1 MHz
Terminal block: 100 Ohms @ 1 MHz
Other
Dimensions
3 1 /
4
" x 2 9 /
16
" x 3 /
4
" (81 x 65 x 20mm)
Humidity range 0 ~ 95%
Temperature Range 14°~165°F (-10°~74°C)
Case ABS Plastic
Specifications:
