CPD-E220/E215E/E220E
2-3

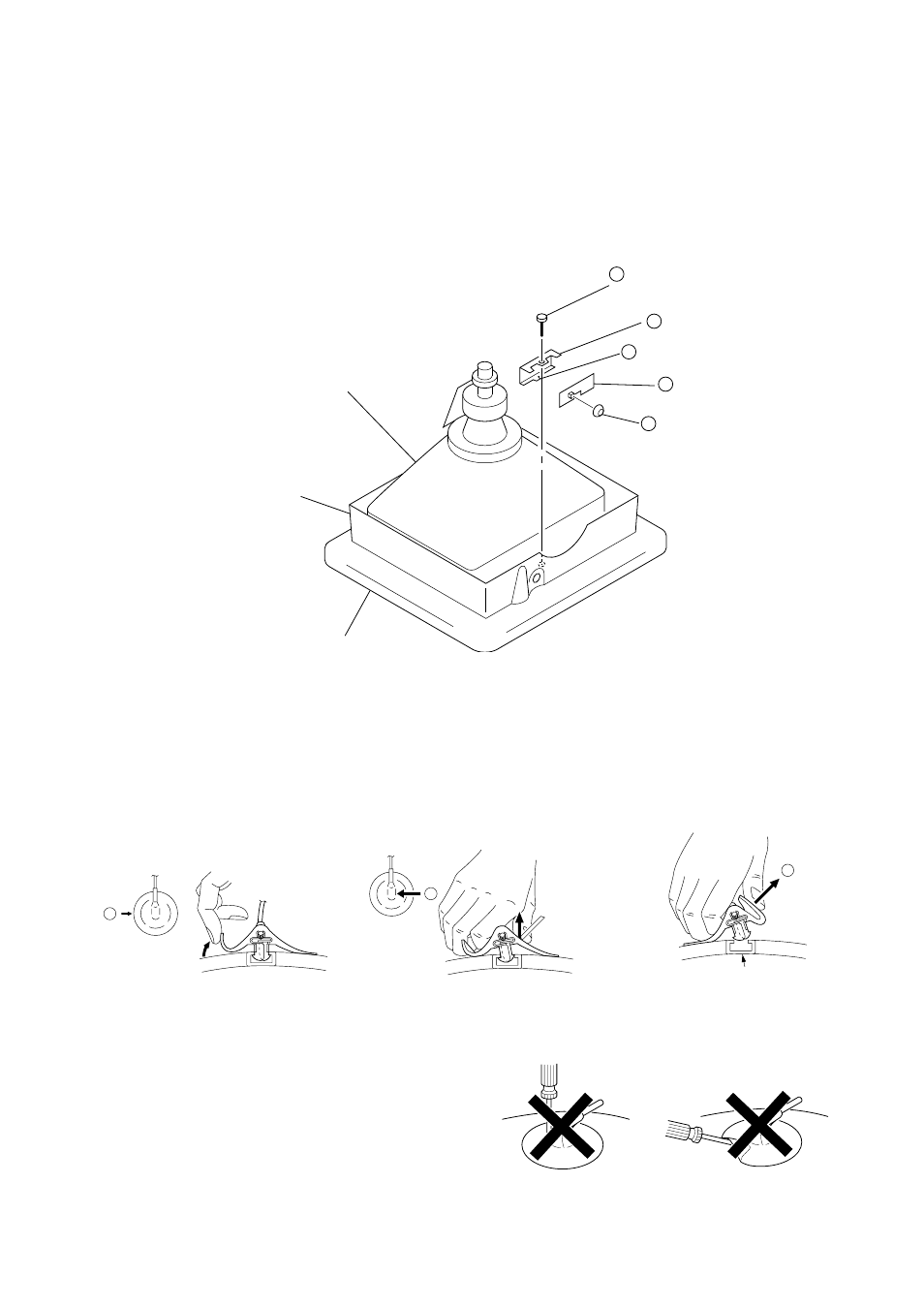

2-5. H BOARD REMOVAL
3 When one side of the rubber cap is
separated from the anode button, the
anode-cap can be removed by turning
up the rubber cap and pulling up it in the
direction of the arrow
C .
•
HOW TO HANDLE AN ANODE-CAP
1 Don’t scratch the surface of anode-caps with sharp shaped
material!
2 Don’t press the rubber hardly not to damage inside of anode-
caps!
A material fitting called as shatter-hook terminal is built in the
rubber.
3 Don’t turn the foot of rubber over hardly!
The shatter-hook terminal will stick out or damage the rubber.
•
REMOVAL OF ANODE-CAP
NOTE: Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon painted on the CRT, after
removing the anode.
•
REMOVING PROCEDURES
1 Turn up one side of the rubber cap in
the direction indicated by the arrow
A .
2 Using a thumb pull up the rubber cap
firmly in the direction indicated by the
arrow
B .
a
b
c
Anode Button
H board
H bracket
4
Menu button
Cussion
Bezel assembly
Picture tube
5
Claw 3
Screw
(+BVTP 4 x 16) 1
2
