COLOR IR CAMERA User’s Manual 19 COLOR IR CAMERA User’s Manual 18
Operating Your Camera
Settings Menu
SETUP menu
LENS • DC
SHUTTER
• - - - - • FLK
(condition and speed control)
WHITE BALANCE control • ATW • AWC • MANUAL
BACKLIGHT • OFF • LOW • MIDDLE
(Backlight compensation) • HIGH
AGC (Auto Gain control) • OFF • NORMAL • HIGH
SSNR • OFF • LOW • MIDDLE
(Samsung super noise reduction) • HIGH
SENS-UP (Low illuminance) • OFF • AUTO
• CAMERA ID • DAYNIGHT
• MOTION DET • PRIVACY
SPECIAL • COMM ADJ • IMAGE ADJ
• IRMODE • RESET
• RETURN
EXIT
Settings can be made using the RS-485 communication.
Please refer 14 pages (RS-485 communication control) and connect to the RS-
485 control terminal(TRX+, TRX-)

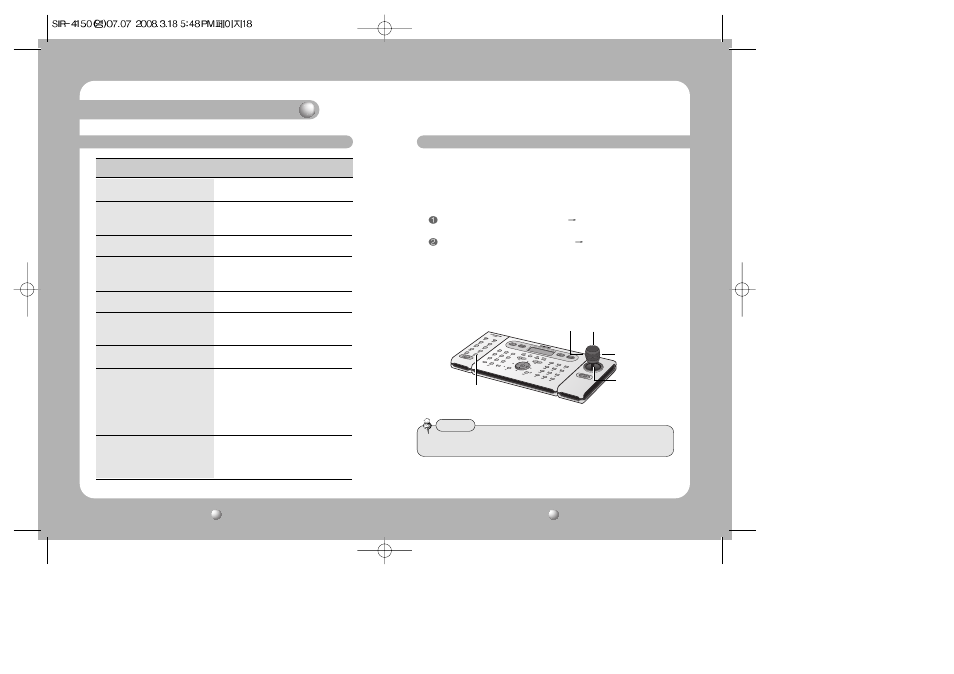

1. When use SCC-3100A PELCO-D Protocol setting method
< SETUP SYSTEM MENU >
PTZ selection : PTZ SETUP2 selection 1)MODEL:PTZ ID, PELCO-D
Protocol selection.
CONTROLLER selection : SERIAL selection 1. BAUD, 2. DATA, 3. STOP
BIT, 4. PARITY setting
* OSD button : Display OSD menu on the monitor or there is a sub-menu which
can be selected by pressing OSD button.
* JOYSTICK : It can move menu cursor by upside, downward, the left side and
the right side . Joystick do Up/Down/Right/Left button functions
according to 4 directions that move.
OSD SETUP BUTTON
RIGHT BUTTON
DOWN BUTTON
UP BUTTON LEFT BUTTON
• Please set RS-485 communication setting of controller and camera equally.
Notes
