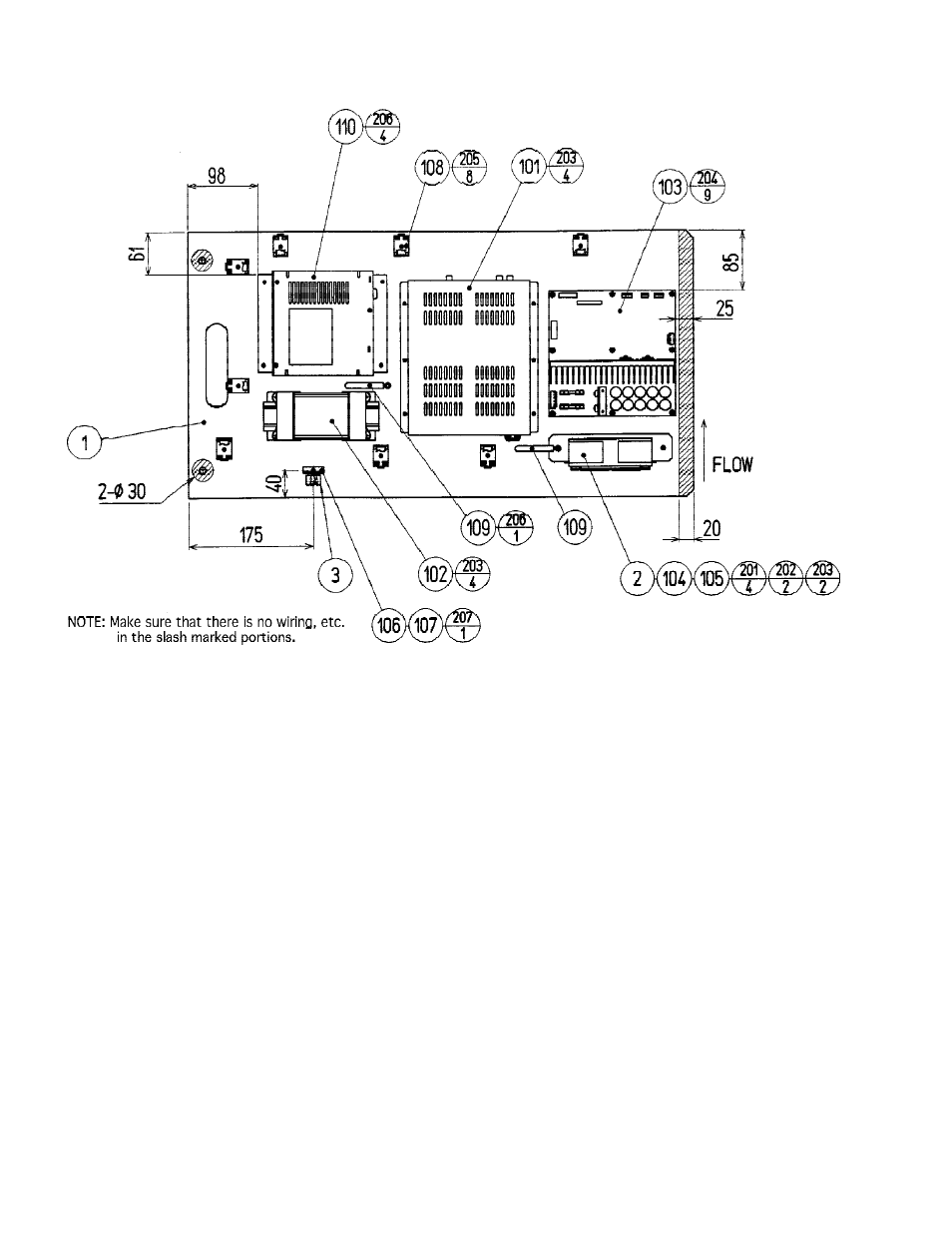

ASSY AMP BOARD (PTR1-4200)
ITEM NO.
PART NO.
DESCRIPTION
1
PTR-4201
AMP BD BASE
2
DRT-4502
FAN MOTOR BRKT
3
421-7914-250630
STICKER AC 250V 6.3A
101
601-10369
STEREO PWR AMP 47
102
560-5419-V
XFMR 100V 23V 9.6A X 2
103
838-13723
WOOFER AMP 50W X 2
104
260-0011-02
AXIAL FLOW FAN AC100V 50-60HZ
105
601-8543
FAN GUARD
106
514-5086-6300
FUSE S.B 6.25A 250V HBC CE
107
514-5084
FUSE HOLDER F-60B W/F-60
110
400-5397-01
SW REGU FOR JVS VA
112
310-5029-D20
SUMITUBE F D 20 MM
201
000-P00312-W
M SCR PH W/FS M3 X 12
202
050-F00300
FLG NUT M3
203
000-P00416-W
M SCR PH W/FS M4 X 16
204
011-P00325
TAP SCR PH 3 X 25
205
011-F00312
TAP SCR FH 3 X 12
206
011-T03512
TAP SCR TH 3.5 X 12
207
011-F00312
TAP SCR #1 FH 3 X 12
