• Space diversity reception system for
stable RF reception
• Angle-adjustable antennas to help
eliminate signal dropout. This feature
additionally provides mounting-position
flexibility when the portable tuner is
mounted on a camcorder.
• RF squelch function virtually eliminates
ambient noise and unwanted signals
from other wireless microphone systems
• An LCD screen provides extensive
information, including the operating channel
number and its frequency in MHz, audio-
output status, RF-input level, tuner-battery
status, and accumulated operating time
• A green LED indicator illuminates when
RF-input signals are appropriately received
• Approximately six hours of continuous
operation with two AA-size alkaline
(LR6) batteries
• Stereo mini jack with monitor-volume control
• Supplied shoe-mount adaptor enables
easy mounting on Sony camcorders.
A microphone-stand adaptor, screw
adaptor, belt clip and two output cables
(3-pole mini-plug/XLR-type, 3-pole mini-
plug/stereo mini-plug) are also
provided.

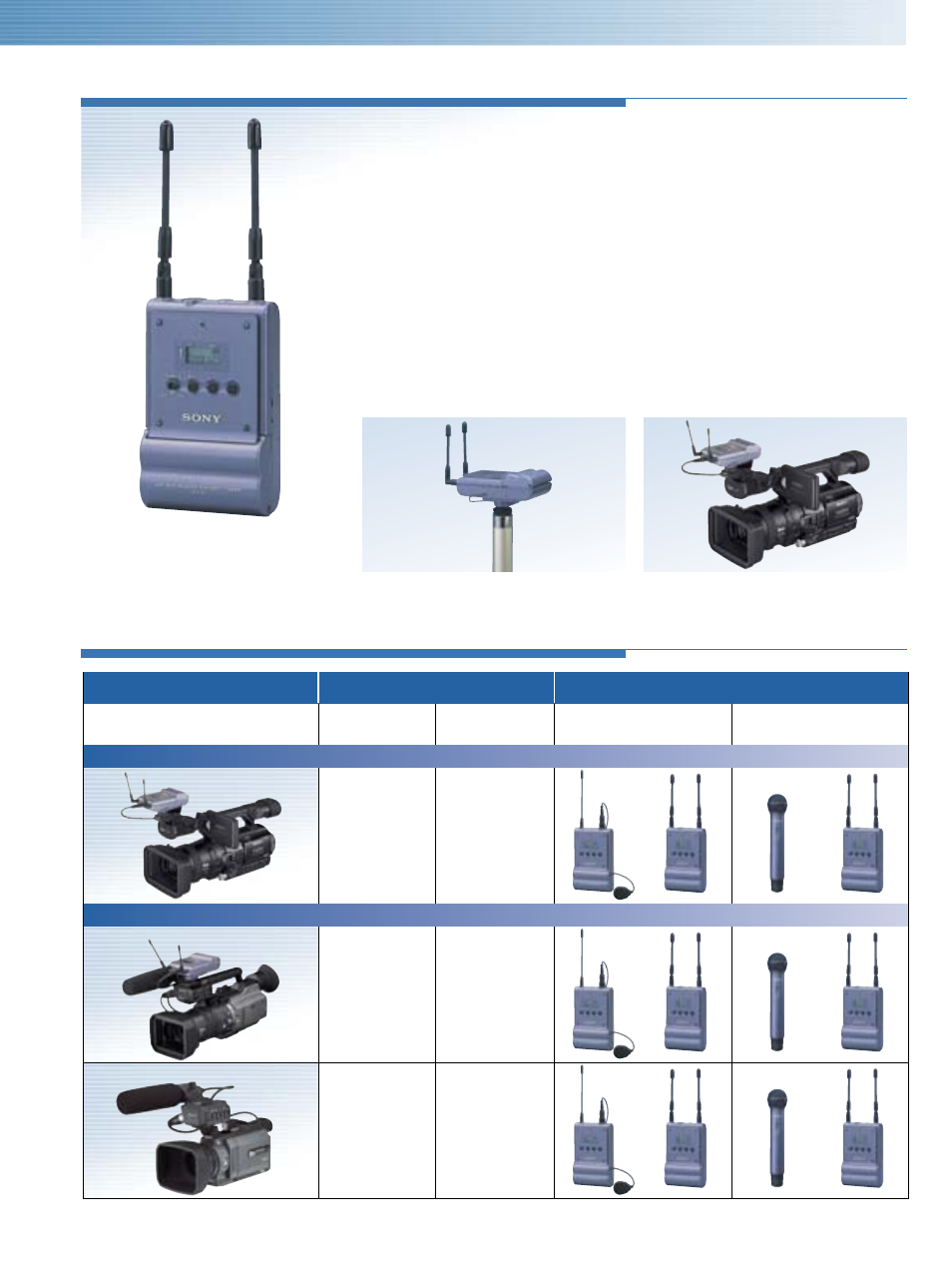

P o r t a b l e Tu n e r
Photo shows portable tuner mounted
on a microphone stand.
Photo shows portable tuner mounted
on a HVR-Z1 HDV™ camcorder.
UWP-C1 UWP-C2
Audio Input
Connector
Mic Input
Connector
XLR 3-pin (x2) —
HVR-Z1 Series
Camcorder/Tuner Interfaces Applicable Wireless Microphone Tuners
HDCAM Camcorders HDV Camcorder
XLR 3-pin (x2) —
DSR-PD170/PD170P
XLR 3-pin (x2)
Stereo
mini-jack
(x1)
DSR-PDX10/PDX10P
HDCAM Camcorders DVCAM™ Camcorders
W i r e l e s s M i c r o p h o n e Tu n e r a n d C a m c o r d e r C o m b i n a t i o n s
