A jammed nail must be cleared before
using the nailer again.
To clear a jammed nail from the dis-
charge area, do these steps:
1. DISCONNECT NAILER FROM THE AIR
SUPPLY!
2. Pull back and latch the magazine
pusher.
3. Remove the nail stick from the
magazine.
4. Access the nailer nose by removing
the rubber nose tip, squeezing the
nose release mechanism, and opening
the nose cover (see
Figure 6).
Clearing Jammed Nails
5. Remove the jammed nail with a
tool that will fit in the slot on the
underside of the nose, like needle
nose pliers.
6. Throw the damaged nail away and
insert a new nail stick that only
contains clean, undamaged nails. DO
NOT use dirty or damaged nails!
7. Close the nose cover, and release
the catch lever so that the magazine
pusher slides towards the front.

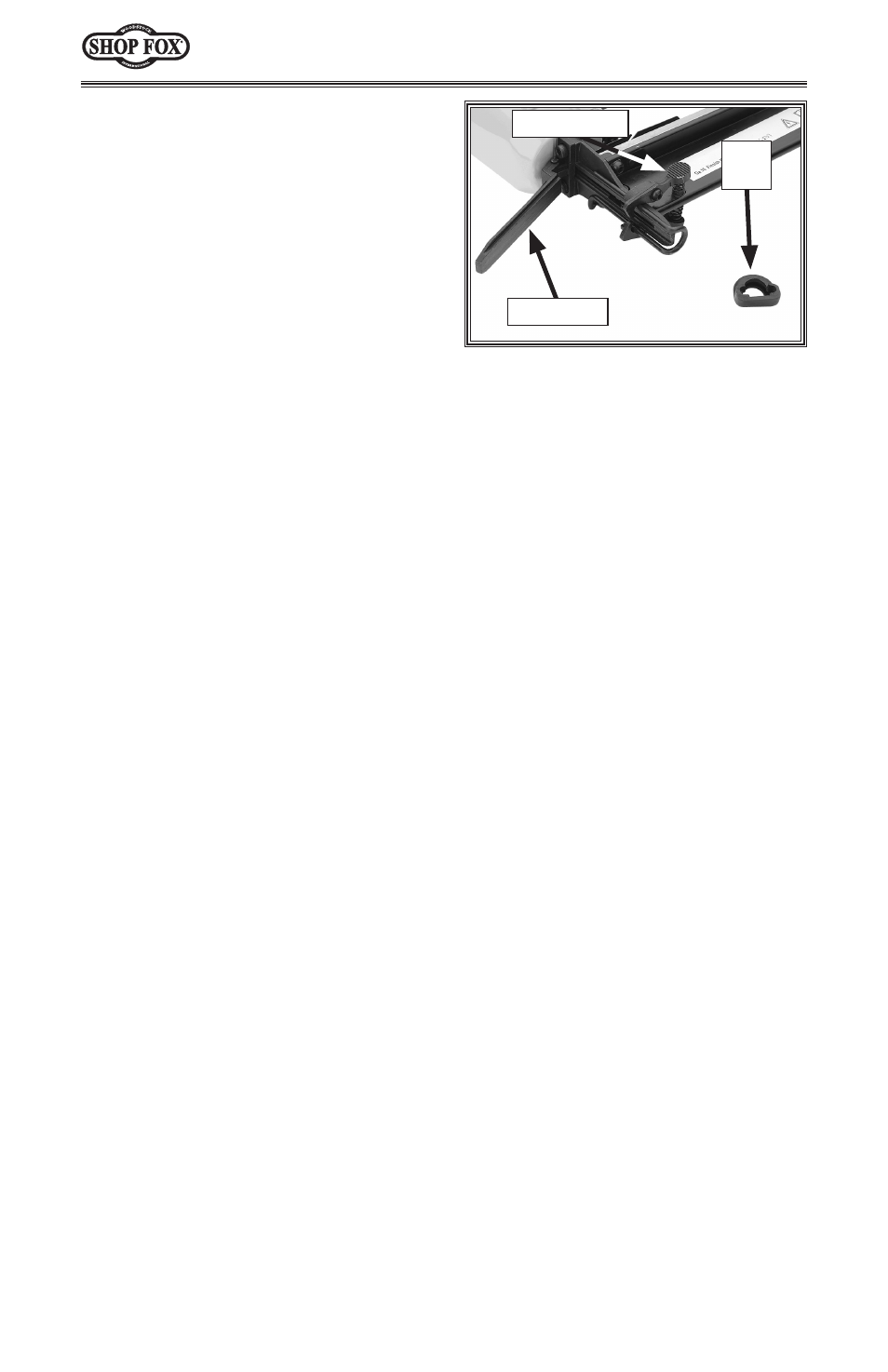

Figure 6. Nose opened to clear jam.
Nose Cover
Nose Release
Nose
Tip
