Woodstock W1777 - Manual (Page 10)

Model W1777 2 1 ⁄
2
" 16 Gauge Finish Nailer
-8-
OPERATIONS
Loading
When replacing nails in your Model
W1777, follow these guidelines:
Gauge: ........................................16
Length: ..............................1
1 ⁄
4
"–2 1 ⁄
2
"
Capacity: .....................................74
To load your nailer, do these steps:
1. DISCONNECT NAILER FROM THE AIR
SUPPLY!
2. Grip the nailer firmly, and pull the
magazine pusher back until the catch
lever engages, as shown in
Figure 2.
3. Insert a strip of nails, pointed-end
down, into the magazine, as shown in
Figure 3.
If you have not read the safety
instructions in this manual, do not
operate the nailer.
Before you operate your nailer, place five
to six drops of the included oil into the
quick connect fitting where the nailer
connects to the air supply.
To operate your nailer, do these steps:
1. Connect the air supply to the quick
connect fitting.
2. To test for proper nail penetration,
hold the nailer perpendicular to the
surface of a piece of clean scrap
wood that is thick enough for the
length of nails you have loaded.
Operating
4. Slide the nails all the way down to
the nose of the nailer.
5. Release the magazine pusher by
pulling back on the pusher and
pressing in on the catch lever.

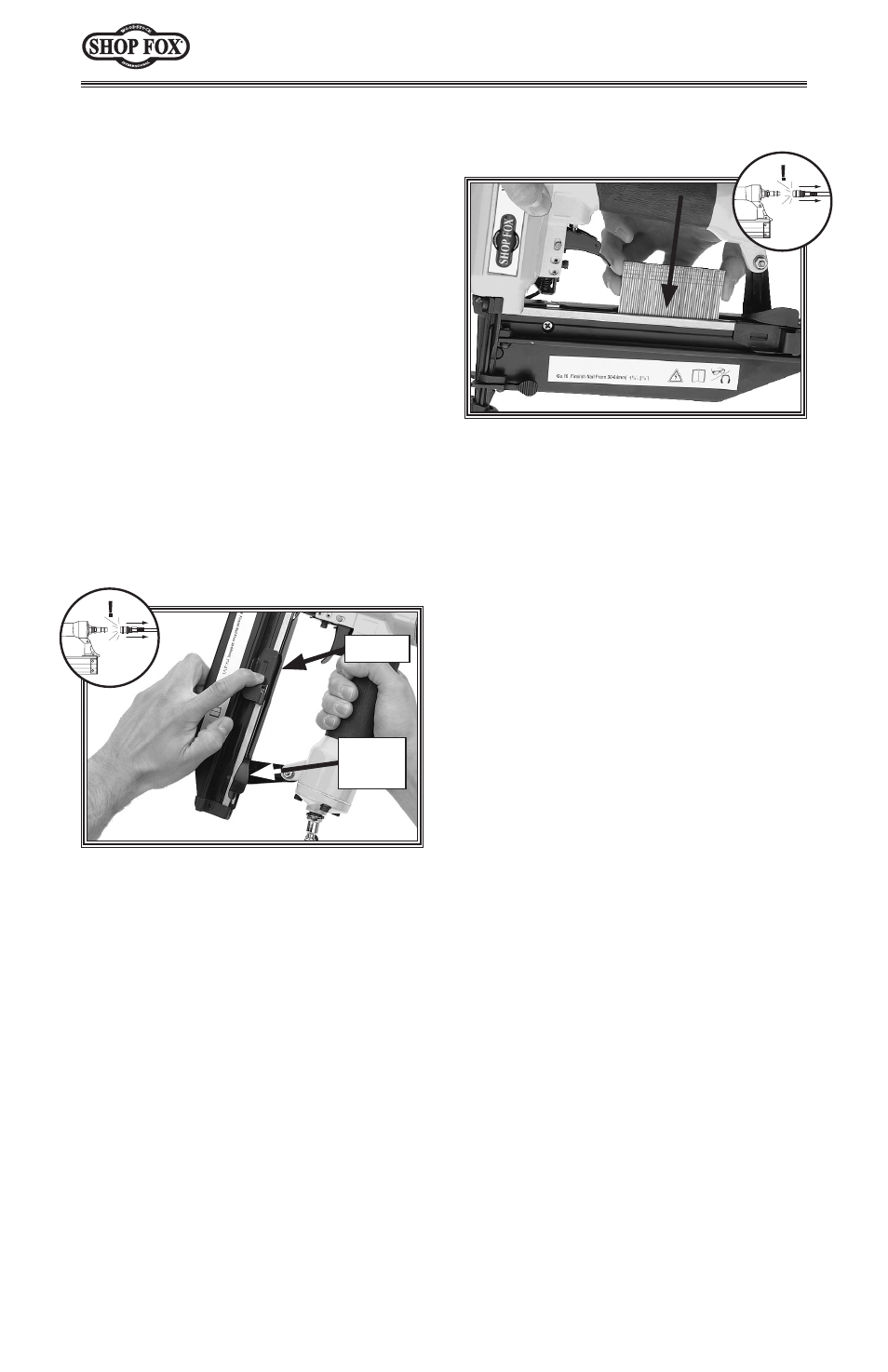

Figure 3. Loading nails into magazine.
Figure 2. Sliding magazine pusher back to
engage catch lever.
Catch
Lever
Pusher
