www.smoothfitness.com 19
ASSEMBLY

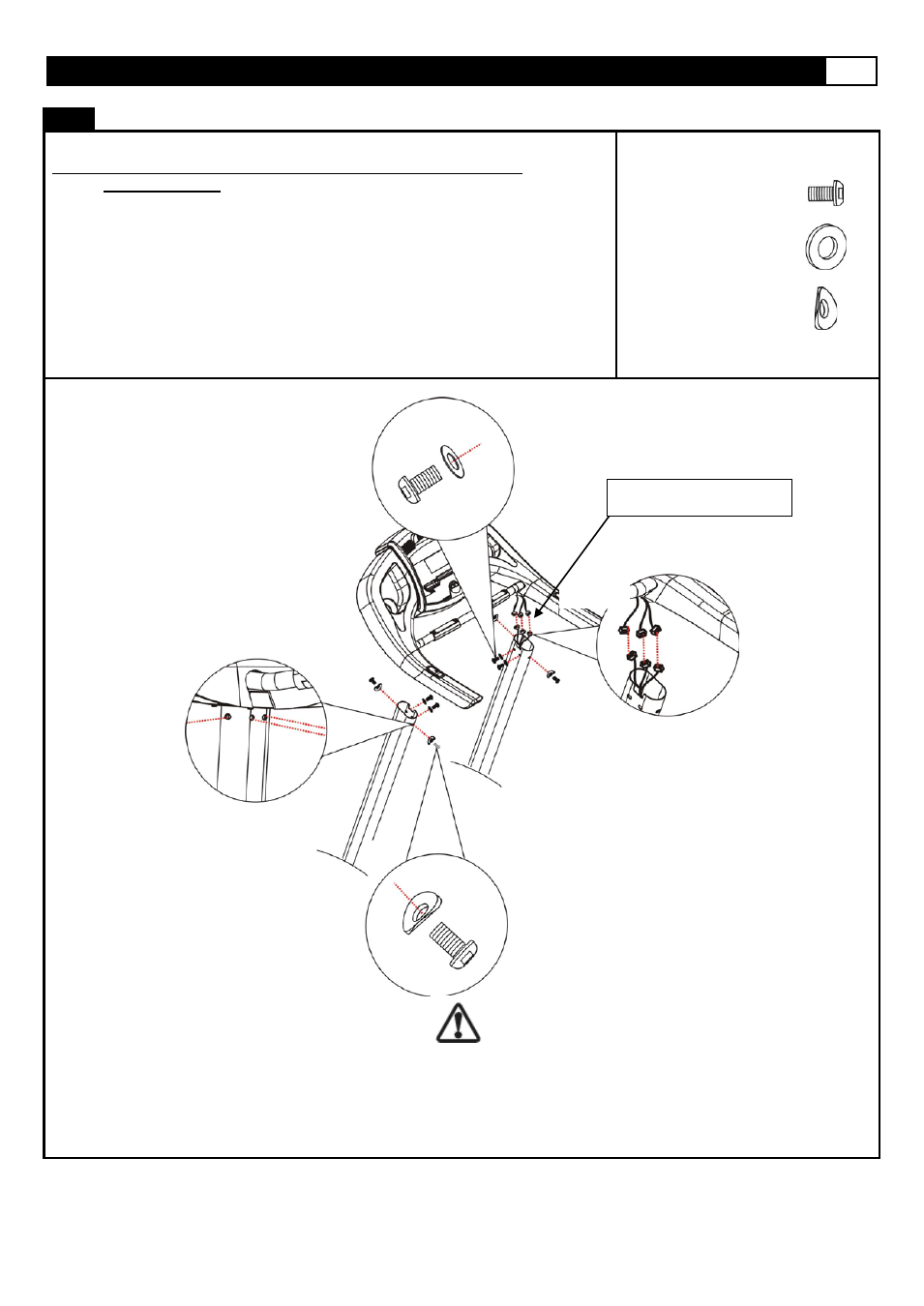

STEP 5: Attach the Console to the Left and Right Uprights
Make sure all wires are recessed into the frame. DO NOT trap or
pinch the wires.
1). Connect the Upper Console Wires from the console set to the Lower Console
Wires in the right upright, each connector are different sizes so each connector
will only connect to its proper match. Place the excess wire and the connectors
into right upright.
2). Place the entire console set onto the uprights, and secure the left side using
4 x M8x15mm Bolt (303) with 2 x M8 Washer (305) and 2 x M8 Curve Washer
(304).
3). Repeat the above process for the Right side.
4). Fully tighten all bolts from steps 2, 3 and 4.
303 X8
305 X4
304 X4
Tighten all bolts and fasteners now
206
134
303
305
304
303
242
Caution pinch point
