Sanyo SC-JS2B User Manual
Page 4
- 4 -
For Parts or Service Contact
SANYO FISHER SERVICE CORPORATION.
21605 Plummer Street,
Chatsworth, CA 91311

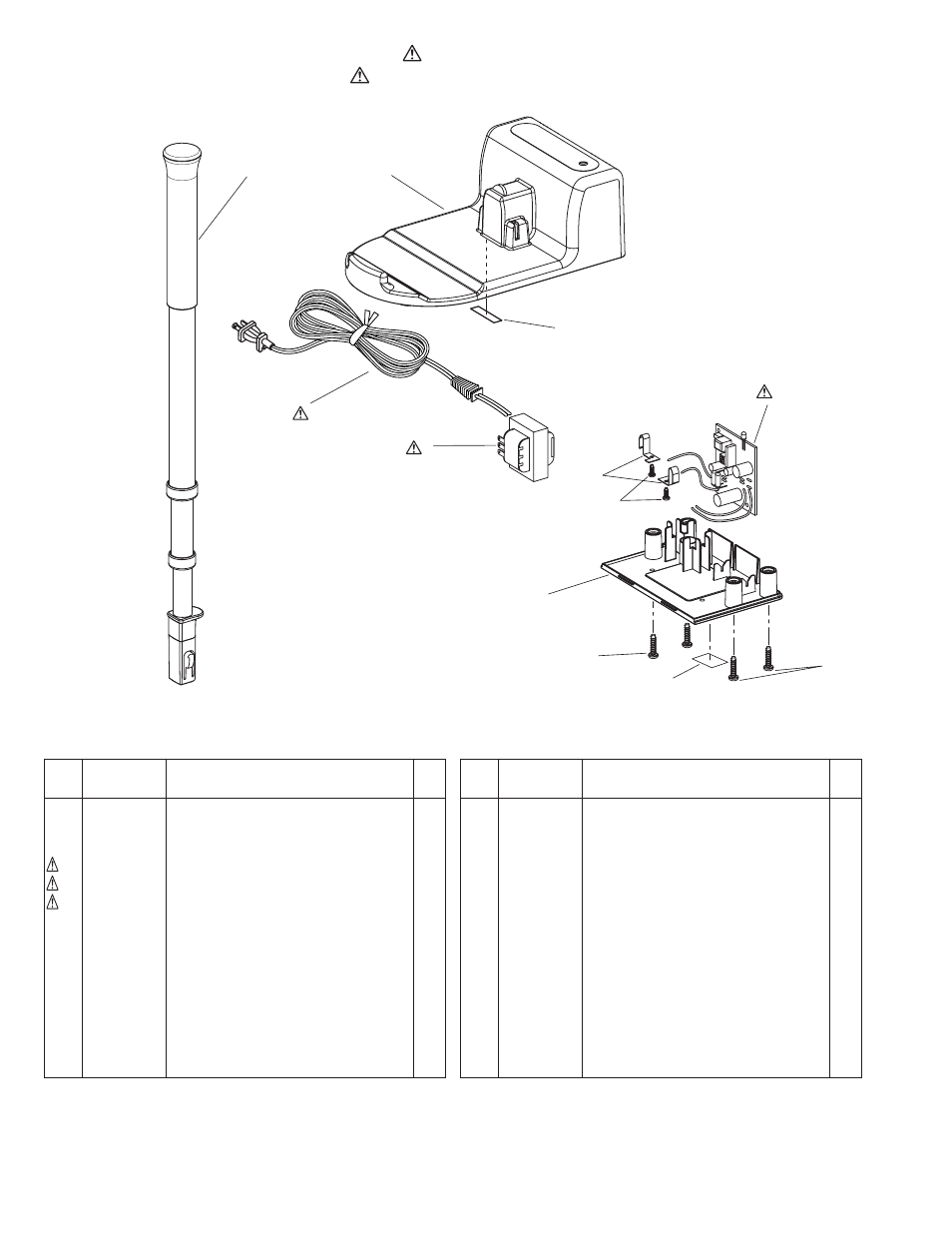

Exploded View
(Attachment)
NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
Parts List
SC-JS2B
(U.S.A.)
Sep./2002 Printed in Japan
1
2
3
4
5
6
7
8
9
10
10
11
Key
No.
Key
No.
Parts No.
Description
Q'ty
Parts No.
Description
Q'ty
COLOR CODE:NN-09(GRAY)
1 663 006 3927 GRIP PIPE ASSEMBLY
1
2 663 005 3164 CHARGE STAND UPPER (NN-09)
1
3 663 005 3331 LABEL B
1
4 663 006 3934 POWER CORD (U2)
1
5 663 006 3941 TRANSFOMER
1
6 663 005 3201 CONTROL CIRCUIT ASSEMBLY
1
7 663 005 3218 CONTACT B
2
8 663 000 2872 SCREW (3X10)
2
9 663 005 3232 CHARGE STAND LOWER (NN-09)
1
10 663 005 3249 SCREW (4X16)
4
11 663 005 3362 NAME PLATE
1
663 006 3958 INSTRUCTION MANUAL
1
