Removing the Spare Tire
The compact spare tire is located
under the vehicle, in front of the rear
bumper. See Compact Spare Tire
on page 5-83 for more information
about the compact spare.

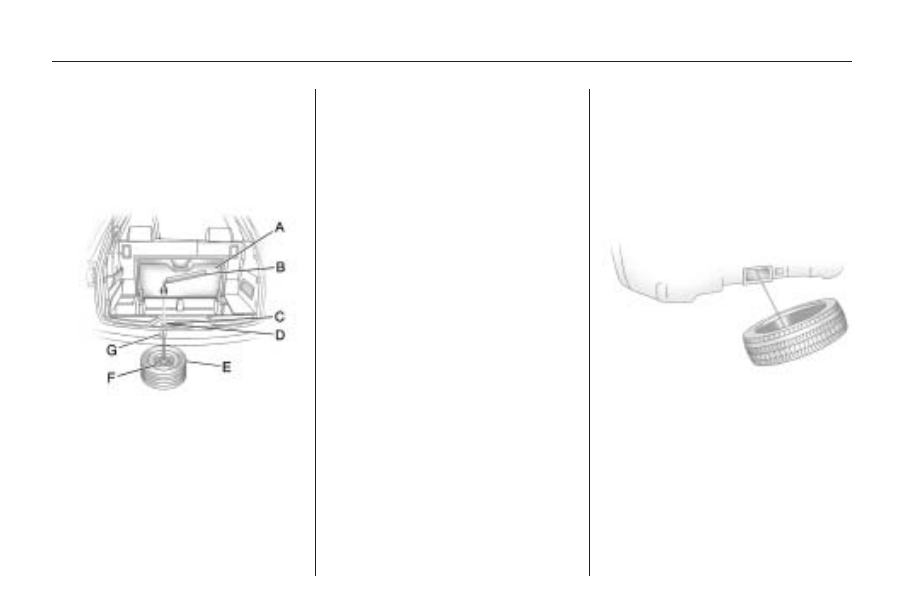

A. Rear Convenience Center
B. Lug Wrench
C. Storage Compartment Cap Hole
D. Hoist Shaft
E. Compact Spare Tire
F. Retainer
G. Hoist Shaft Assembly
1. Open the storage compartment
door of the convenience center
that is nearest the liftgate
and remove the cap on the
bottom of the storage
compartment.
2. Open the carpet cutout that is
located through the hole of the
storage compartment.
3. Attach the lug wrench into the
hoist shaft.
4. Turn the lug wrench
counterclockwise to lower
the spare tire to the ground.
Continue turning the wrench
until the spare tire can be pulled
out from under the vehicle.
5-72 Service and Appearance Care
