W1755 6" Parallelogram Jointer

NOTICE

When ordering replacement parts, refer

to the parts list and diagram in the back

of the manual.

The following is a description of the items shipped with

the

SHOP FOX

Model W1755.

Note: If you can't find an item on this list, check the

mounting location on the machine or examine the pack-

aging materials carefully. Occasionally we pre-install cer-

tain components for safer shipping.

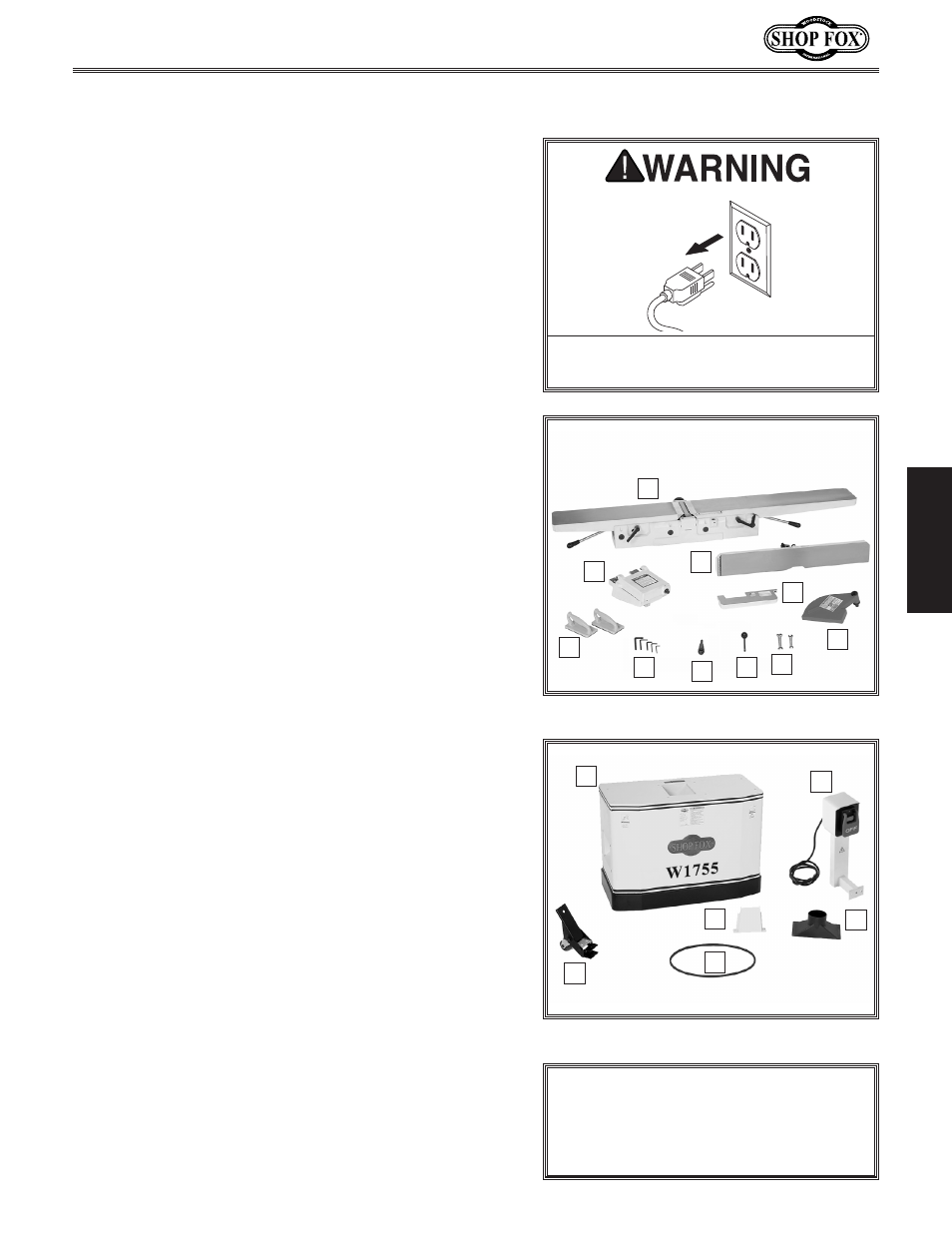

Box 1: (Figure 7)

Qty

A. Jointer Assembly ..........................................1

B. Carriage .....................................................1

C. Fence ........................................................1

D. Extension Table ............................................1

E. Push Blocks .................................................2

F. Cutterhead Guard .........................................1

G. Hex Wrenches 2.5, 4, 5, 6, 8mm ................ 1 Each

H. Handle .......................................................1

I. Fence Tilt Lever ...........................................1

J. Open-end Wrench 8/10, 12/14mm .............. 1 Each

K. Knife Setting Jig (not shown) ............................1

Box 2: (Figure 8)

Qty

L. Stand Assembly w/Motor .................................1

M. Pedestal Switch ............................................1

N. Wheel Assembly ...........................................1

O. Belt Guard ..................................................1

P. Dust Port ....................................................1

Q. V-Belt ........................................................1

Assembly Fasteners

Qty

• Hex Bolt M8-1.25 x 50 (Wheel/Stand) .................1

• Flat Washer 8mm (Wheel/Stand) .......................1

• Hex Bolts M10-1.5 x 55 (Wheel/Stand) ................2

• Flat Washers 10mm (Wheel/Stand) ....................2

• Hex Nuts M10-1.5 (Wheel/Stand) .......................2

• Cap Screws M8-1.25 x 25 (Jointer/Stand) .............4

• Lock Washers 8mm (Jointer/Stand) ....................4

• Flange Bolts M6-1 x 12 (Belt Guard) ...................2

• Hex Nuts M6-1 (Belt Guard) .............................2

• Flat Washers 6mm (Belt Guard) .........................2

• Cap Screws M6-1 x 20 (Extension Table) ..............2

• Cap Screw M10-1.5 x 30 (Carriage) .....................1

• Cap Screw M10-1.5 x 50 (Carriage) .....................1

• Flat Washers 10mm (Carriage) ..........................2

• Cap Screws M8-1.25 x 30 (Fence) .......................2

• Cap Screws M10-1.5 x 25 (Pedestal) ...................2

• Lock Washers 10mm (Pedestal) .........................2

• Flat Washers 10mm (Pedestal) ..........................2

• Phillips Screws M5-.8 x 16 (Dust Port) .................4

• Flat Washers 5mm (Dust Port) ..........................4

Inventory

Figure 8. Box 2 inventory.

Figure 7. Box 1 inventory.

Power must not be connected to

machine during setup!
